Structural Design and Process Pros & Cons Analysis of 6-Layer HDI PCB Stack-ups

I. Fundamentals of HDI PCBs

High Density Interconnect (HDI) PCBs represent a premium category within the printed circuit board industry. Their core technological identity lies in the use of advanced interconnection techniques, such as micro-vias and buried vias. HDI boards are characterized by high circuit routing density, superior space utilization, and enhanced integration, making them widely used in smart terminals, consumer electronics, and communication equipment.

According to general industry standards, an HDI board must simultaneously meet several key metrics: minimum line width/spacing ≤ 75/75 μm, minimum via diameter ≤ 0.15 mm, the presence of blind or buried vias, minimum pad size ≤ 400 μm, and pad density > 20/cm². Compared to conventional PCBs, HDI boards demand significantly higher precision in both manufacturing processes and structural design. They are a critical substrate for achieving miniaturization and high performance in advanced electronic devices.

II. The Core Value of 6-Layer HDI Stack-up Design

The stack-up design is a pivotal phase in the entire HDI PCB development cycle, as it fundamentally determines electrical performance, manufacturability, and cost competitiveness. A well-optimized stack-up scheme systematically enhances impedance control, signal integrity (SI), thermal management, and mechanical reliability. In today’s highly cost-competitive landscape of smart terminals and consumer electronics, the choice of stack-up directly impacts a product’s overall value proposition. For the most widely adopted 6-layer HDI boards, achieving an optimal balance among process complexity, performance tiers, and manufacturing costs has become a central challenge in PCB design optimization.

Currently, the mainstream stack-up solutions for 6-layer 1-step and 2-step HDI can be categorized into three primary types, each exhibiting distinct differences in process flow, manufacturing difficulty, and cost.

III. Detailed Analysis of Mainstream 6-Layer HDI Stack-up Structures

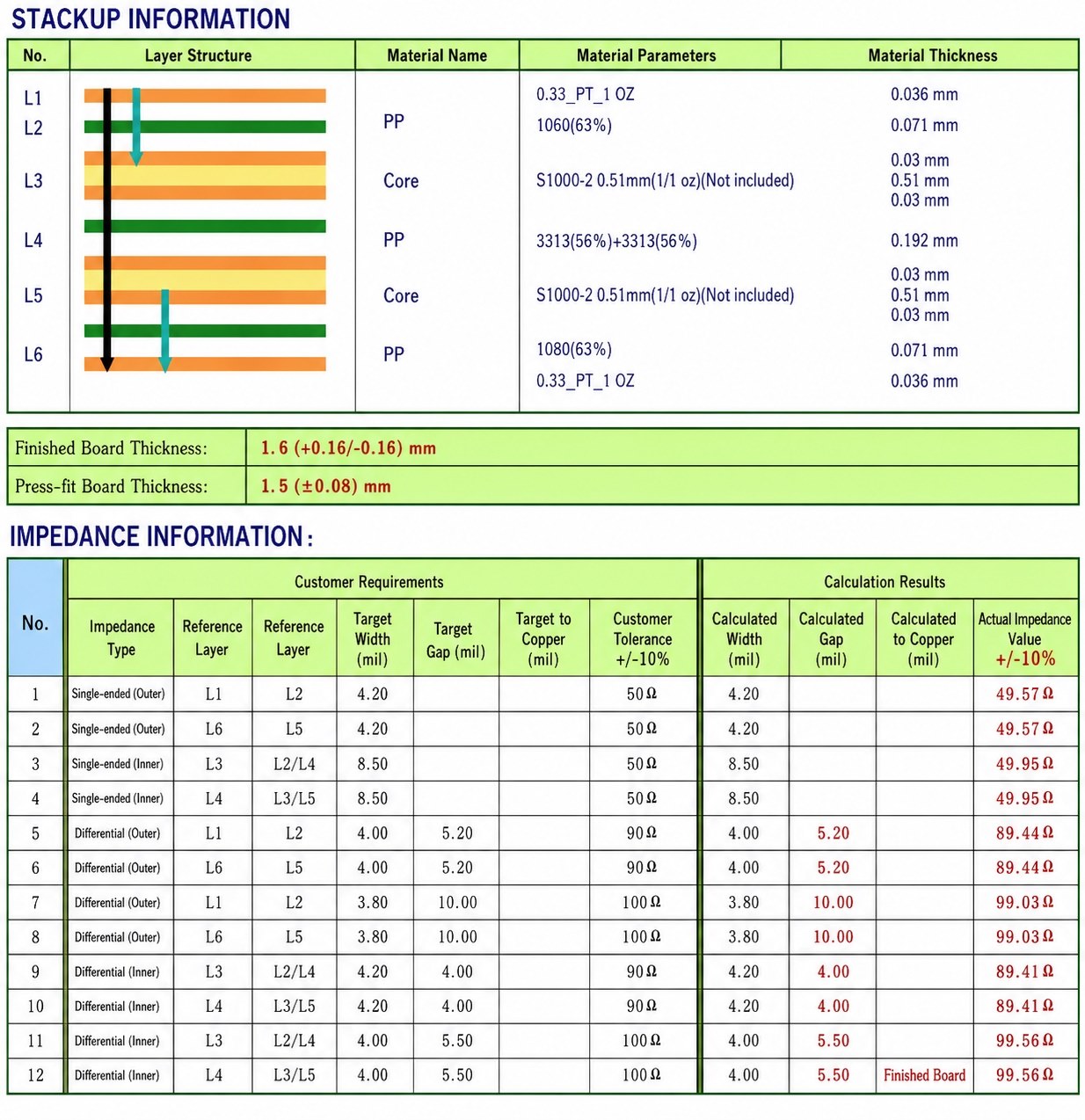

1. Simplified 6-Layer 1-Step HDI – Single Lamination (1+4+1 Structure)

This solution adopts a 1+4+1 stack-up architecture. The inner core board does not contain buried vias, and the entire board requires only a single lamination cycle. The manufacturing process is highly similar to that of standard 6-layer multilayer boards, with the addition of laser drilling for blind vias and subsequent copper plating/filling on the outer layers.

In terms of material construction, layers 2-3 and 4-5 are typically paired as two core boards, with outer layers comprising prepreg (PP) and copper foil. A single lamination step bonds the entire structure together, eliminating the need for multiple lamination cycles or buried via processing.

· Core Advantages: Low process barriers, high production yields, short lead times, and the lowest manufacturing cost among 6-layer HDI options, offering exceptional cost-effectiveness.

· Limitations: The absence of inner-layer buried vias means interlayer connections rely solely on surface blind vias and through-holes. This reduces routing flexibility compared to solutions with buried vias.

· Target Applications: General consumer electronics, conventional industrial control boards, and high-volume mass-production projects. This is the preferred choice for cost-sensitive designs.

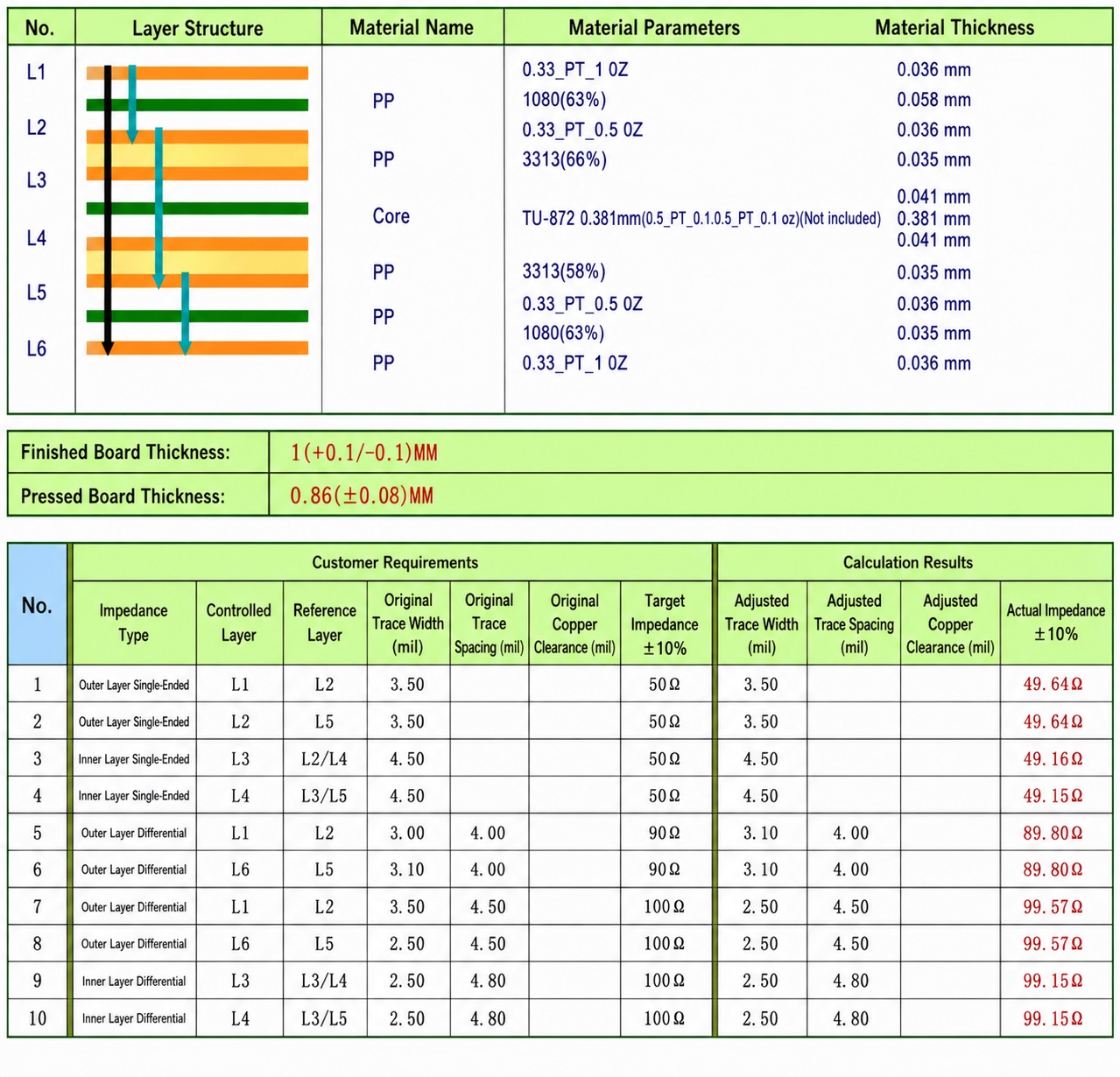

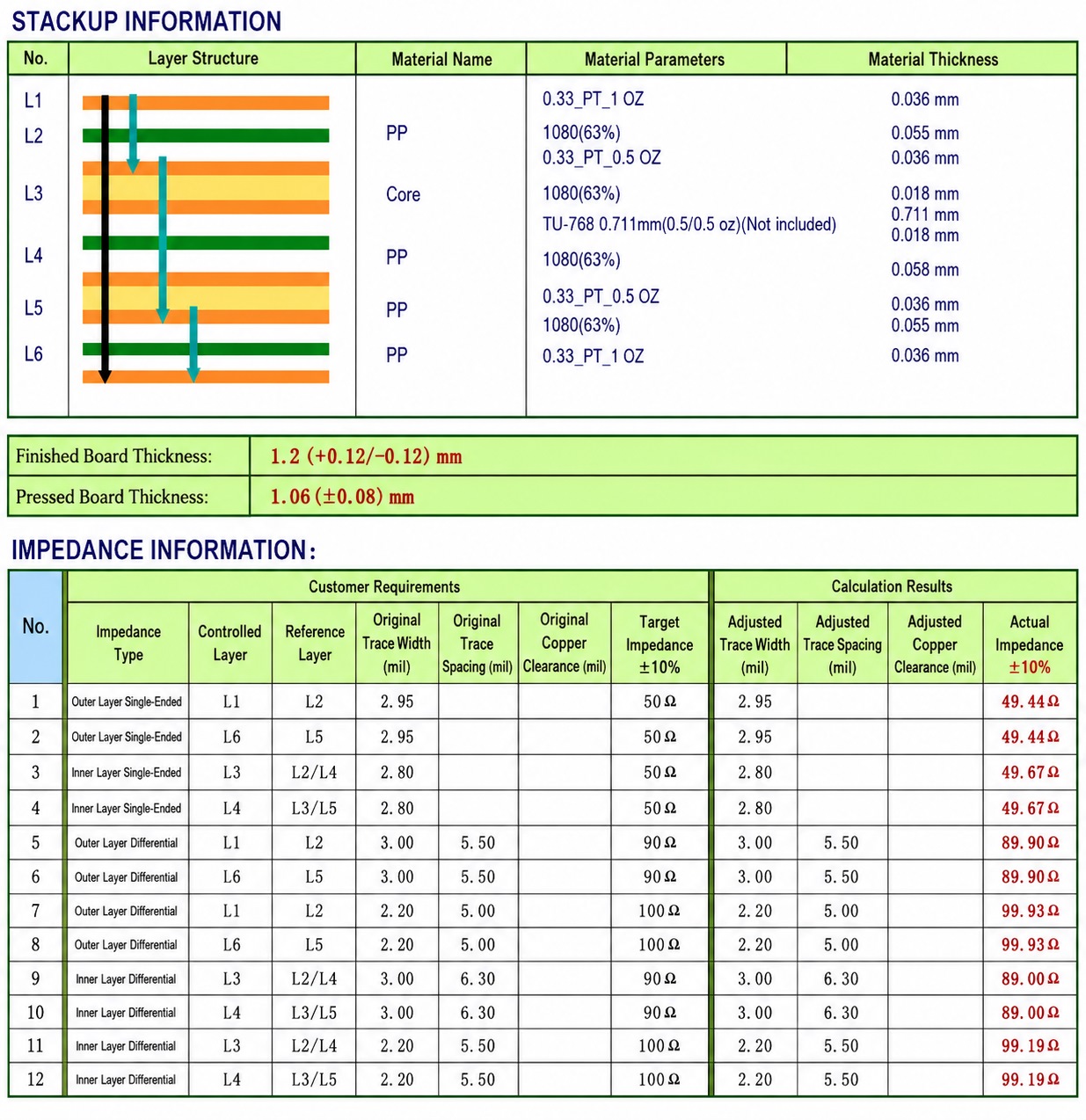

2. Standard 6-Layer 1-Step HDI – Double Lamination (1+4+1 Structure with Buried Vias)

This structure also adheres to the 1+N+1 (N=4) design rule with a 1+4+1 stack-up. However, its inner core boards integrate buried vias, necessitating a two-lamination cycle. The finished board features a composite network of both blind and buried vias, providing significantly superior routing density and interconnection stability compared to the simplified version.

· Core Advantages: The combined blind/buried via structure supports higher-density wiring. It ensures more stable signal transmission performance and benefits from mature, widely available manufacturing processes.

· Limitations: The additional lamination step increases the number of process sequences, extends production lead time, and raises manufacturing costs considerably. It also involves more process control points.

· Target Applications: Mid-to-high-end consumer electronics, small to medium-sized high-speed signal equipment, and conventional high-end products with specific density requirements.

· Design Optimization Tip: Where electrical and structural constraints permit, designers may consider replacing the standard 1-step HDI with buried vias with the simplified, buried-via-free version. This significantly reduces processing complexity and material costs without compromising fundamental performance—a common approach in cost-reduction design today.

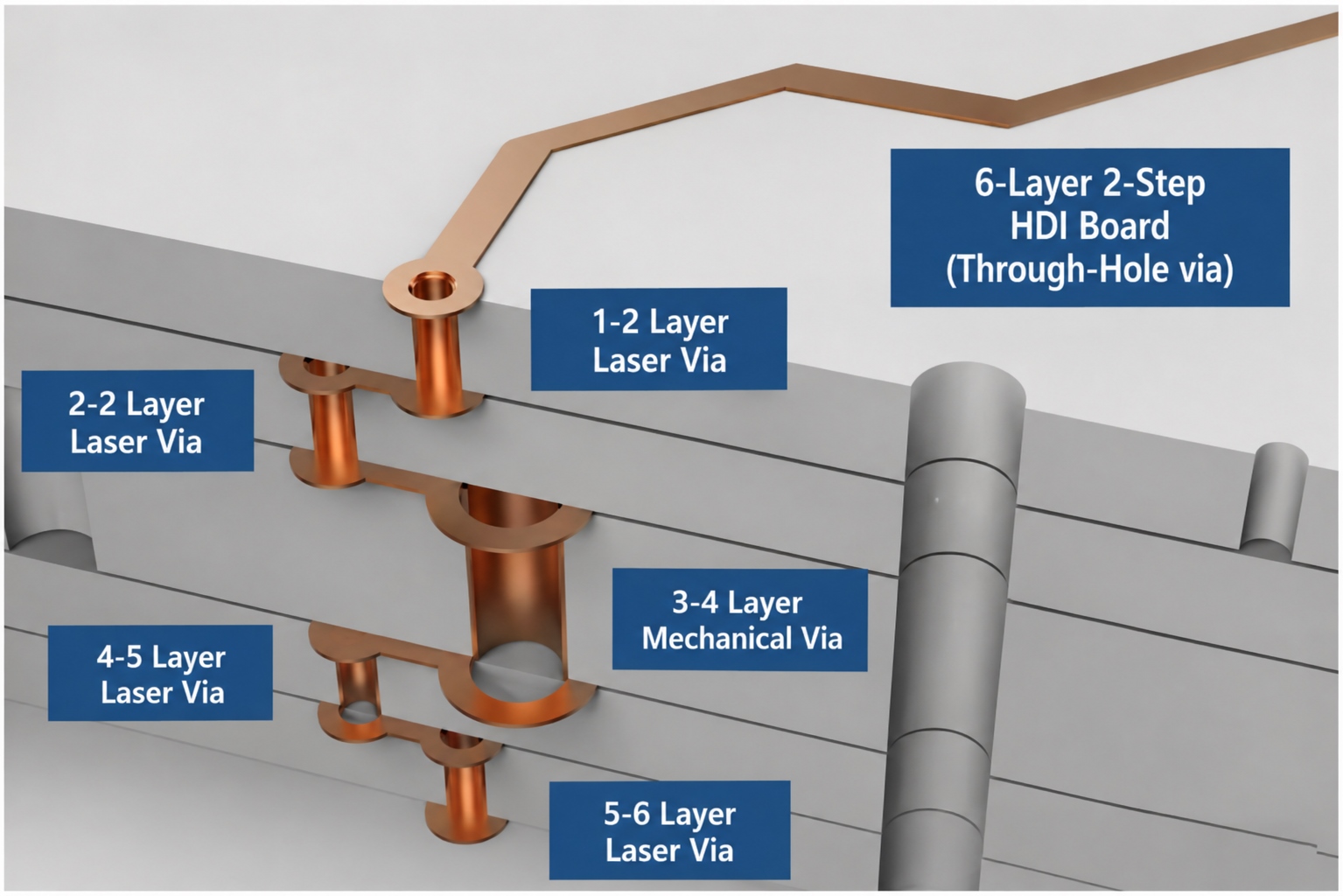

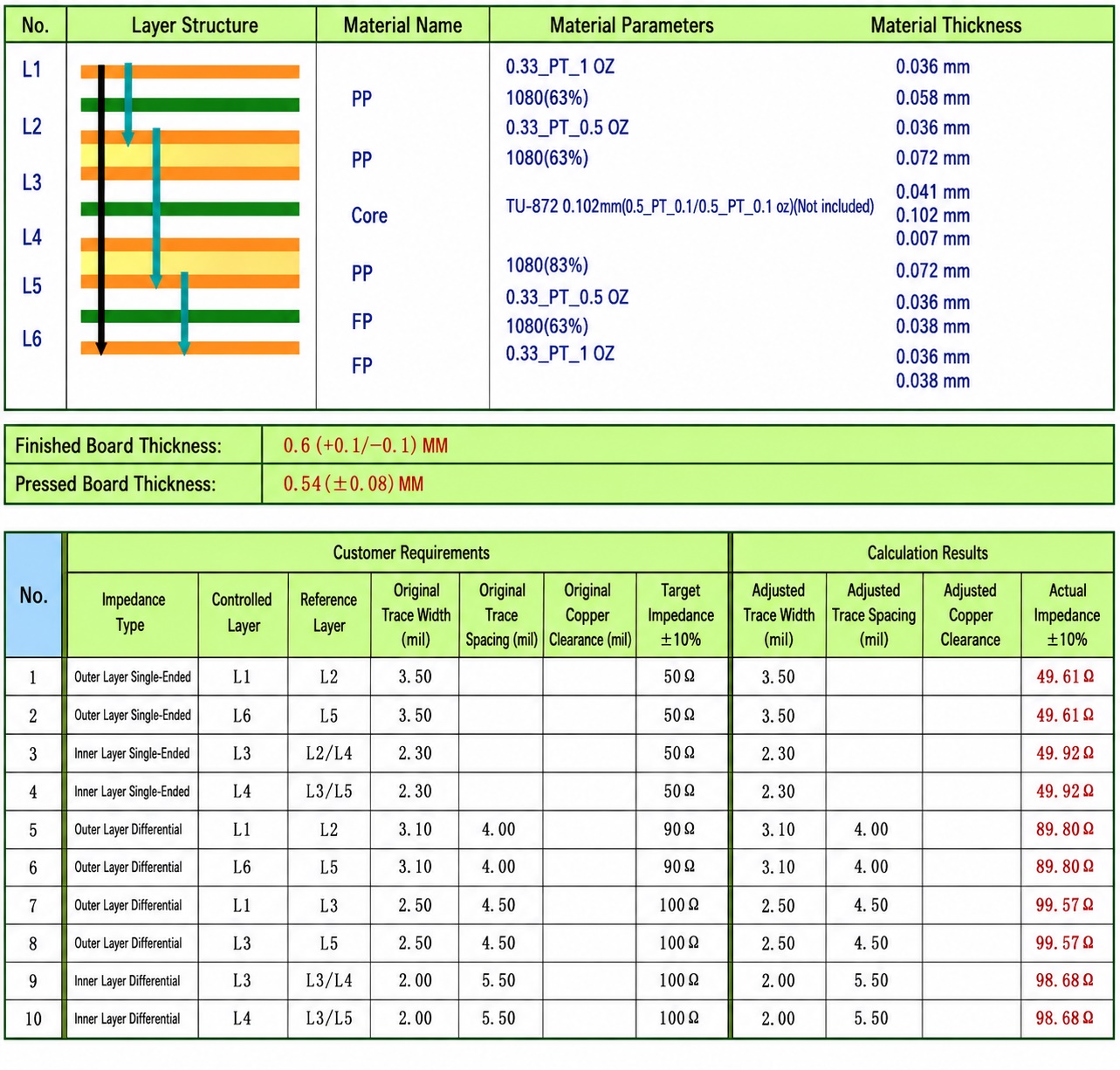

3. Non-Standard 6-Layer 2-Step HDI – Double Lamination with Cross-Layer Blind Vias (1+1+2+1+1 Structure)

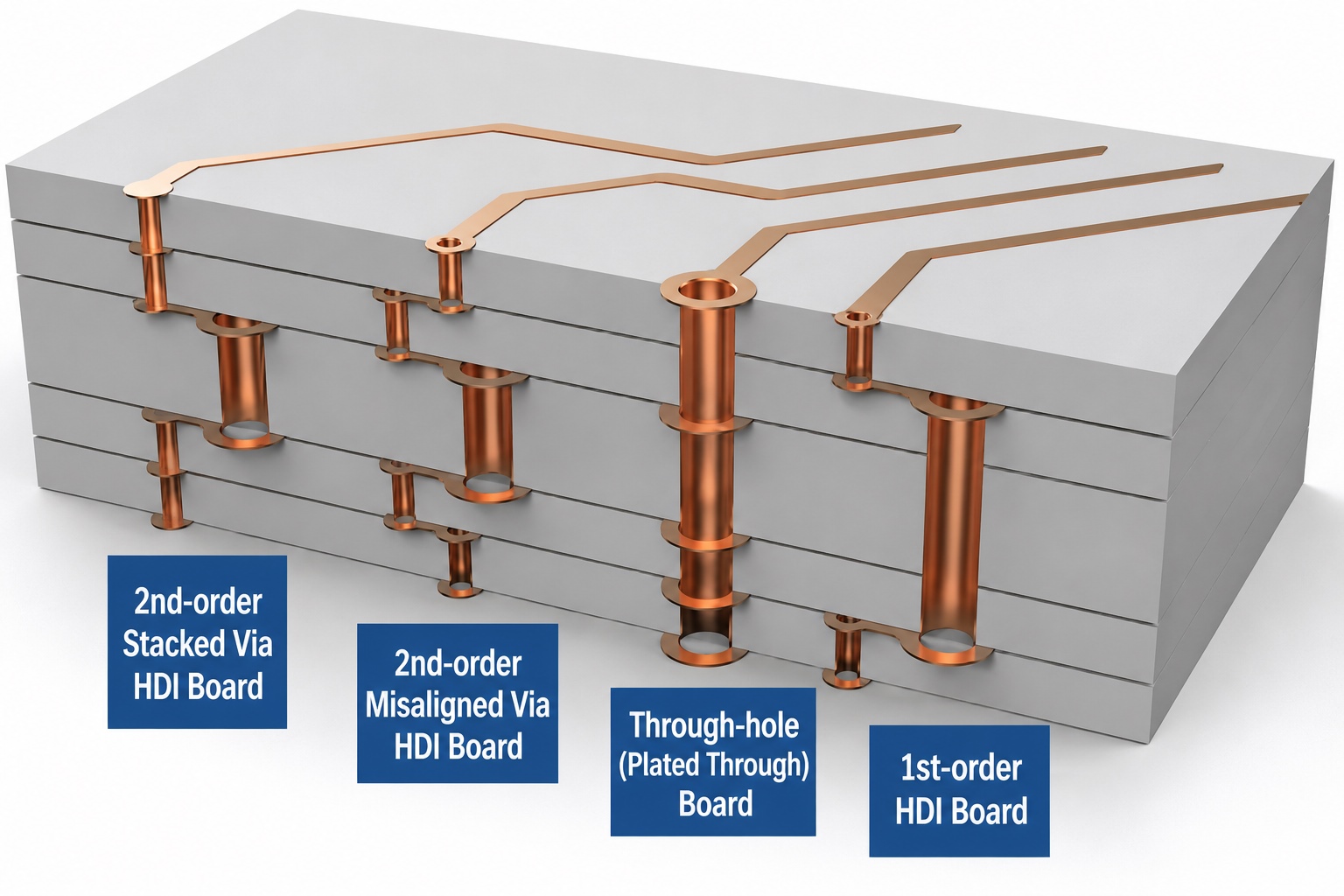

This solution represents a 2-step HDI, adopting a 1+1+N+1+1 (N=2) architecture with a final stack-up of 1+1+2+1+1, and requires two lamination cycles. Its defining characteristic is the ability to create cross-layer blind vias connecting Layer 1 to Layer 3. The depth of these blind vias is twice that of standard 1-2 layer blind vias, resulting in significantly greater interconnection span.

· Design Constraints: This structure's design is highly specific. It is not permissible to replace the 1-3 cross-layer blind via with stacked vias (1-2 + 2-3). The design is uniquely constrained.

· Process Challenges: The deep laser drilling for cross-layer blind vias demands extreme precision and excellent hole-wall quality. Subsequent electroless copper deposition and plating processes face significant difficulty in ensuring uniform copper thickness within these deep vias, potentially leading to cracks or poor conduction. Only a limited number of manufacturers with advanced high-end capabilities can achieve stable mass production.

· Overall Assessment: This structure presents extreme processing difficulty, low yields, high costs, and unpredictable delivery schedules. It is not recommended unless absolutely necessary.

· Target Applications: Strictly limited to specialized, custom high-end products with mandatory cross-layer connection requirements.

· Optimization Advice: Where design rules allow, prioritize converting cross-layer blind vias to a 1-step stacked via scheme (1-2 + 2-3 combination) to drastically reduce manufacturing risk and cost.

4. 6-Layer Any-layer HDI – Ultra-High Density Interconnect

Any-layer HDI enables direct blind via connections between any layers, removing fixed routing hierarchy limitations. It offers the ultimate in routing freedom, integration, and signal integrity among 6-layer HDI options. This structure relies on sequential build-up with multiple laser drilling and plating cycles, making its process complexity and cost the highest for 6-layer boards.

· Target Applications: High-end precision instruments, high-frequency/high-speed communication devices, flagship wearable technology, and other performance-critical custom products. Rarely used in general consumer electronics.

IV. Comparative Summary and Selection Guidelines for 6-Layer HDI Stack-ups

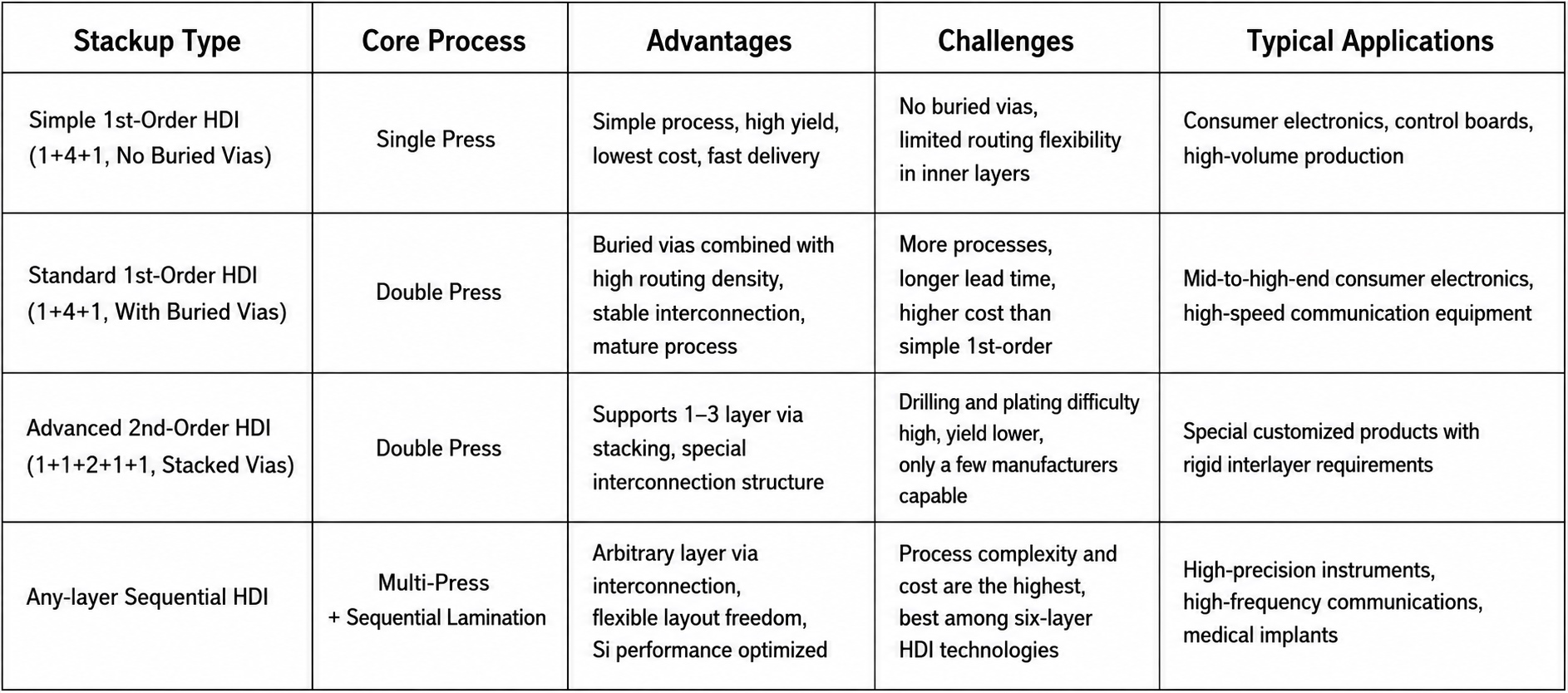

1. Pros and Cons Comparison

2. Core Selection Principles

· General Mass Production: Prioritize the Simplified Single-Lamination 1-Step 6-Layer HDI to achieve the lowest overall cost and highest production yield, provided performance requirements are met.

· Mid-to-High-End Standard Applications: Opt for the Standard Double-Lamination 1-Step 6-Layer HDI (with Buried Vias) to meet high-density routing and signal quality needs using a proven process.

· Special Custom Scenarios: Only choose the Non-Standard 2-Step Cross-Layer Blind Via HDI if there is an unavoidable, mandatory cross-layer connection. Evaluate the possibility of switching to a stacked via scheme during the design phase to mitigate risks.

· High-End High-Frequency/High-Speed Applications: Select Any-layer HDI as needed to fully unlock routing flexibility and signal integrity potential, accepting the associated high cost and extended lead time.

V. Conclusion

The stack-up design for a 6-layer HDI PCB is a balancing act between performance, manufacturing capability, and cost. It is crucial for design engineers to engage in stack-up selection at the very beginning of product specification definition. By carefully evaluating electrical requirements, production volumes, and the supplier's process capabilities, and making informed trade-offs, engineers can achieve optimal engineering efficiency and product value.
