Flex PCB Fabrication Manufacturer-Kinji Group

FPC · High Flexibility and High Strength

6L FPC (Flexible Printed Circuits) Flexible Circuit Board

Number of Layers: 6L

Board Thickness: 0.25±0.03mm

Surface Treatment: Immersion Gold
Automotive Brake Lamp FPC (Flexible Printed Circuits) Flexible Board

Number of Layers: 2L

Board Thickness: 0.2mm

Surface Treatment: OSP
Special FPC (Flexible Printed Circuits) Double-Sided Connection Flexible Board

Number of Layers: 2L

Board Thickness: 0.15mm

Surface Treatment: Immersion Gold
New Energy Lithium Battery FPC (Flexible Printed Circuits) Protection Board

Number of Layers: 2L

Board Thickness: 0.3mm

Surface Treatment: Immersion Gold
Double-Sided FPC (Flexible Printed Circuits) Flat Cable

Number of Layers: 2L

Board Thickness: 0.15±0.03mm

Surface Treatment: Immersion Gold
Large Size Heavy Copper Double-Sided Flexible Board

Number of Layers: 2L

Board Thickness: PCB-1.2mm+FPC-0.05mm

Surface Treatment: HASL
2L Fingerprint Recognition FPC (Flexible Printed Circuits)

Number of Layers: 2L

Board Thickness: 0.12mm

Surface Treatment: Immersion Gold
6L Bluetooth Headset FPC (Flexible Printed Circuits) Flexible Board

Number of Layers: 6L

Board Thickness: 1.0mm

Surface Treatment: Immersion Gold

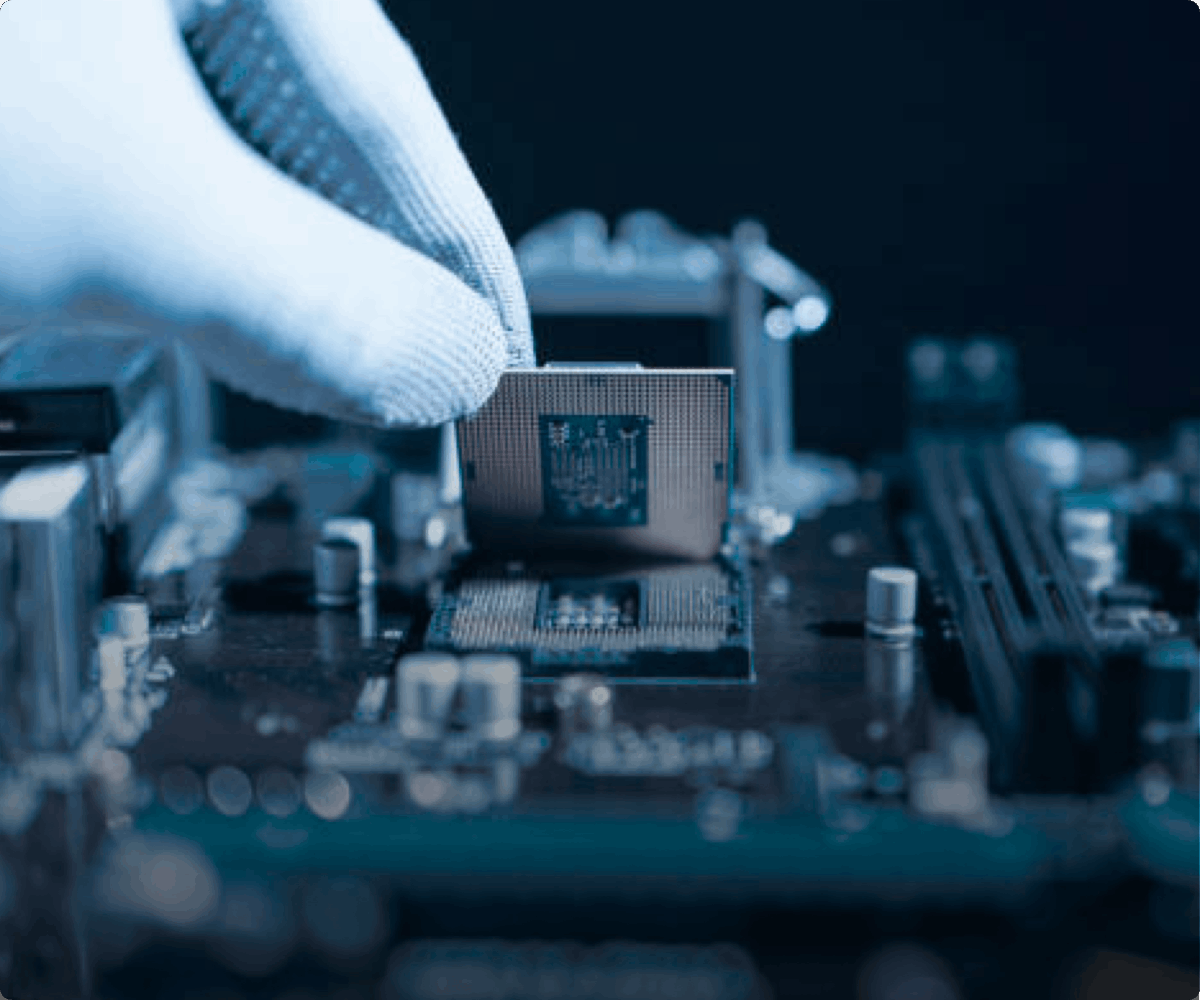

FPC· Manufacturing Capability

Item	Kinji·FPC·Manufacturing Capabilities
Maximum Layer Number	16L
Minimum Finished Board Thickness	0.04mm
Maximum Size	500mm*2200mm
Minimum Laser Drilling	0.025mm
Minimum Mechanical Drilling	0.1mm
Minimum Line Width/Line Distan	0 .035mm/0.035mm
Surface Treatment	Immersion Gold, ENEPIG, OSP, Gold Plating, Gold Plating + Immersion Gold, Gold Plating +OSP, Immersion Silver, Immersion Tin, Tin Plating

Learn more manufacturing capability Information

Copper Substrate· Advantages

High Density Wiring Capability: Because Flexible Printed Circuit (FPC) can bend and connect circuits to the necessary locations, they can be used in small size and high density applications.

High Reliability: R-FPC uses advanced manufacturing processes and materials, not only can ensure the stability of the circuit, but also can improve the reliability of the board.

Good Mechanical Properties: The combination of Rigid board (PCB) and Flexible board (FPC) can provide good rigidity and elasticity for the circuit board, so that it has more vibration resistance and anti-distortion performance than the conventional circuit board.

Longer Service Life: Compared with general circuit boards, R-FPC has a longer service life and better performance stability, and can maintain good performance in a variety of harsh climates and environments.

Saving Space: The R-FPC combines a Rigid board (PCB) with a Flexible board (FPC), so it can use less space than traditional boards, providing greater flexibility and design freedom for applications.

FPC· Application

Smart Headset
Smart Watch
Digital Camera
Laptop
Car Steering Wheel
Medical CT
Foldable LED Screen
Smart Insoles
Smart Glasses

Four Core Advantages, Rest Assured to Choose

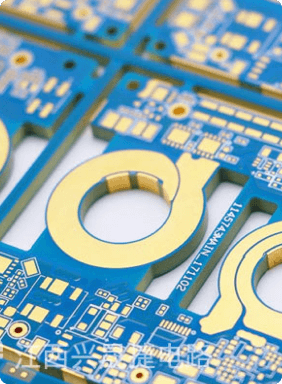

Strictly select raw materials, without quality worries

Strictly select raw materials, without quality worries
Adopt A level raw materials, eliminate defective products, ensure product quality, strictly control production process, in line with international IPC standards.

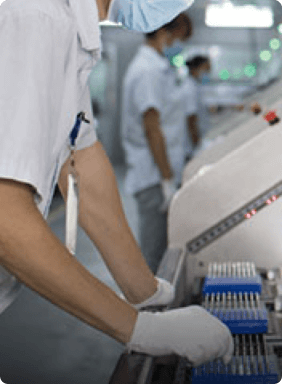

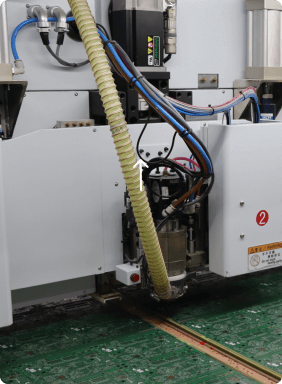

Advanced equipment, mature technology

Advanced equipment, mature technology
A full set of automated production equipment, real-time data control throughout the process, effectively ensure delivery on time, to meet the needs of R&D testing.
Professional team, customized service

Professional team, customized service
With more than 50 high-end technology process team, a variety of special technology process coverage, can provide expedited service, select freely according to your demand.
Intimate service, without delivery worries

Intimate service, without delivery worries
More than 10 local service offices around the world, providing flexible, high efficient and excellent product delivery services, delivery on time.
