TLX-8 High-Frequency PCB Material Core Advantages Explained: An RF/Microwave Engineer's Guide to Material Selection

In the R&D and mass production of RF, radar, and millimeter-wave PCBs, a common yet dangerous misconception persists: treating all high-frequency laminates as interchangeable, assuming they are universally applicable and can be freely substituted. In reality, when projects advance to the high-end microwave and millimeter-wave stages, most engineers and procurement staff may know they need high-frequency substrates, but they often struggle to clearly distinguish the fundamental differences between the three main material systems: PTFE (Polytetrafluoroethylene), hydrocarbon resins, and standard FR4. Indiscriminately replacing materials is a root cause of signal distortion, test failures, and low production yields.

With the large-scale deployment of 5G-A millimeter-wave, automotive radar, satellite communications, and military microwave equipment, AGC Taconic's TLX-8 has solidified its position as a classic, high-end microwave substrate and a preferred material in sophisticated RF solutions. However, many in the industry only know its name, lacking a systematic understanding of its applicable scenarios, processing characteristics, performance limitations, and substitution taboos.

Based on over two decades of practical experience in mass-producing high-frequency PCBs at Kinji Group, this article systematically deconstructs TLX-8's core performance, processing highlights, application boundaries, and the underlying logic for material selection. Our goal is to help engineers precisely navigate selection and production challenges, truly mastering the material selection puzzle for high-end RF PCBs.

I. Material Positioning: TLX-8's Grade and Industry Standing

TLX-8 belongs to AGC Taconic's family of glass-reinforced PTFE microwave high-frequency substrates. It is part of the industry-standard TLX series (which includes TLX-0, TLX-9, TLX-8, TLX-7, TLX-6) and is recognized as a benchmark commercial precision substrate in the RF, microwave, and even millimeter-wave domains, widely used in high-end RF PCB mass production.

From a material system perspective, TLX-8 is fundamentally different from mainstream hydrocarbon resin or modified FR4 high-frequency boards. It uses pure PTFE as its core material, emphasizing extremely low loss and high electrical stability across a wide temperature range. It is specifically engineered for high-precision RF applications, not as a general-purpose high-frequency material.

A Critical Misconception to Correct:
Some engineers and procurement professionals are accustomed to using hydrocarbon resin boards like S7136H as direct equivalents or substitutes for TLX-8—this is strictly prohibited. These materials have entirely different systems, processing adaptability, and application scenarios, with no viable generic substitution relationship. Repeated validation in mass production projects has shown that blind interchangeability directly leads to out-of-spec RF performance and a sharp drop in yield.

· TLX-8: Pure PTFE substrate, offering ultimate low loss, primarily designed for single-layer and double-layer precision microwave RF boards.

· S7136H: Hydrocarbon resin substrate, supporting multilayer lamination and hybrid pressing, suitable for mass production of high-multilayer, high-frequency, high-speed boards.

II. Core Parameter Breakdown: TLX-8's Strength in High-End RF

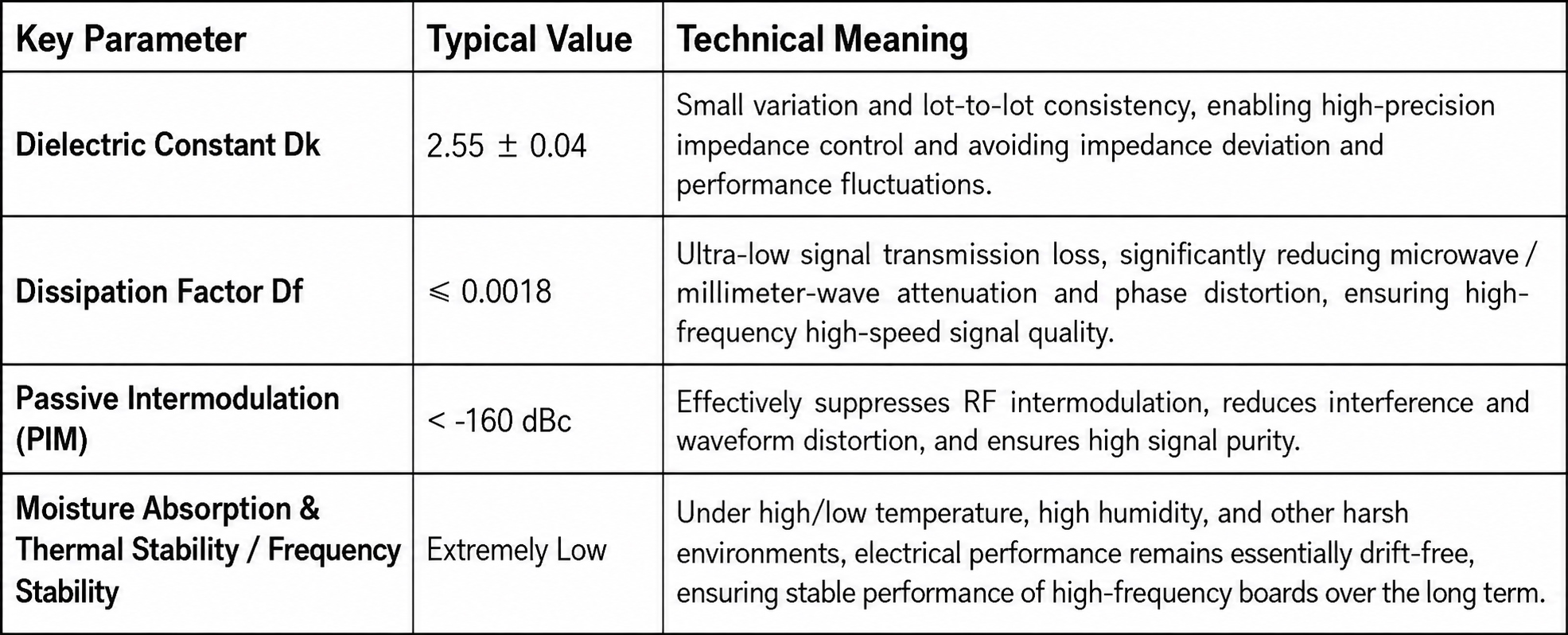

The quality of a high-frequency board is critically determined by its Dielectric Constant (Dk) and Dissipation Factor (Df), which directly govern the transmission integrity and stability of high-frequency signals. Among PTFE substrates in its class, TLX-8 demonstrates outstanding parameter consistency and environmental stability (Test conditions: @10 GHz), meeting the stringent demands of millimeter-wave and military RF applications.

In short: The higher the operating frequency and the more severe the operating conditions, the more TLX-8's performance advantages become apparent—an edge that FR4 and conventional hydrocarbon materials simply cannot match.

III. Five Core Features: TLX-8's Suitability for High-End Precision RF

1. Ultimate Low Loss, Specialized for Millimeter-Wave High-Frequency Scenarios
The pure PTFE substrate inherently provides low-loss physical properties, fundamentally reducing high-frequency signal transmission losses. It effectively addresses common issues in millimeter-wave and microwave devices like signal attenuation, phase shift, and transmission distortion. It is a preferred substrate for civilian high-end and military-grade microwave/millimeter-wave equipment.

2. Glass-Reinforced Structure, Overcoming Pure PTFE's Inherent Weaknesses
Traditional pure PTFE is relatively soft, has insufficient mechanical strength, and poor creep resistance. It is prone to deformation and scrap during processing and can suffer structural failure over time due to vibration or temperature fluctuations under long-term use. TLX-8 employs a woven fiberglass reinforcement composite structure, significantly enhancing mechanical strength, flatness, and structural stability. This allows it to reliably handle complex conditions such as equipment vibration and thermal cycling, balancing excellent electrical performance with long-term reliability.

3. Clear Process Boundaries: Suitable for Few-Layer Boards, Not for High-Multilayer Lamination
This is the most critical and often overlooked factor in material selection. Due to the material's inherent properties, TLX-8 is only suitable for single, double, and a limited number of RF layers; it does not support multilayer lamination stacking and is strictly prohibited from being used in hybrid manufacturing with FR4. Attempting high-layer-count boards can easily cause defects like interlayer delamination, board warpage, voids in the hole walls, and layer misalignment, severely reducing yield. Professional high-frequency PCB manufacturers strictly adhere to this boundary, mitigating structural risks from the design stage.

4. Military-Grade Reliability, Suitable for Extreme Conditions
TLX-8 has a UL94 V-0 flammability rating and offers properties like low outgassing, radiation resistance, high-temperature resistance, creep resistance, and aging resistance. It can operate stably over the long term in demanding environments such as aerospace, military radar, outdoor base stations, and automotive high-frequency equipment, fully meeting the reliability certification standards for military and high-end industrial products.

5. High Manufacturing Process Hurdle, Dependent on Specialized High-Frequency Processing Capabilities
The physical and chemical properties of PTFE differ vastly from those of FR4 and hydrocarbon resins. The entire process chain—drilling, electroless copper deposition, electroplating, etching, surface finishing—requires customized, dedicated parameters. Deviation in any parameter can lead to quality issues like rough hole walls, poor copper adhesion, open circuits, and abnormal signal performance. Therefore, TLX-8 demands exceptionally high manufacturing capabilities and quality control systems from the PCB factory. Baineng Yunban has specifically established a dedicated PTFE high-frequency production line, equipped with mature, comprehensive process parameters to consistently guarantee yield and consistency from prototyping to mass production for TLX-8, ensuring strict RF performance control.

IV. Precise Application Scenarios: Which Projects Must Choose TLX-8?

Based on years of mass production experience, TLX-8 is not a general-purpose high-frequency material. It is not suitable for common multi-layer, high-frequency, high-speed projects, but is instead laser-focused on the high-precision microwave and RF niche. The following scenarios prioritize TLX-8 and absolutely forbid arbitrary substitutions—this is the core service area of high-end precision high-frequency PCBs:

· 5G-A / 6G millimeter-wave antennas, array antennas, and high-frequency RF antenna units

· Military microwave radar, automotive high-precision perception radar, and detection radar systems

· RF filters, power dividers, couplers, circulators, and other passive precision RF components

· Microwave test instruments and precision signal transmission measurement equipment

· Satellite communications, aerospace high-end passive RF assemblies

Selection Conclusion: For projects prioritizing ultimate signal purity, ultra-low interference, and high environmental stability in single/double-layer microwave RF board designs, TLX-8 should be the primary choice.

V. In-Depth Material Comparison: TLX-8 vs. Conventional High-Frequency Boards

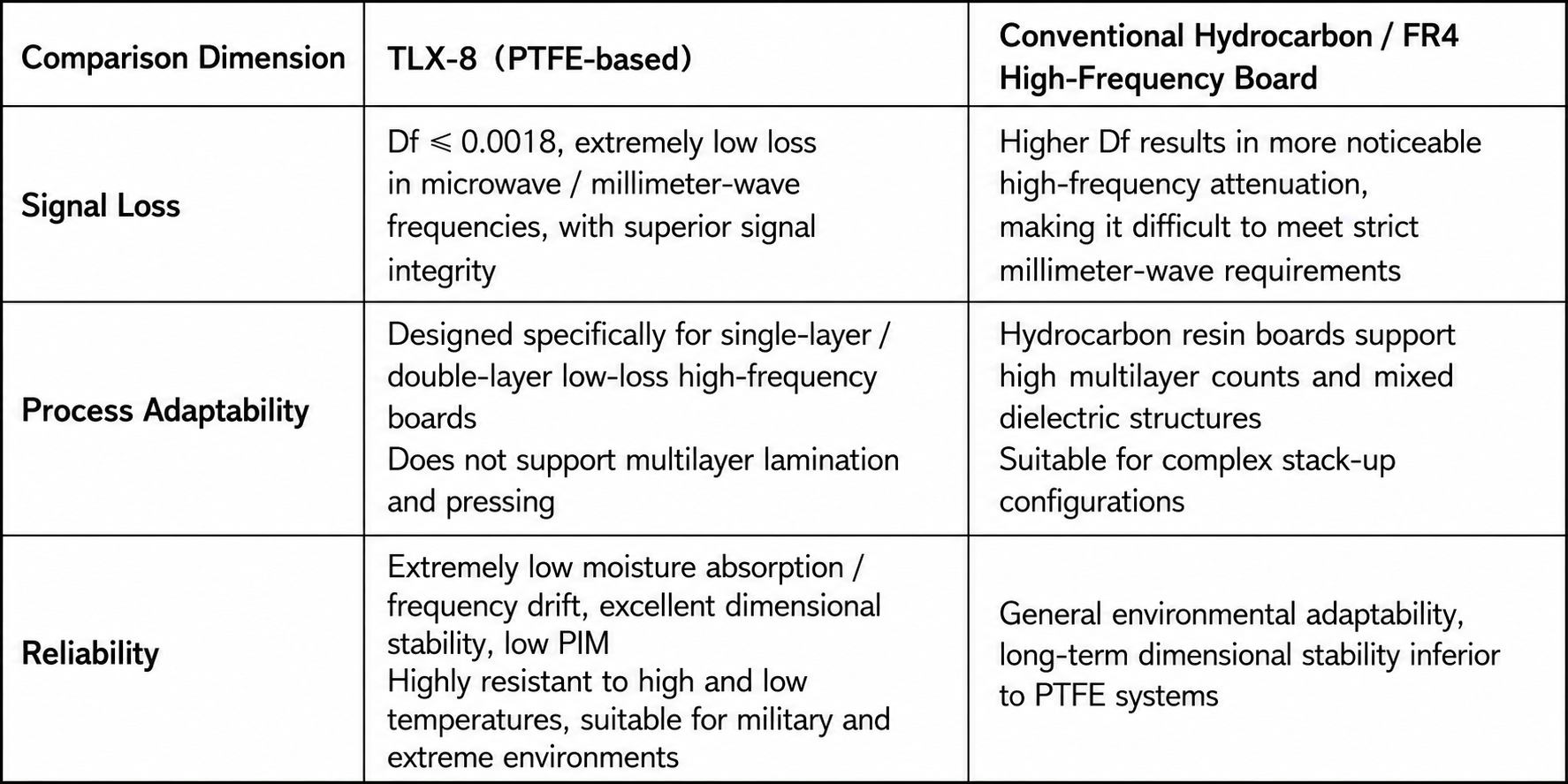

Key Insight: This is not a debate about which material is superior; they are complementary based on the application. The industry must precisely match materials based on layer count, operating frequency, and mass production requirements: Choose hydrocarbon resin for high-multilayer, high-frequency, high-speed, and hybrid boards; choose TLX-8 for single/double-layer precision microwave RF, high-reliability projects. Never substitute them blindly.

VI. Core Industry Material Selection Summary

For many high-frequency projects, test failures, unstable signals, and low production yields often stem not from design flaws but from initial material selection errors and mismatches between material capabilities and process scenarios.

The core logic of high-frequency PCB material selection is never "the more expensive, the better" but rather precise matching and selection based on specific needs:

· High-multilayer, high-frequency, high-speed, hybrid mass production projects → Hydrocarbon Resin High-Frequency Boards

· Single/Double-layer microwave RF, millimeter-wave precision, high-reliability projects → TLX-8

Only by precisely matching board properties with process scenarios can you achieve first-pass test success, stable project mass production, and proactively avoid selection and manufacturing risks.

If you are working on radar, antenna, microwave RF projects and have questions about material selection or process solutions, or are concerned about production yield and signal integrity, please contact Kinji. We offer a free, one-on-one project consultation to help you navigate challenges and successfully advance your high-end RF projects to market.
