Rigid-Flex Integrated Precision Light Control | Kinji Rigid-Flex PCB Reconstructs the Mini LED Underlying Solution

Currently, Mini LED display technology has been widely integrated into fields such as automotive cockpits, high-end smart kitchen appliances, commercial industrial equipment, and foldable consumer electronics, becoming the core pathway for high-end display product iteration and upgrades. However, the traditional split backlight architecture consisting of "rigid PCB + separate FPC + connectors" has long suffered from systemic pain points including cumbersome wiring, flexural fatigue fractures, backlight light bleeding, and electrical instability under high and low-temperature conditions. These issues severely restrict the advancement of terminal devices towards lightweight, high-reliability, and high-image-quality goals.

Kinji deeply focuses on the customized needs of terminal customers. Leveraging pre-emptive technical collaborative discussions and precision process development, we have successfully researched, developed, and mass-produced an LED local dimming rigid-flex PCB. This product utilizes an integrated lamination process combining rigid substrates with PI flexible film, creating a highly integrated circuit carrier specifically for Mini LED backlight modules. It achieves a balanced unification of precision optical performance, integrated structural design, and automotive-grade full-domain reliability, providing high-end display devices with an efficient, stable, cost-effective, and turnkey underlying interconnection solution.

I. Rigid-Flex Integrated Molding, Eradicating Assembly Issues, Achieving Cost Reduction and Efficiency Enhancement

The product features an optimized 4-layer stack-up design, utilizing high-Tg FR4 rigid substrates (Tg ≥ 150°C) and low-adhesive pure PI flexible film, integrated seamlessly through a one-step lamination process. The rigid and flexible functional areas are clearly defined, fully replacing the traditional split backlight architecture and fundamentally eliminating long-standing issues such as structural redundancy, complex assembly, and inadequate operational stability.

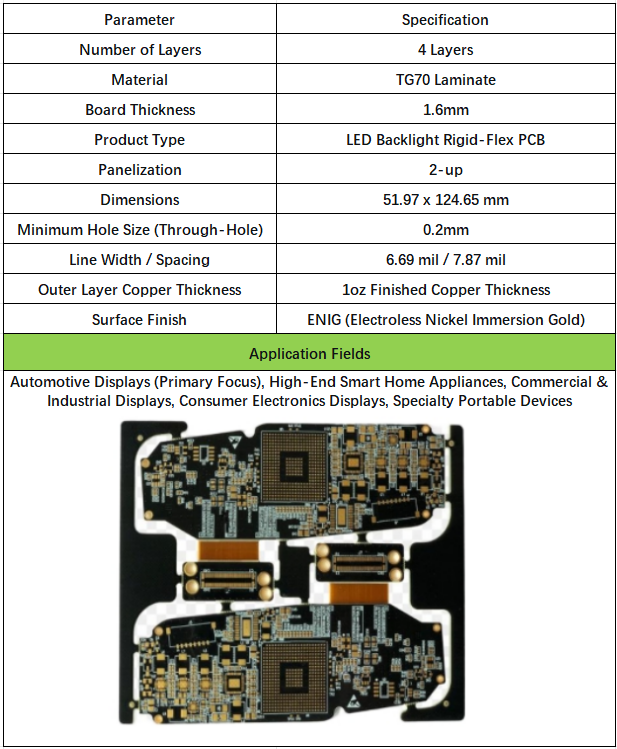

4-Layer LED Local Dimming Rigid-Flex PCB Product Parameters

Rigid Load-Bearing Area: Stable Attachment, Long-lasting Output
The board surface features double-sided precision routing. The top side is laid out with pads for Mini LED chips, while the bottom side integrates LDU driver ICs and SMD components. The standard 1.6mm board thickness provides robust support for mounting and soldering. Addressing the high-current operating scenarios of LEDs, the core areas utilize 2oz thickened copper foil, allowing each individual LED to stably carry a continuous current of 300mA, ensuring no overheating, pad peeling, or failure risks even under prolonged high-load operation, perfectly suiting high-density LED layouts.

Flexible Bending Area: Ultra-thin and Flexible, Adapting to Complex Opening/Closing Structures

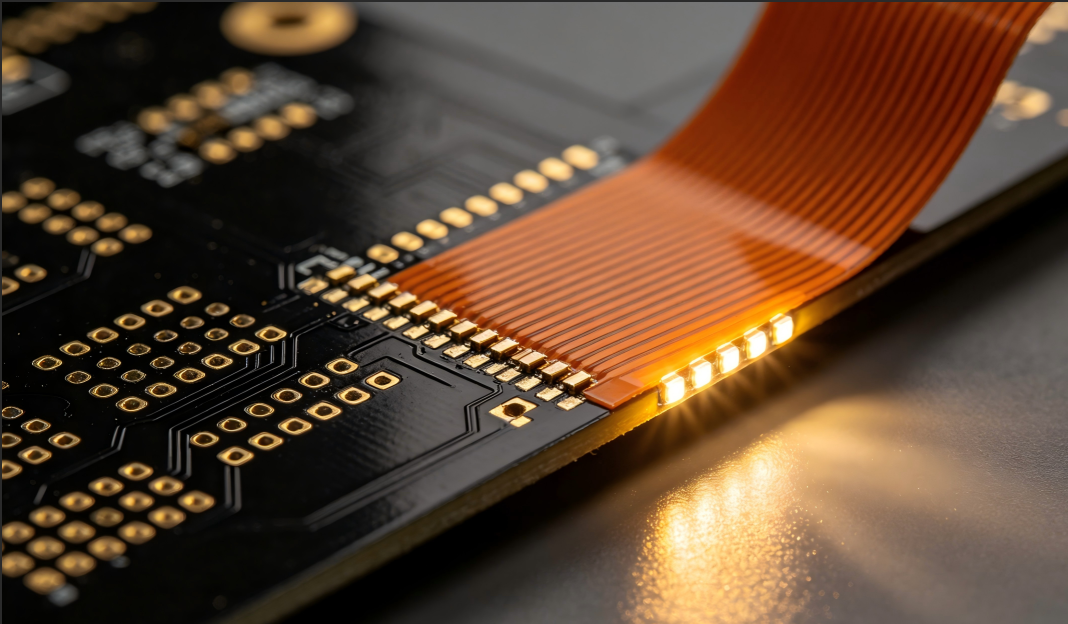

The flexible area features multiple ultra-thin (0.125mm) orange PI flex tails, with a minimum bending radius as low as 0.3mm. This enables seamless adaptation to confined opening/closing structures such as automotive rotating shafts, kitchen appliance flip covers, and foldable device hinges. A dedicated stress relief slot at the rigid-flex boundary effectively dissipates stress concentration generated during lamination and repeated bending. The flex section can withstand ≥10,000 cycles of 90° repeated bending without delamination, line breakage, or surface cracking, demonstrating exceptional durability.

Optics-Specific Processes: Optimized Image Quality, Guaranteed Production Yield
The entire board is covered with matte black solder mask, suppressing stray light reflection at the light source level to significantly enhance screen contrast and image purity. This is complemented by a refined ENIG (Electroless Nickel Immersion Gold) finish (Gold thickness 0.05~0.12μm, Nickel layer ≥2μm), providing pads with excellent oxidation resistance, corrosion resistance, and solderability, suitable for high-speed SMT automated assembly, effectively ensuring and improving production yield.

Compared to traditional split solutions, this product reduces wiring and connectors by over 60%, decreases overall device volume and weight by 40%, simplifies assembly processes by 50%, and lowers long-term terminal failure rates by over 60%. This achieves dual improvements in cost reduction, efficiency, and quality across all dimensions including material costs, labor assembly, and after-sales maintenance.

II. Precision Local Dimming Routing, Building the Foundation for High-End Image Quality

Addressing the core requirement of Mini LED independent local dimming control, the product features customized multi-channel independent LDU dimming circuits. Leveraging mature HDI precision manufacturing processes, it achieves minimum line width/spacing of 3mil/3mil. Through a composite via process utilizing micro-vias and mechanical定位 holes, single-channel impedance deviation is strictly controlled within ±8%, thoroughly eliminating channel leakage and backlight light bleeding. This enables precise local dimming control, excellent brightness uniformity, and deep blacks, laying a solid foundation for high-end, high-definition image quality.

The entire board comes standard with high-temperature resistant white legend printing, clearly marking each LDU channel number, greatly simplifying module debugging and after-sales repair processes. In terms of electrical safety, the product features insulation resistance ≥10¹⁰Ω at 500V DC and withstands a 500V AC/60s hi-pot test without breakdown or sparking, fully meeting the application standards for high-safety equipment in automotive, medical, and industrial fields.

III. Automotive-Grade Full-Domain Quality Control, Stable and Reliable Under All Operating Conditions

All series of LED backlight rigid-flex boards strictly adhere to the IATF16949 automotive production system. Each batch undergoes comprehensive reliability sampling inspections covering mechanical properties, temperature/humidity tolerance, electrical performance, and corrosion/moisture protection, ensuring reliable operation across diverse and harsh operating conditions for long-term terminal device stability.

Wide Temperature Endurance, Unfazed by Thermal Shock
The high-Tg rigid substrate withstands three reflow cycles at a peak temperature of 260°C (lead-free process) and operates reliably across a standard temperature range of -40°C to 125°C. After undergoing 1000 high-low temperature cycles and extreme thermal shock tests, the board shows impedance variation below 5%, with no blistering, delamination, or cracking, making it perfectly suitable for automotive, kitchen appliance, and other applications with severe temperature fluctuations.

Corrosion and Moisture Protection, Long-lasting Resistance to Aging and Erosion
The ENIG finish combined with the highly adhesive matte black solder mask passes cross-hatch adhesion tests, does not yellow at high temperatures, and eliminates stray light reflection. Specialized versions for automotive and kitchen appliance applications pass 48-hour neutral salt spray tests and withstand 1000 hours of aging at 85°C/85% RH high-temperature, high-humidity conditions, showing no corrosion on circuits/pads and no abnormal impedance drift, demonstrating outstanding corrosion and aging resistance.

Closed-Loop Full-Process Quality Control, Micron-Level Tolerance Management
The brand implements closed-loop full-process quality control. All raw materials (substrates, films, copper foils, prepregs, plating chemicals, etc.) undergo 100% incoming inspection. Key processes such as rigid-flex lamination, micro-via plating, fine-line etching, and solder mask printing feature segmented temperature and pressure control with precise parameter management. Finished products undergo AOI optical inspection, flying probe full impedance testing, and full dimensional inspection. Rigid-flex boundary tolerances are controlled within ±0.1mm, and positioning hole tolerances are as low as ±0.05mm, ensuring high-precision fit during final assembly.

IV. Four Core Application Tracks, Precisely Matching Terminal Upgrade Needs

Automotive Mini LED Displays (Primary Focus Track)
Suitable for new energy vehicle central control screens, full LCD instrument clusters, rear-seat entertainment screens, and streaming media rearview mirrors. The flexible sections conform to complex curved surfaces inside the vehicle, offering advantages in vibration resistance, repeated bending endurance, and ultra-wide temperature range suitability for diverse driving conditions. Multi-channel high-precision LDU local dimming effectively enhances the HDR image quality of automotive screens. The product has been deeply integrated into the backlight module supply chains of leading automotive Tier 1 suppliers.

High-End Smart Kitchen Appliances
Fully adaptable for IH electromagnetic rice cookers, built-in steam ovens, and smart refrigerator touch-control backlight panels. The integrated structure eliminates external wiring harnesses, fundamentally solving the long-term bending failure problem of flip-cover hinges. It withstands high temperature, high humidity, and moisture ingress. The matte black solder mask reduces screen reflection, optimizes user interaction, and simplifies internal structure, significantly reducing circuit failures and after-sales repairs.

Commercial / Industrial Display Equipment
Suitable for self-service payment terminals, outdoor advertising machines, industrial touchscreens, medical imaging monitors, and other professional devices. The rigid-flex integrated design significantly reduces internal stacking space, supporting ultra-slim and narrow-bezel designs for terminals. The high-current copper layers handle high-density Mini LED chips, supporting 24/7 uninterrupted stable operation. Precise local dimming control effectively meets the dual demands of high-definition display and high operational stability required by commercial, industrial, and medical sectors.

Portable Consumer Electronic Displays
Adaptable for notebook backlights, foldable digital devices, camera viewfinders, portable game consoles, and other lightweight consumer electronics. The ultra-thin PI flexible sections contribute to device slimming and miniaturization. The low-impedance uniform backlight circuits, combined with ten-thousand-cycle bending durability, accommodate complex routing layouts within compact cavities, balancing aesthetic appeal, structural adaptability, and long service life.

Furthermore, the product can be flexibly extended to emerging fields such as avionics specialty displays, VR smart wearables, and building access touch panels. It supports customized rigid-flex area layouts, LDU channel counts, and panelization formats (standard 2-up, customizable), comprehensively matching customers' differentiated customization requirements.

V. Kinji: Full-Chain Precision Rigid-Flex PCB Customization and Smart Manufacturing Service Provider

As a specialized and sophisticated smart manufacturing platform focusing on specialty precision PCBs, Kinji operates two intelligent production bases in Shenzhen and Jiangxi, with a monthly production capacity exceeding 100,000 m². We boast a professional R&D team of over 200 members, possessing full-chain delivery capabilities for independent rigid-flex board development, process iteration, and mass production. We are dedicated to tackling difficult specialty circuit board manufacturing challenges in the display, automotive, and industrial electronics sectors.

For LED backlight rigid-flex PCB products, we provide a full-process, one-stop customized smart manufacturing service:

· DFM Front-End Design Review: Upload design files for rapid output of stress, routing, and bending risk analysis reports, identifying and mitigating potential mass production issues early on, optimizing structures and routing solutions.

· Flexible and Efficient Delivery: Supports rapid prototyping, small-to-medium batch pilot production, and large-scale stable production scheduling, complemented by comprehensive reliability test reports including bending, high-low temperature, and salt spray tests.

· Fully Traceable Process: Retains all AOI scanning images, impedance test logs, and raw reliability test data throughout the process, meeting the stringent audit and traceability requirements of the automotive and medical industries.

· Comprehensive Process Coverage: Offers complementary custom processes such as HDI micro-via, heavy copper, ENIG, matte specialty solder mask, etc., meeting various process requirements for Mini LED backlight circuit carriers in one stop.

Currently, the Mini LED display industry continues to evolve towards higher integration, reliability, lightweight design, image quality, and cost-effectiveness. The structural shortcomings of traditional split backlight circuit solutions are becoming increasingly apparent and no longer match the high-end upgrade pace of terminal products.

Kinji's LED backlight rigid-flex board, with its integrated structural advantage, automotive-grade precision manufacturing, and full-scenario reliable performance, bridges the value chain from the circuit substrate to the final terminal device. It assists backlight module manufacturers and display brands in achieving differentiated product upgrades, quality leaps, and long-term cost optimization.

For sample testing or volume customization of automotive, kitchen appliance, or commercial display-specific rigid-flex backlight boards, please contact the Kinji technical team immediately to obtain a dedicated integrated solution for your Mini LED backlight circuit needs.
