12–20 Layer High-Speed PCB Stackup Design Specification Template

I. Scope of Application

This stackup design specification has been developed by Kinji PCB based on years of hands-on engineering experience in high-layer-count, high-frequency, and high-speed PCB fabrication. It is tailored for high-speed digital circuit scenarios and is applicable to high-speed interface designs such as DDR4/DDR5, PCIe Gen3/Gen4/Gen5, and 25Gbps+ SerDes. This specification is widely applicable to PCB design projects with stringent requirements for signal integrity (SI), impedance control, and electromagnetic compatibility (EMC), including communication backplanes, server motherboards, and high-end consumer electronics. It directly aligns with Kinji PCB's high-precision multilayer board mass-production process standards and serves as a benchmark document bridging design and manufacturing.

II. General Design Guidelines

2.1 Board Thickness Standards

· 12-layer and 14-layer PCBs: Standard thickness 1.6 mm

· 16-layer and 18-layer PCBs: Standard thickness 2.0 mm

· 18-layer optimized robust version: Recommended 2.2 mm

· 20-layer high-end version: Recommended 2.6 mm
The above thickness configurations are matched to Kinji PCB's lamination process capabilities, effectively eliminating mass-production risks such as warpage and layer-to-layer misalignment during multilayer lamination.

2.2 Copper Thickness Specifications

· Signal layers (S): 0.5 oz (finished copper thickness approx. 0.7 mil), meeting low-loss transmission requirements for high-speed signals.

· Power/Ground layers (P/G): 1.0 oz (finished copper thickness approx. 1.4 mil), ensuring power current-carrying capacity and grounding integrity.

· Copper thickness selections are in accordance with Kinji PCB's standard high-speed PCB process library, balancing signal loss, current-carrying performance, and etching precision.

2.3 Dielectric and Laminate Requirements

· Prepeg (PP): Uniformly select 1080 / 2116 types.

· Laminate selection: Graded selection based on signal transmission data rate, strictly matching loss and dielectric constant (Dk) parameters. Kinji PCB fully supports high-speed laminates ranging from standard grade to ultra-low loss grade, and can provide original factory Dk/Df measured parameters and process adaptation support.

2.4 Impedance Design Baseline

· Outer layer microstrip: Dielectric thickness 3.5 mil, referenced to a single ground plane underneath.

· Inner layer stripline: Dual ground reference above and below, total dielectric spacing 8 mil (4 mil on each side).

· All impedance trace widths are theoretical calculated values. Before mass production, fine-tuning can be performed with Kinji PCB's laminate parameter database and production process models to ensure impedance compliance rates.

2.5 Layer Symbol Definitions

· S: Signal layer

· G: Ground layer

· P: Power plane layer

III.High-Speed PCB Laminate Selection Specification

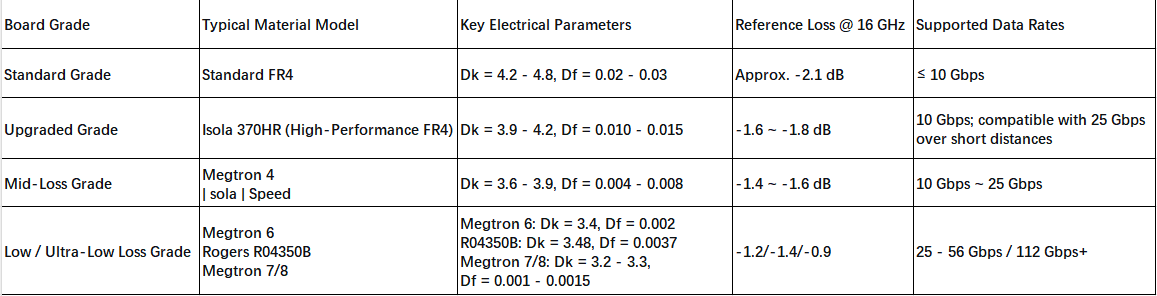

Material selection is graded according to signal transmission rate and loss requirements, matching different high-speed application scenarios. Electrical parameter test conditions: Dk/Df @ 1 GHz / 10 GHz; Loss value @ 16 GHz, 1-inch trace length. Kinji PCB supports custom mass production of all grades of high-speed laminates and provides simulation parameter output.

IV. Detailed Stackup Design Solutions by Layer Count

All stackup solutions adopt a center-symmetrical structure to eliminate PCB warpage risks during production, fully compatible with Kinji PCB's high-layer-count lamination process. Additionally, each high-speed signal routing is ensured to have a complete reference plane, optimizing return current paths and enhancing signal integrity and EMC performance.

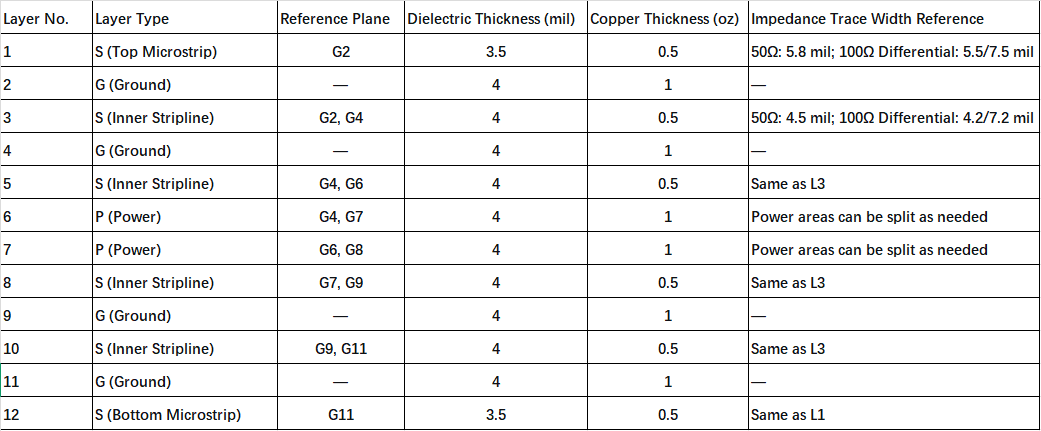

4.1 12-Layer PCB (6 signal layers, board thickness 1.6 mm)

· Symmetry center: Between L6 and L7 (dual power plane adjacent structure)

· Stackup order: S – G – S – G – S – P – P – S – G – S – G – S

· Layer resources: 6 signal layers, 4 ground layers, 2 power layers, fully symmetrical.

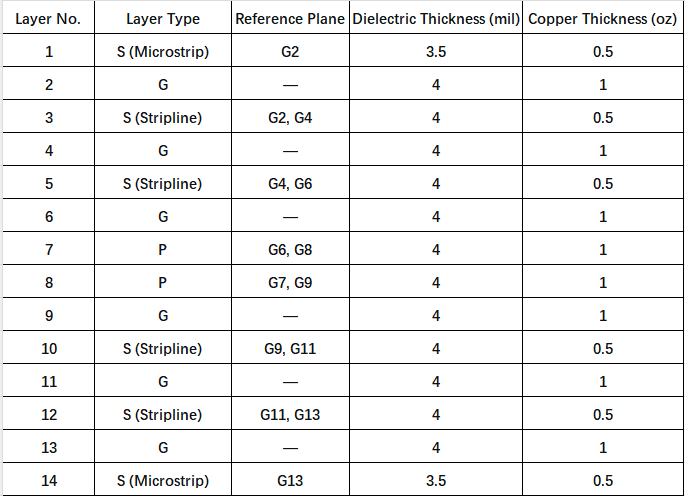

4.2 14-Layer PCB (6 signal layers, board thickness 1.7 mm)

· Design note: This is the optimal symmetrical structure, supporting stable routing for 6 high-speed signal lanes. Expanding to 8 signal layers is not recommended, as it would compromise reference plane continuity.

· Symmetry center: Between L7 and L8 (dual power plane structure)

· Stackup order: S – G – S – G – S – G – P – P – G – S – G – S – G – S

· Layer resources: 6 signal layers, 6 ground layers, 2 power layers, fully symmetrical.

Note: Impedance parameters are the same as the 12-layer solution; outer microstrip references L1 of the 12-layer, inner stripline references L3 of the 12-layer.

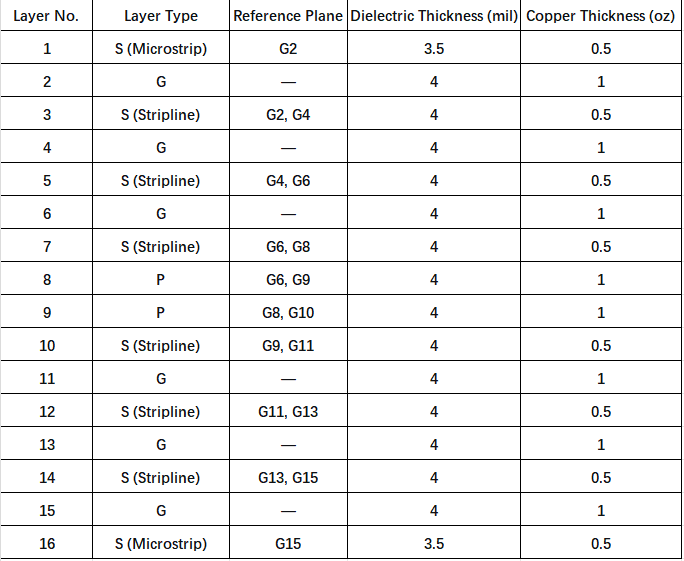

4.3 16-Layer PCB (8 signal layers, board thickness 2.0 mm)

· Symmetry center: Between L8 and L9, fully symmetrical across all layers.

· Stackup order: S – G – S – G – S – G – S – P – P – S – G – S – G – S – G – S

· Layer resources: 8 signal layers, 6 ground layers, 2 power layers, suitable for multi-channel high-speed routing.

Note: Impedance parameters are the same as the 12-layer solution.

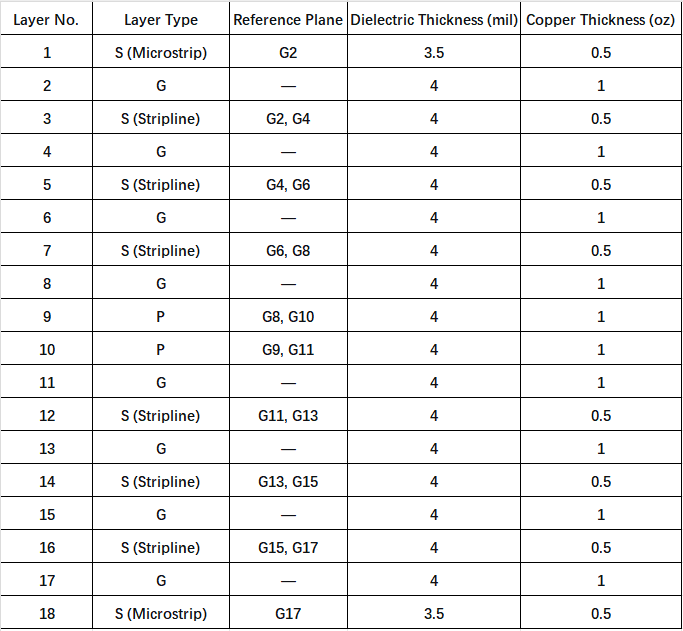

4.4 18-Layer PCB (8 signal layers, board thickness 2.2 mm)

· Design note: An industry mainstream robust solution with ample ground layers, providing excellent shielding and return performance. This is Kinji PCB's recommended stackup structure for high-frequency, high-speed applications.

· Symmetry center: Between L9 and L10.

· Stackup order: S – G – S – G – S – G – S – G – P – P – G – S – G – S – G – S – G – S

· Layer resources: 8 signal layers, 8 ground layers, 2 power layers, significantly optimized EMC performance.

Note: Impedance parameters are the same as the 12-layer solution.

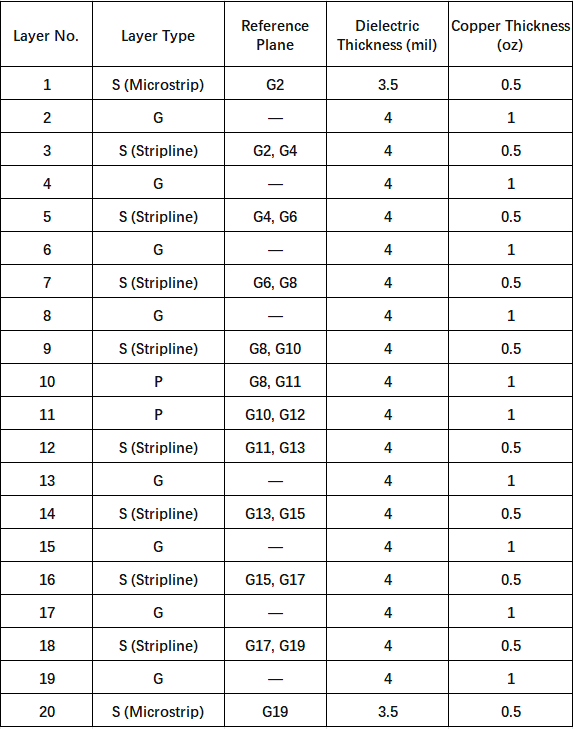

4.5 20-Layer PCB (10 signal layers, board thickness 2.6 mm)

· Design note: A high-end, high-speed board-dedicated symmetrical solution, supporting 10–12 signal layers, balancing routing density, signal integrity, and process stability. This is Kinji PCB's standard high-layer-count stackup for computing infrastructure and high-end servers.

· Symmetry center: Between L10 and L11.

· Stackup order: S – G – S – G – S – G – S – G – S – P – P – S – G – S – G – S – G – S – G – S

· Layer resources: 10 signal layers, 8 ground layers, 2 power layers.

Note: Impedance parameters are the same as the 12-layer solution.

V. Stackup Parameter Summary Table

The following table summarizes the core parameters for each layer-count solution, with a unified impedance baseline for quick selection. Before mass production, you may submit to Kinji PCB for laminate parameter matching and process calibration.

VI. General Design Notes
Differential Impedance Reference

· 100Ω differential pairs: Microstrip structure trace width/spacing = 5.5 mil / 7.5 mil; Stripline structure = 4.2 mil / 7.2 mil.

Process Adaptation Notes

All impedance trace widths listed in this document are theoretical calculated values. In actual production, factors such as laminate Dk variations, copper thickness tolerances, and etching processes necessitate verification and fine-tuning of impedance parameters with Kinji PCB process engineers prior to mass production to ensure batch yield.

Structural Advantages

All stackups adopt a center-symmetrical structure, effectively preventing PCB warpage due to thermal expansion/contraction or lamination processes. Simultaneously, they ensure that high-speed signals have complete reference ground planes, optimizing signal return paths and reducing crosstalk and EMI interference.

Laminate Matching Principles

· For 25 Gbps and above high-speed SerDes, PCIe Gen4/5, and other high-bandwidth signals, low-loss or ultra-low-loss laminates must be selected. Kinji PCB directly supports high-frequency materials from original manufacturers such as Megtron and Rogers.

· For conventional high-speed signals up to 10 Gbps, upgraded or standard-grade FR4 may be selected to control costs. Kinji PCB offers cost-effective laminate and process solutions with optimal value.
