The Core Support for Ceramic Substrate Reliability: A Deep Dive into the Principles and Solutions of Ceramic PCB Electroplating Processes

Ceramic PCBs are widely utilized in RF communication modules, high-power device packaging, high-end LED carriers, and automotive power electronics due to their superior thermal conductivity, extremely low high-frequency loss, high insulation strength, and exceptional temperature resistance. As a critical step in the ceramic PCB back-end manufacturing process, electroplating directly impacts the long-term stability of the substrate, the reliability of component soldering, and the overall service life of the product. With deep expertise in special-process PCB manufacturing, Kinji Group has accumulated significant technical know-how and extensive mass-production experience in ceramic substrate electroplating and surface finishing. Our comprehensive process capability matrix provides a solid foundation for manufacturing high-reliability ceramic circuit boards.

If left exposed to air for extended periods, the bare copper circuitry on ceramic substrates is highly susceptible to oxidation, rusting, and sulfidation, which can lead to open circuits, poor contacts, signal attenuation, and soldering defects. The electroplating process forms a dense and uniform metallic protective layer over the copper circuitry. This layer effectively isolates the copper from air, moisture, dust, and corrosive agents, blocking failure pathways. Additionally, it improves pad flatness and solderability, thereby enhancing the yield of SMT, wire bonding, and assembly processes. Electroplating is therefore a core enabler of ceramic substrate reliability. Different plating materials and processes vary significantly in performance, cost, and application scenarios. This article systematically dissects the two primary modules of ceramic PCB electroplating and provides a comparative analysis of mainstream surface plating solutions.

I. Two Core Electroplating Process Directions for Ceramic PCBs

Ceramic circuit board electroplating is mainly divided into two complementary modules: through-hole plating and surface metal plating. Together, they ensure electrical interconnection and robust protection.

1. Through-Hole Plating – Building Interlayer Conductive Pathways

After laser drilling, the hole walls of ceramic substrates undergo slight melting and crystallographic changes due to high-temperature effects, creating an insulating and rough interface that cannot directly conduct electricity. Through-hole plating is therefore essential to create conductive channels.

The standard process involves coating the hole walls with a low-viscosity, specialized conductive ink, which is then cured at high temperature to form an adhesive conductive base layer. Subsequently, electroplating deposits a uniform pure copper layer completely covering the inner walls of the through-holes. The primary function of this step is to establish low-impedance, stable conductive pathways between the upper and lower copper layers of the substrate, enabling interlayer transmission of current and signals—a critical requirement for 3D interconnection in multilayer ceramic PCBs. Pure copper is universally used for the conductive layer, offering excellent conductivity, strong adhesion, and mechanical stability under high-frequency and high-current conditions.

2. Surface Plating – Protection and Soldering Compatibility

Surface plating targets the exposed copper pads, traces, and functional circuits. Through electrochemical or electroless displacement reactions, a dense metallic protective film is deposited. Its core value lies in:

· Long-term corrosion and oxidation resistance: Completely isolates moisture, oxygen, and corrosive contaminants, preventing copper oxidation, rusting, and tarnishing, thereby enhancing storage durability and long-term operational stability.

· Optimized solderability: The uniform and flat plating layer improves solder wetting and spreading, reducing the risk of cold joints, solder skipping, and pad lifting. This improves yield in SMT and wire bonding, making it compatible with precision micro-package assembly.

II. Performance and Application Comparison of Mainstream Surface Plating Solutions

Based on plating material, formation mechanism, and process characteristics, six mature solutions are available in the industry. Each offers distinct advantages in terms of protection, solderability, abrasion resistance, cost, and suitability for specific operating conditions.

1. Copper Plating (Base Reinforcement)

· Formation Mechanism: Electrolytic copper plating (electrodeposition with external current) and electroless copper plating (catalyzed auto-deposition); used for hole wall thickening and surface trace reinforcement.

· Performance: Extremely low conductive impedance, strong adhesion, controllable thickness, high structural strength.

· Cost Level: Very Low.

· Key Advantages: Balanced electrical and mechanical performance; adaptable to irregular holes and fine circuitry; broad versatility.

· Main Limitation: Lacks surface protection; bare copper oxidizes easily. Used only as a base reinforcement layer, not as a final surface finish.

· Typical Applications: Multilayer board through-hole thickening, high-power trace reinforcement, and precision irregular-structure substrate processing.

2. Immersion Tin Plating (Electroless Displacement Tin)

· Formation Mechanism: Purely chemical displacement reaction (no electrical current) deposits a pure tin layer on the copper surface.

· Performance: Smooth coating, good wetting, lead-free and environmentally friendly, stable solderability.

· Cost Level: Low.

· Key Advantages: Simple process, high yield, excellent cost-performance, RoHS compliant.

· Main Limitation: Moderate abrasion and environmental resistance; not suitable for long-term storage or harsh conditions.

· Typical Applications: Consumer electronics ceramic substrates, general LED carriers, conventional power devices; mid-to-low-end products in mild operating environments.

3. Electroless Nickel Immersion Gold (ENIG)

· Formation Mechanism: Electroless nickel barrier layer + displacement immersion gold top layer; no electrical current; uniform deposit.

· Performance: Excellent oxidation and corrosion resistance, prolonged solderability, effective barrier against copper migration, superior high-frequency signal stability.

· Cost Level: High.

· Key Advantages: Exceptional overall reliability; no performance degradation even after extended storage; superior soldering yield.

· Main Limitation: High gold cost; not suitable for frequent mechanical abrasion.

· Typical Applications: Precision RF modules, high-end chip packaging substrates, military and medical-grade boards, high-frequency high-speed devices, and high-reliability products requiring long-term storage.

4. Immersion Silver Plating (Electroless Displacement Silver)

· Formation Mechanism: Silver ion solution displacement deposition forms a thin yet dense silver layer.

· Performance: Low impedance, excellent high-frequency conductivity, flat board surface, short processing cycle.

· Cost Level: Medium-Low.

· Key Advantages: Outstanding high-frequency performance; efficient process; good short-term oxidation resistance.

· Main Limitation: Poor long-term environmental resistance; susceptible to oxidation and tarnishing upon extended storage.

· Typical Applications: Short-turn delivery, fast-turn SMT assembly for mid-to-high-end consumer boards; general high-frequency modules (requiring packaging soon after processing).

5. Electrolytic Hard Gold Plating (Thickened Abrasion-Resistant Gold)

· Formation Mechanism: Nickel barrier layer + electrolytically thickened gold layer, with controlled hardness and density.

· Performance: High hardness, excellent abrasion resistance, withstands repeated insertion/wear, high mechanical stability.

· Cost Level: Very High.

· Key Advantages: Withstands repeated pressing, bonding, and insertion; provides both electrical conductivity and mechanical protection.

· Main Limitation: Complex process, high cost; low cost-performance for general consumer applications.

· Typical Applications: Automotive high-power electronics, industrial controls, aerospace components; demanding applications involving frequent mechanical contact.

6. General Electrolytic Plating (Custom Multi-Metal)

· Formation Mechanism: Substrate as cathode, target metal as anode, electrodeposition under applied current; compatible with multiple metals (Ni, Sn, Au, etc.).

· Performance: Precisely controllable thickness, excellent uniformity, adaptable to irregular structures and thick plating requirements.

· Cost Level: Medium.

· Key Advantages: High compatibility, covering both through-hole thickening and surface plating, meeting customized requirements.

· Main Limitation: Requires electrical current; process more complex than electroless methods; lower efficiency for thin-plating scenarios.

· Typical Applications: High-precision customized substrates, thick-plating or irregular-structure boards, non-standard products with special electrical/protective requirements.

III. Process Summary and Selection Logic

Electroplating is the core process that determines the electrical performance, protection capability, and service life of ceramic substrates. Through-hole plating ensures interlayer interconnection, while surface plating provides protection and soldering compatibility. The optimal selection should be based on a comprehensive evaluation of operating conditions, environmental severity, soldering/bonding requirements, signal frequency, and cost budget:

· General consumer, cost-sensitive: Choose Copper Plating (base) + Immersion Tin.

· Short-turn delivery, high-volume quick-turn: Immersion Silver offers high cost-performance.

· Precision high-frequency, long-term reliability: Electroless Nickel Immersion Gold (ENIG) is preferred.

· Frequent friction, repeated mechanical operations: Electrolytic Hard Gold is the optimal choice.

· Non-standard customization, special plating requirements: Leverage General Electrolytic Plating for flexible processing.

Kinji Group specializes in special-process PCBs, with extensive technical experience in the R&D and production of ceramic substrates. We master multiple core ceramic substrate technologies, including DPC, DBC, AMB, and HTCC/LTCC, and strictly adhere to international quality management system standards such as ISO9001 and IATF16949 to ensure full-process quality control. Additionally, we are proficient in a wide range of surface finishing processes, including ENIG, Immersion Silver, and Hard Gold Electroplating, enabling us to provide precise ceramic substrate electroplating solutions tailored to diverse application scenarios.

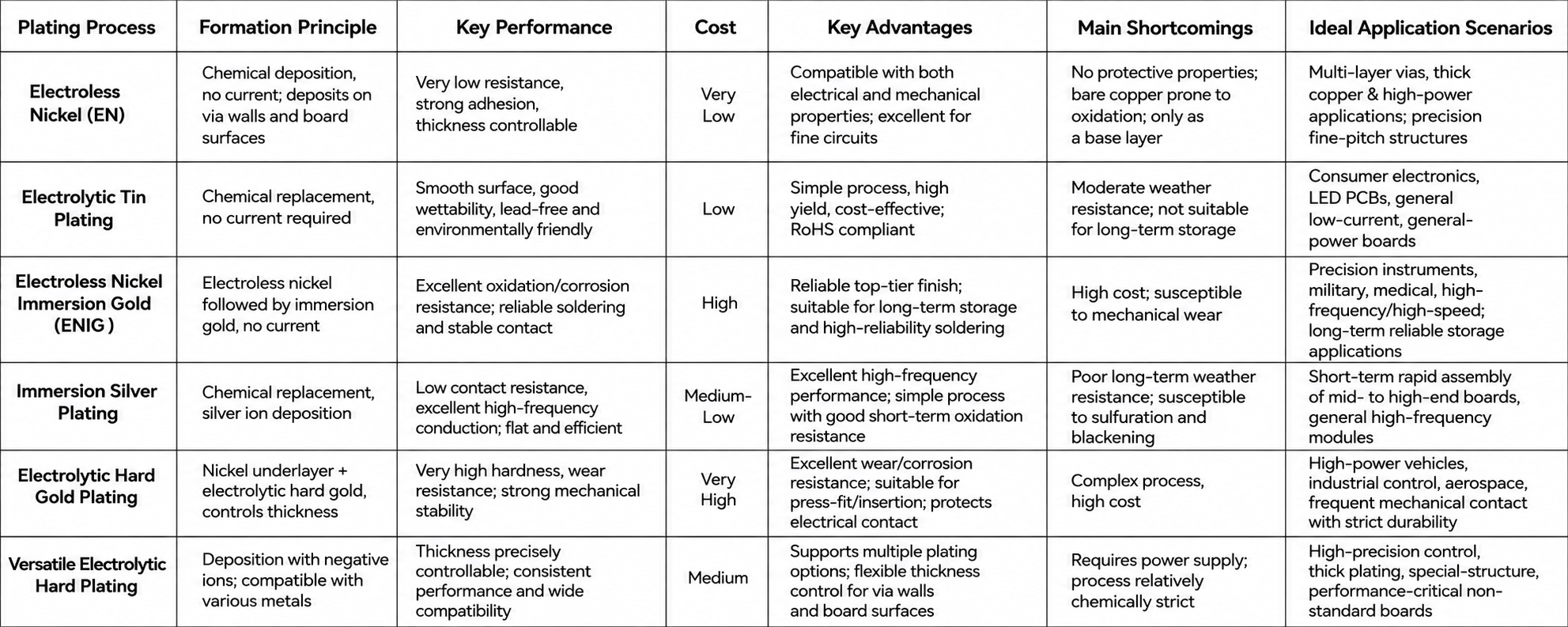

IV. At-a-Glance Comparison Table of Key Process Parameters and Application Scenarios

Quick Selection Guide:

· Cost-Driven Basics → Copper Plating + Immersion Tin

· Short-Term Production → Immersion Silver

· High-Reliability & Long-Term Storage → ENIG

· Harsh Mechanical/Friction Conditions → Electrolytic Hard Gold

· Non-Standard Customization → General Electrolytic Plating

Making the right selection is key to unlocking the ultimate performance and longevity of ceramic substrates.

With our comprehensive electroplating process capability matrix and full-process ceramic substrate manufacturing experience, Kinji Group offers one-stop, high-reliability ceramic circuit board services—from solution selection to mass-production delivery.
