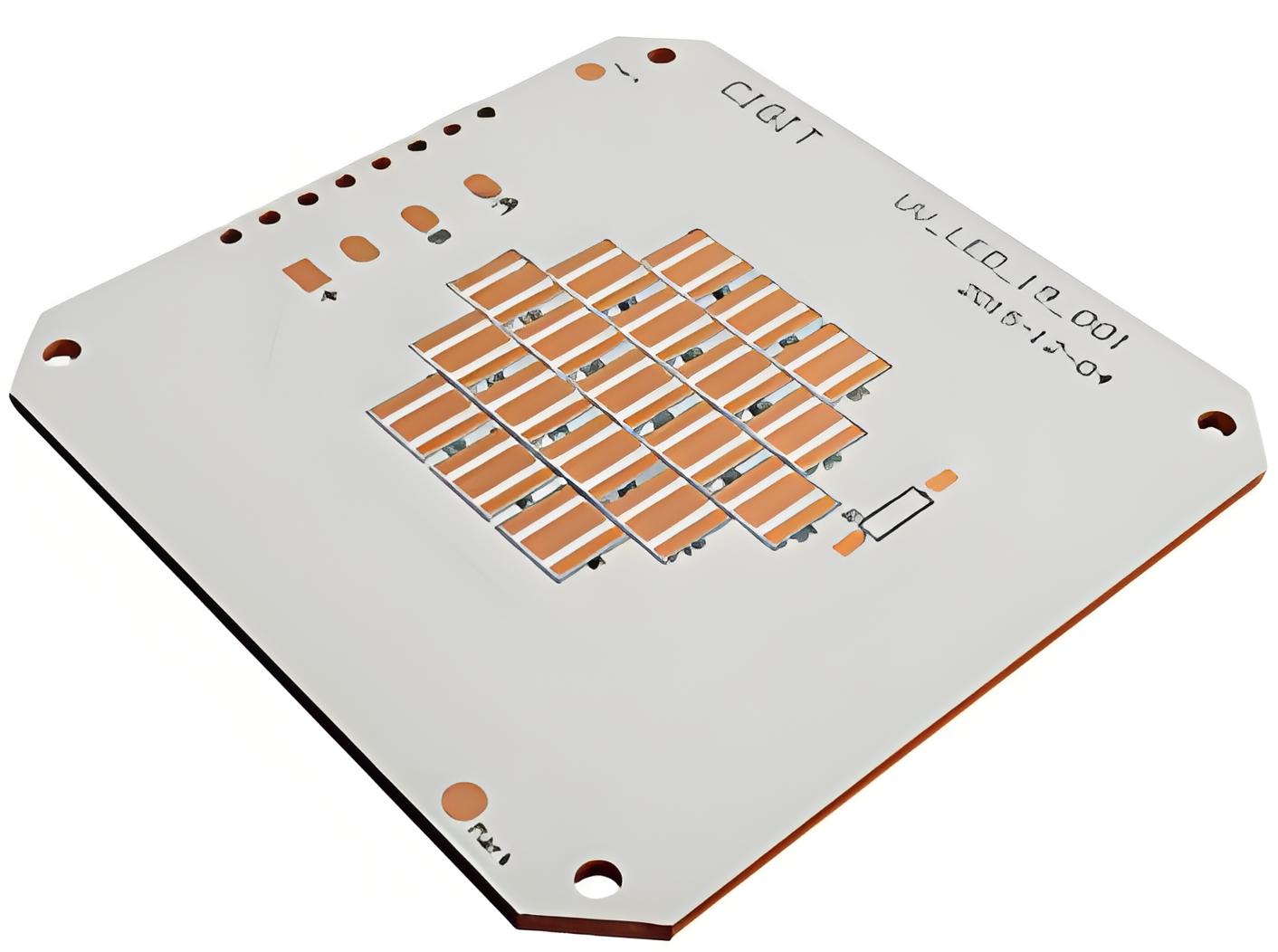

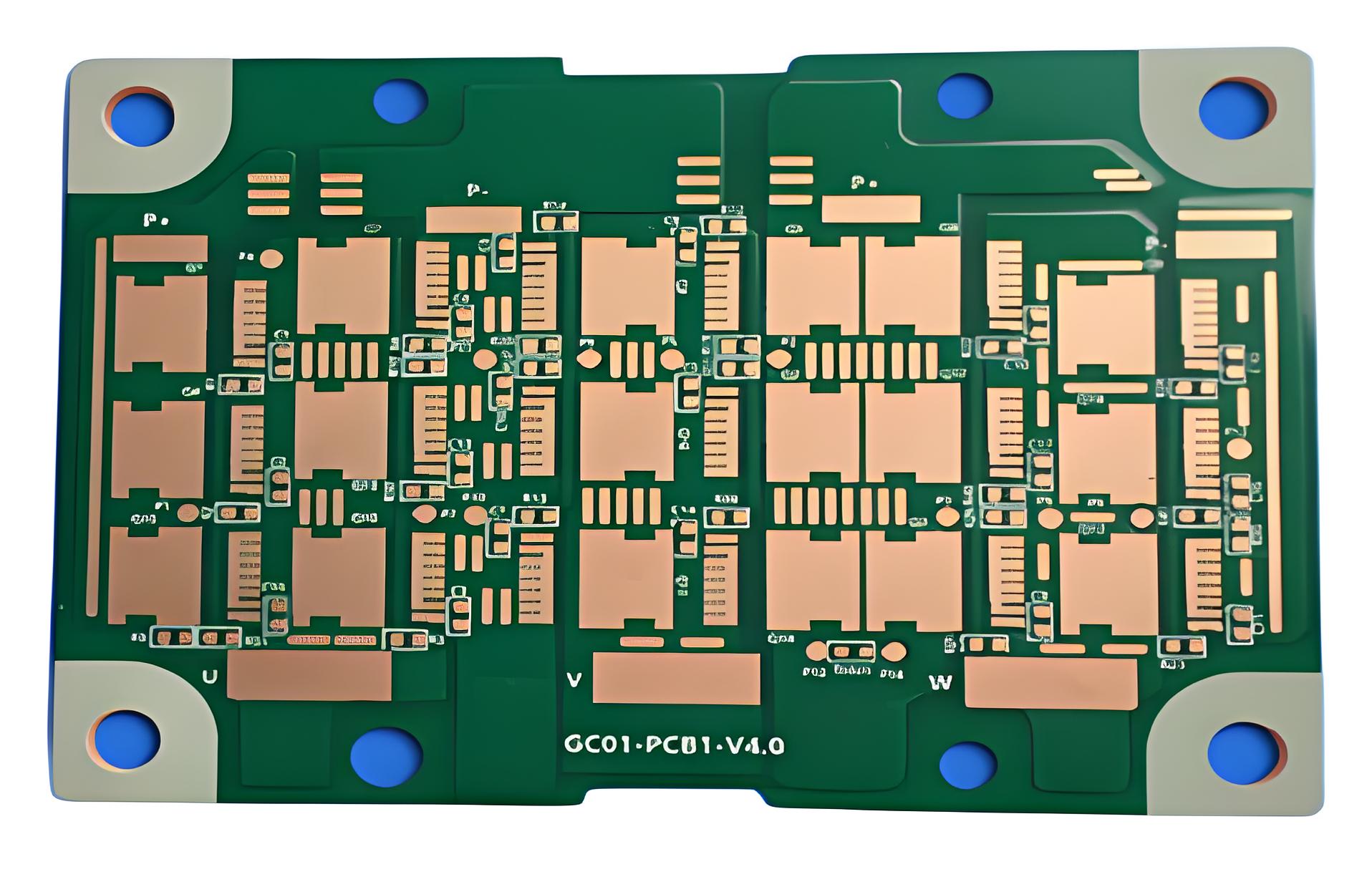

PRODUCT DETAILS
Board Thickness: 1.0mm
Withstand Voltage KV: 2500KV/AC
Raw Material: T2 Purple Copper
Copper Thickness: 35um
Thermal Conductivity: Direct Conduction Heat Dissipation
Ink: Taiyo Ink
Surface Treatment: OSP/Immersion Gold
Process Description: Convex Plate Thermoelectric Separation
Shape Process: Model Stamping + Computer V-Cut
UL Certification: Yes
Automotive Certification: ISO/TS16949
PRODUCT RECOMMENDATION
-
See details- LED Automotive Lamp Double-Sided Copper Substrate
- Number of Layers: 2 Layers
- Board Thickness: 1.0-5.0mm
- Surface Treatment: HASL LF/Immersion Gold/OSP
-

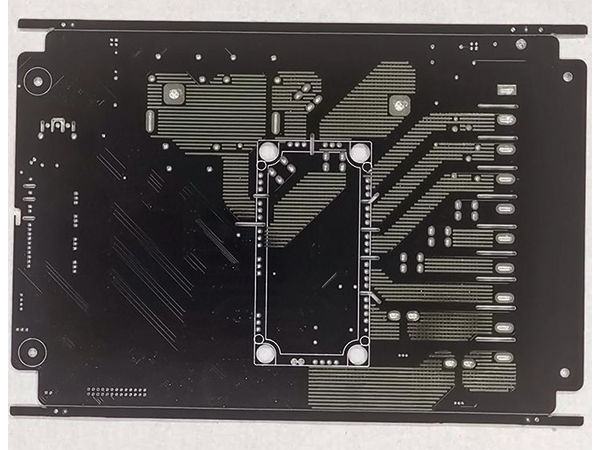

See details- Thermoelectric Separation of Copper Substrate
- Number of Layers: 2 Layers
- Board Thickness: 1.6mm
- Surface Treatment: OSP
-

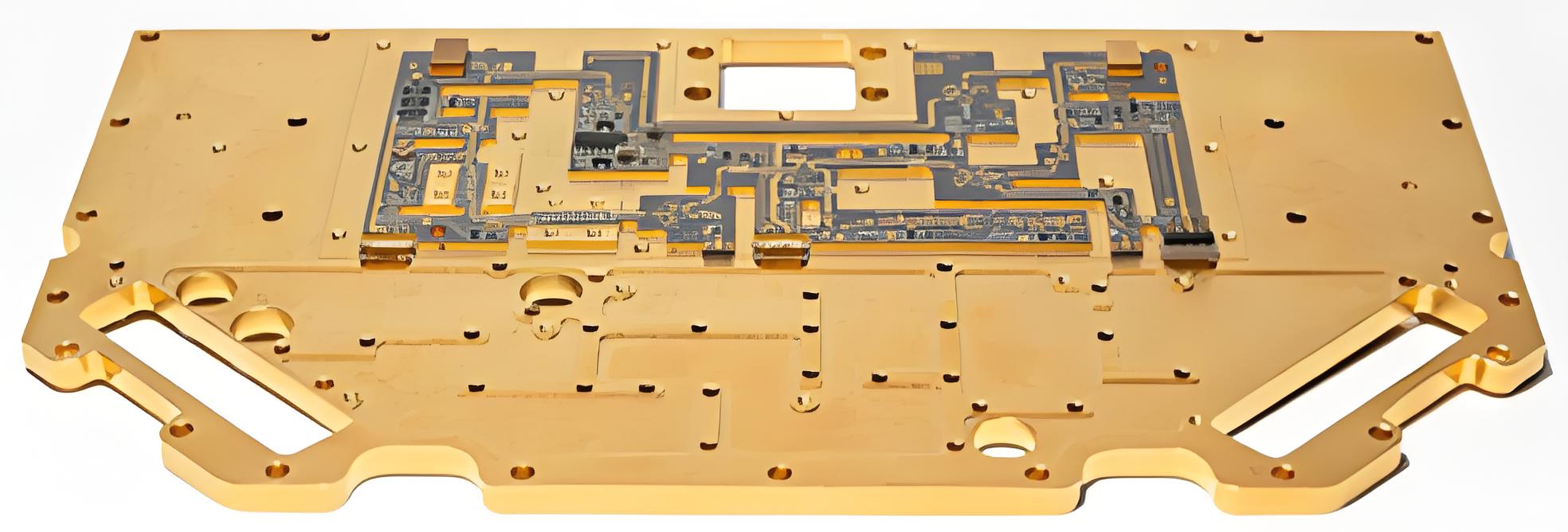

See details- Double-Sided Copper Substrate
- Number of Layers: 2 Layers
- Board Thickness: 2.0mm
- Surface Treatment: Immersion Gold
-

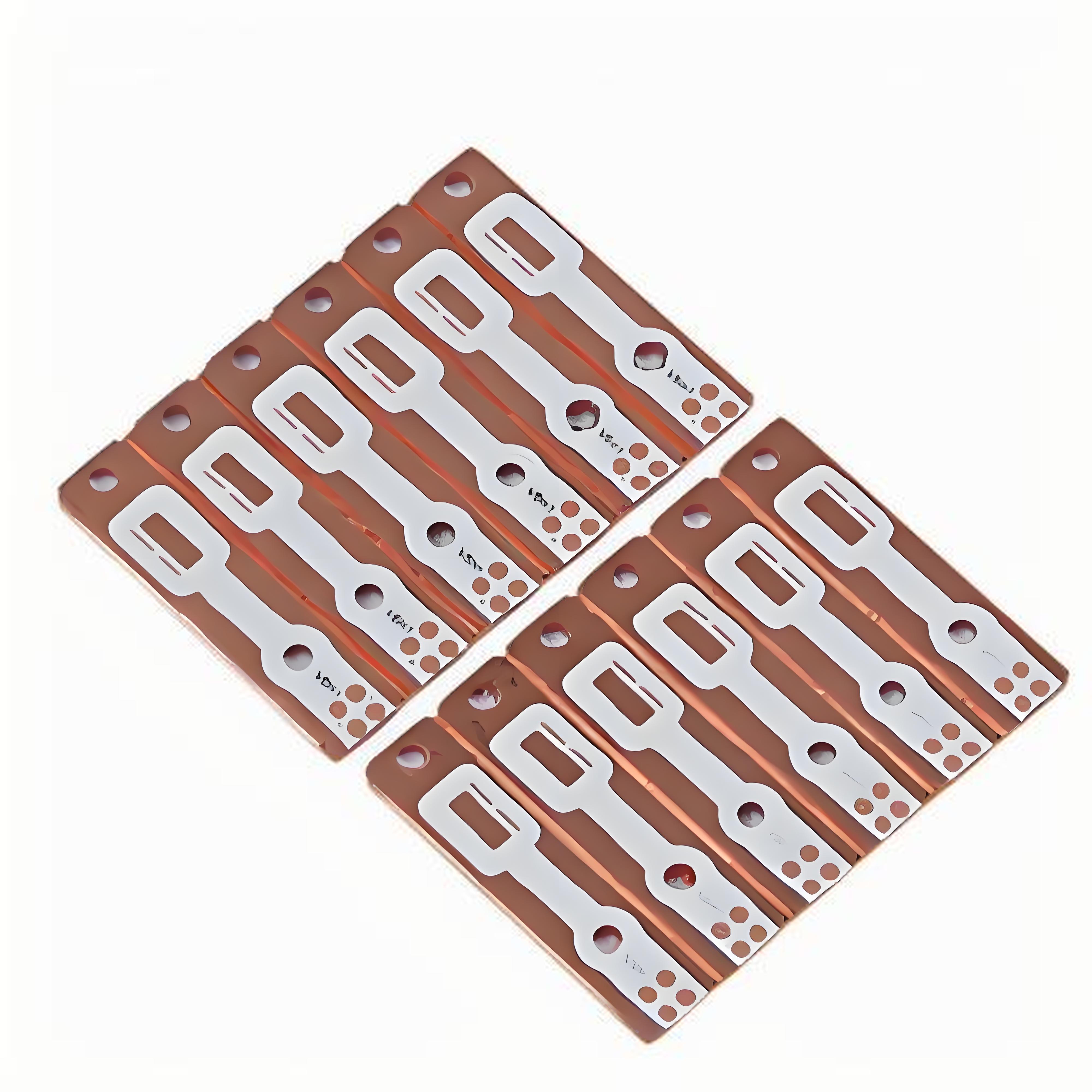

See details- 4 Layers Immersion Gold Copper Substrate
- Number of Layers: 4 Layers
- Board Thickness: 5.6mm
- Surface Treatment: Immersion Gold
-

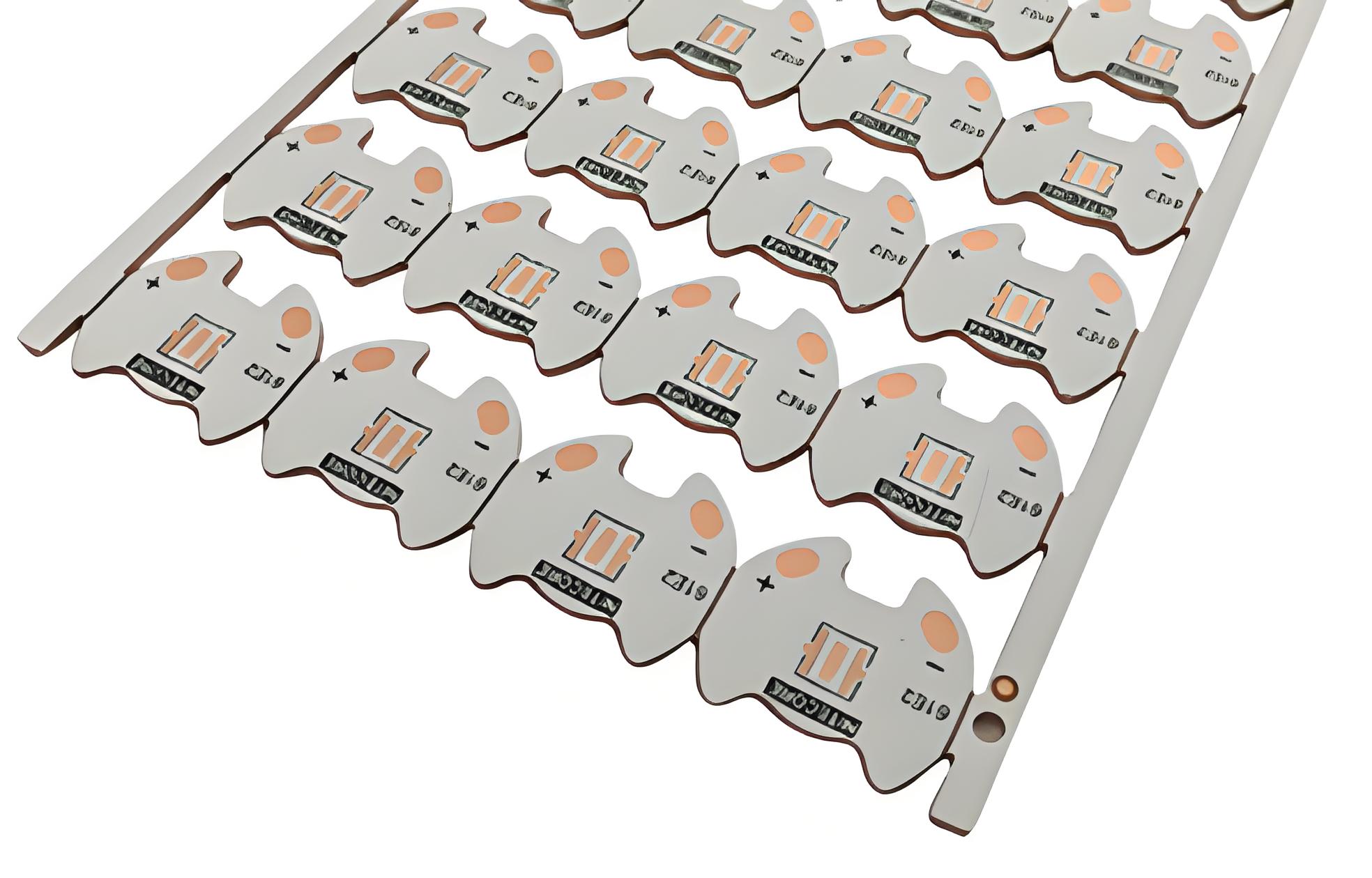

See details- Step Copper Substrate PCB
- Number of Layers: 2 Layers
- Board Thickness: 6.5mm
- Surface Treatment: Immersion Gold
-

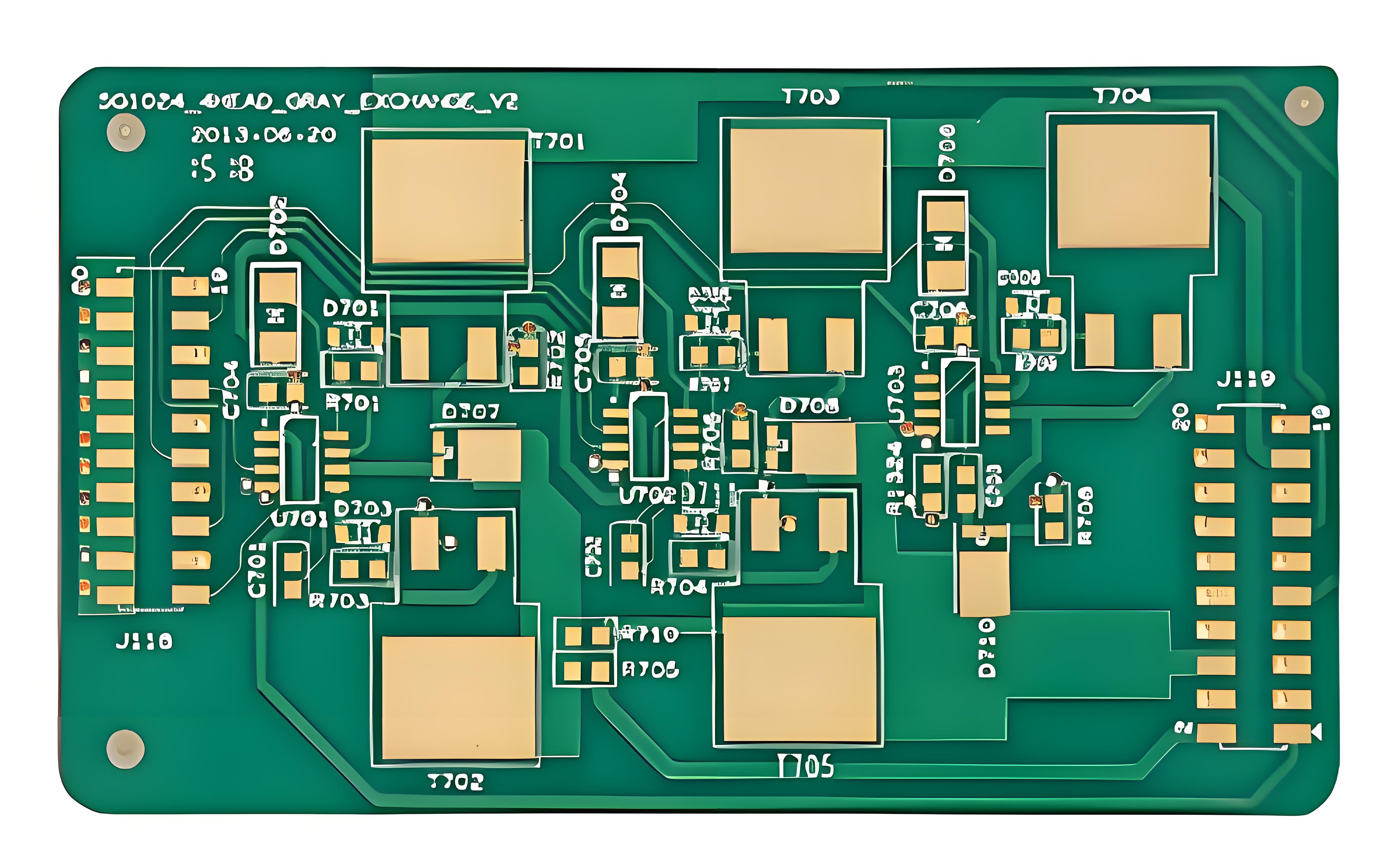

See details- 2 Layers EV-Charger Copper Substrate PCB
- Number of Layers: 2 Layers
- Board Thickness: 4.0mm
- Surface Treatment: Immersion Gold
-

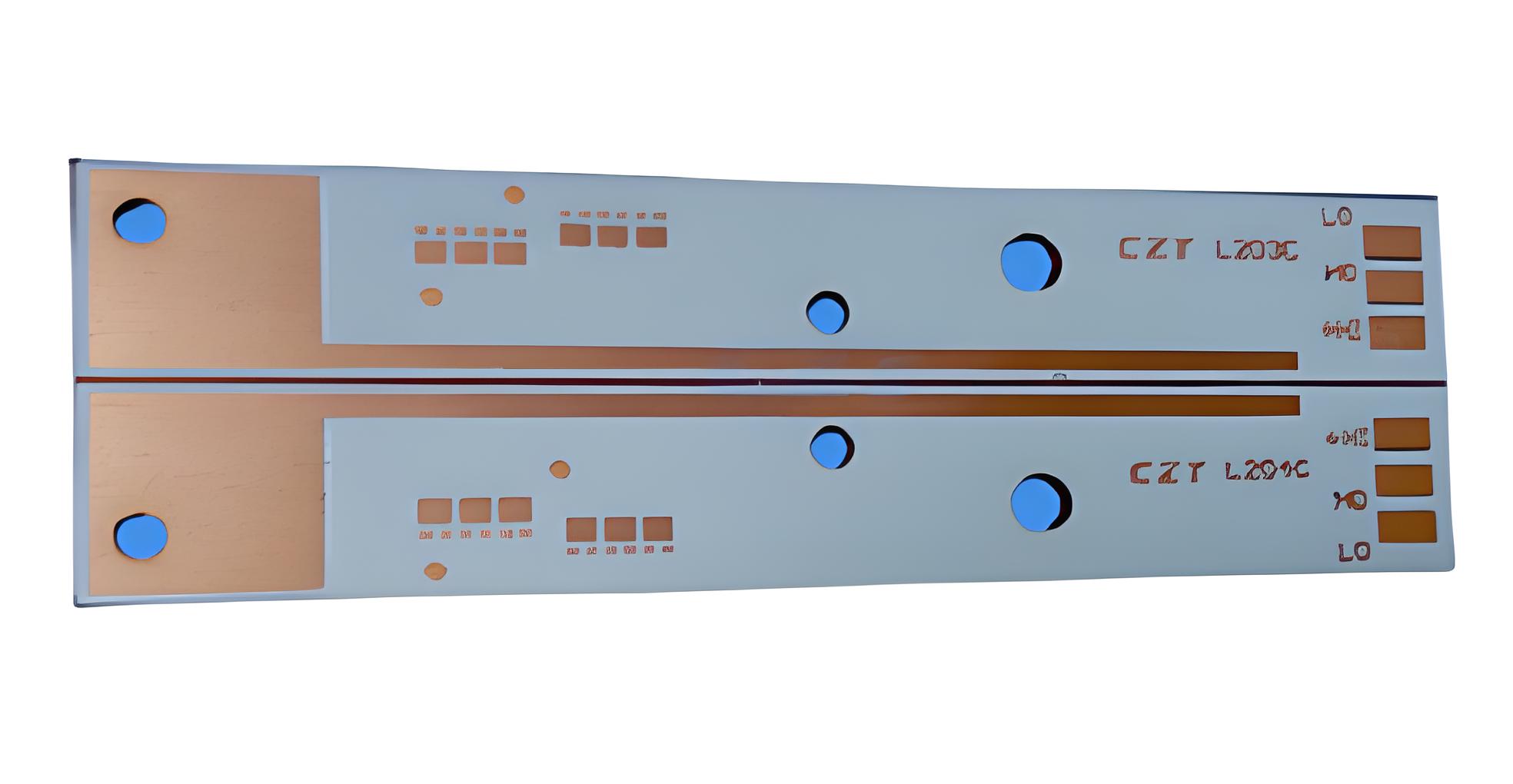

See details- 1.0mm Single-Sided Copper Substrate
- Number of Layers: Single-Sided
- Board Thickness: 1.0mm
- Surface Treatment: OSP
-
See details- New Energy Vehicles Copper Substrate PCB
- Number of Layers: 4 Layers
- Board Thickness: 2.0mm
- Surface Treatment: Immersion Gold
