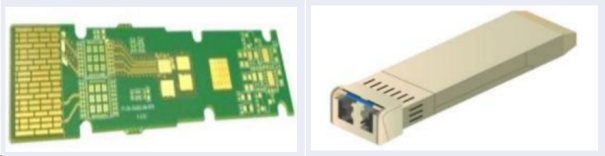

8 Layer Megtron 6 High-Frequency HDI PCB
Board Material Type: High-frequency material
Number of Layers: 8
Board Thickness: 0.8
Surface Treatment: Selective ENIG Finish
Mini. Line Width/Distance: 0.075

PRODUCT DETAILS

Layers8
Finished Thickness(mm)0.8
Material typeMG6
Copper thickness(oz)1 oz (all Layers)
Minimum aperture (mm)0.15
Minimum line width/line spacing (mm)0.075
Other characteristicsHDI design with Via in Pad (POFV) and Selective ENIG
