Qinji 10-Layer 1+1 HDI Board for New Energy Power Electronics

In the field of new energy power electronics (PV / energy storage / EV charging piles), PCBs are subject to extremely high requirements for precision, reliability and integration density. The 10-layer 1+1 HDI board launched by Qinji  PCB Cloud is a high-performance solution designed to meet these stringent demands.

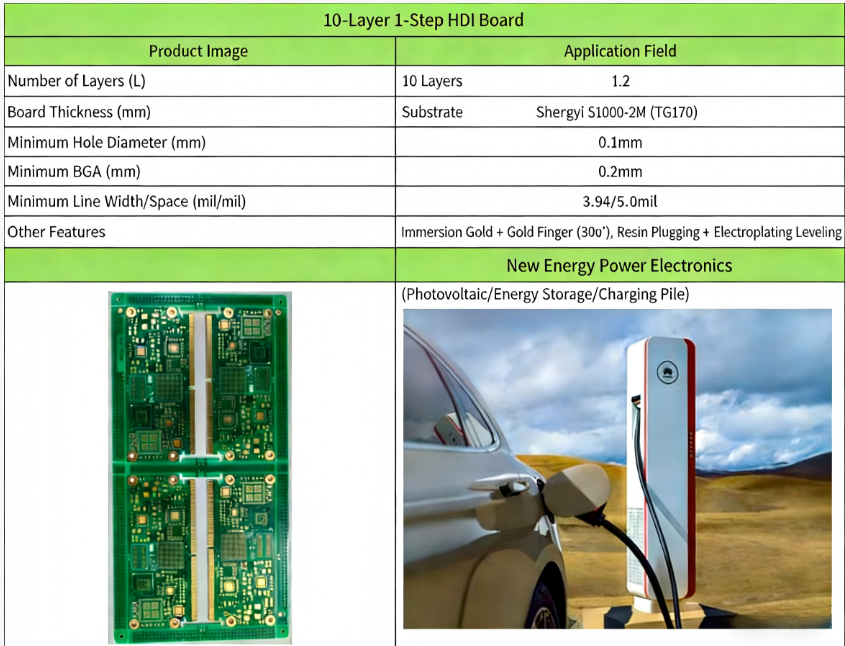

Core Technical Specifications

Product Advantages

Ultra-Precision for High-Density Integration

With a minimum aperture of 0.1 mm and minimum BGA pitch of 0.2 mm, this PCB supports highly compact component placement, perfectly matching core control modules in new energy equipment that demand strict space and performance constraints.

High-Reliability Materials for Harsh Environments

Built with Shengyi S1000-2M base material (TG170), it features outstanding thermal resistance and mechanical strength, ensuring long-term stable operation in high-temperature, high-humidity and high-vibration environments typical of new energy applications.

Advanced Processes for Signal Integrity

Immersion gold + gold fingers (30μ") deliver excellent corrosion resistance and electrical conductivity, guaranteeing stable transmission of critical signals. Resin plug-hole and electroplating filling technology effectively improve surface flatness, providing a reliable foundation for high-density surface mounting.

Qinji 10-Layer 1+1 HDI Board Product Showcase

Application Cases

Case 1: Control Board for High-Power DC EV Charging Piles

Customer Requirements: A leading EV charging pile manufacturer needed a new-generation control board for its 120 kW DC fast charger, requiring integration of multi-channel power management, high-speed communication and high-precision sampling circuits within a limited space, while maintaining stable performance in outdoor environments from -40℃ to 85℃.

Solution: Using the Qinji 10-layer 1+1 HDI board, its high-density wiring capability enabled integration of the core control unit and power drive unit, significantly reducing equipment size. Immersion gold and high-TG base material ensured stable electrical performance at extreme temperatures, and resin plug-hole technology enhanced mechanical strength to resist outdoor vibration.

Customer Value: Equipment volume reduced by 30%, failure rate decreased by 40%. Supported the customer in being among the first in the industry to pass strict outdoor reliability certifications, boosting market share by 15%.

Case 2: BMS Mainboard for Industrial & Commercial Energy Storage Systems

Customer Requirements: An energy storage system integrator required a BMS mainboard capable of managing over 200 series-connected battery strings for its 1 MWh industrial and commercial energy storage cabinet, with extremely high signal integrity and anti-interference performance to ensure accurate battery status monitoring.

Solution: The Qinji 10-layer 1+1 HDI board physically isolated analog signal acquisition areas from digital control areas through precise layer stacking, greatly reducing electromagnetic interference. Fine 3.94 mil line width provided sufficient routing space for high-density battery sampling circuits.

Customer Value: Battery status monitoring accuracy improved to within ±0.5%, system response speed increased by 25%. Helped the customer’s energy storage system achieve industry-leading cycle life and charge-discharge efficiency.

Case 3: Main Control Board for PV Grid-Connected Inverters

Customer Requirements: A PV inverter manufacturer needed a main control board for its new-generation string inverter to support higher MPPT (Maximum Power Point Tracking) efficiency, while withstanding strong electromagnetic radiation and day-night temperature fluctuations in PV power stations.

Solution: The 10-layer structure and HDI technology created efficient signal paths for the main control chip and peripheral circuits. The minimum 0.1 mm aperture allowed ultra-compact component layout. The high thermal resistance of S1000-2M base material ensured stable performance under full-load inverter operation.

Customer Value: Inverter conversion efficiency reached 98.8%, and MTBF (Mean Time Between Failures) in extreme environments exceeded 100,000 hours, helping the customer win multiple large overseas PV power station projects.

With profound technical expertise in special PCBs, Qinji provides one-stop solutions for the new energy industry from design to manufacturing. This 10-layer 1+1 HDI board embodies our technical strength and industry insights, empowering customers to seize opportunities in the fast-growing new energy market.Qinji 10-Layer 1+1 HDI Board: Precision Interconnection Solution for New Energy Power ElectronicsQinji 10-Layer 1+1 HDI Board: Precision Interconnection Solution for New Energy Power Electronics
