Home/ Products/ 2L FPCB, 1mil PI, 0.5oz Cu, size:9x8.94mm, Solder mask+coverlay, Immersion Gold

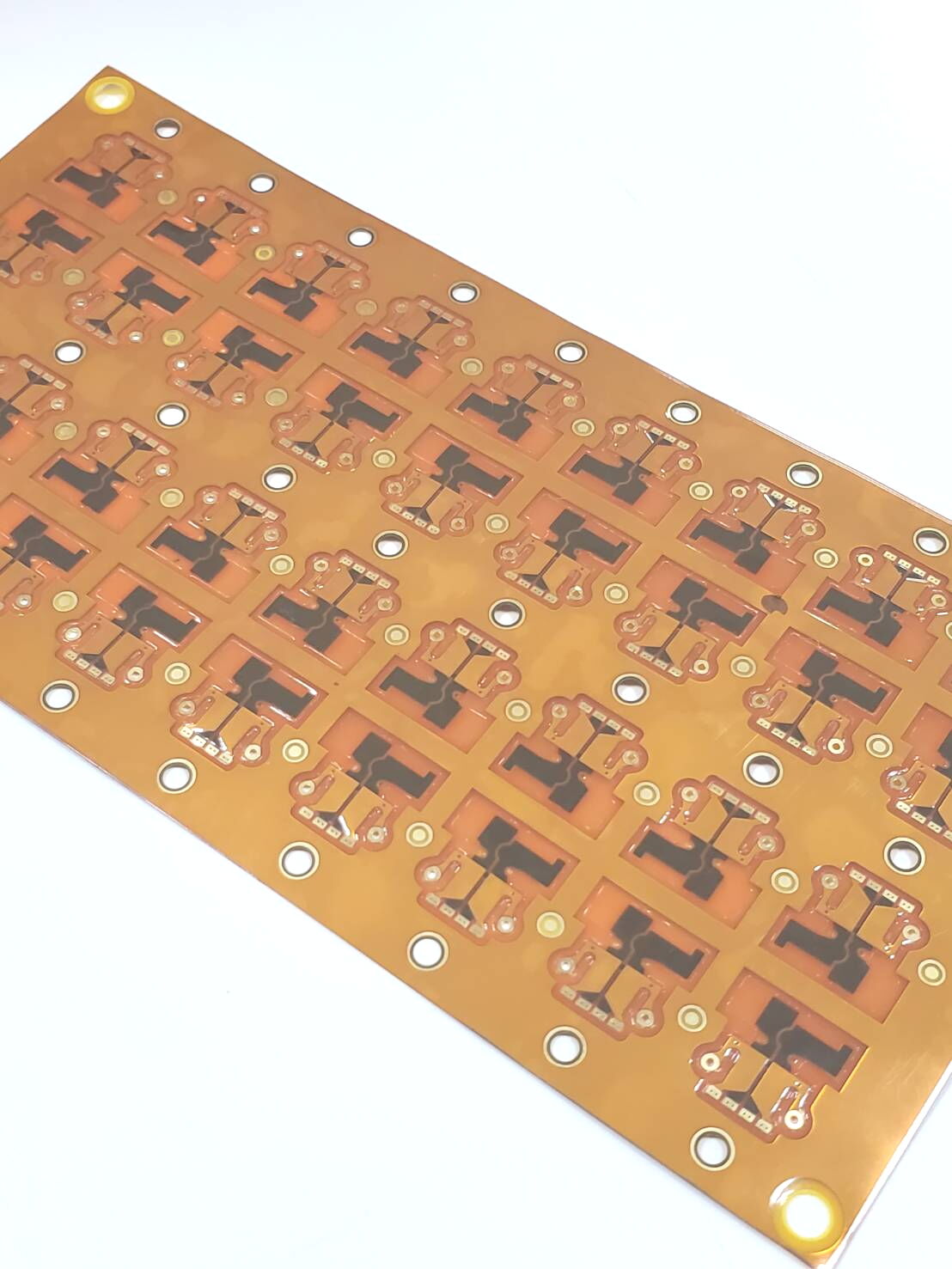

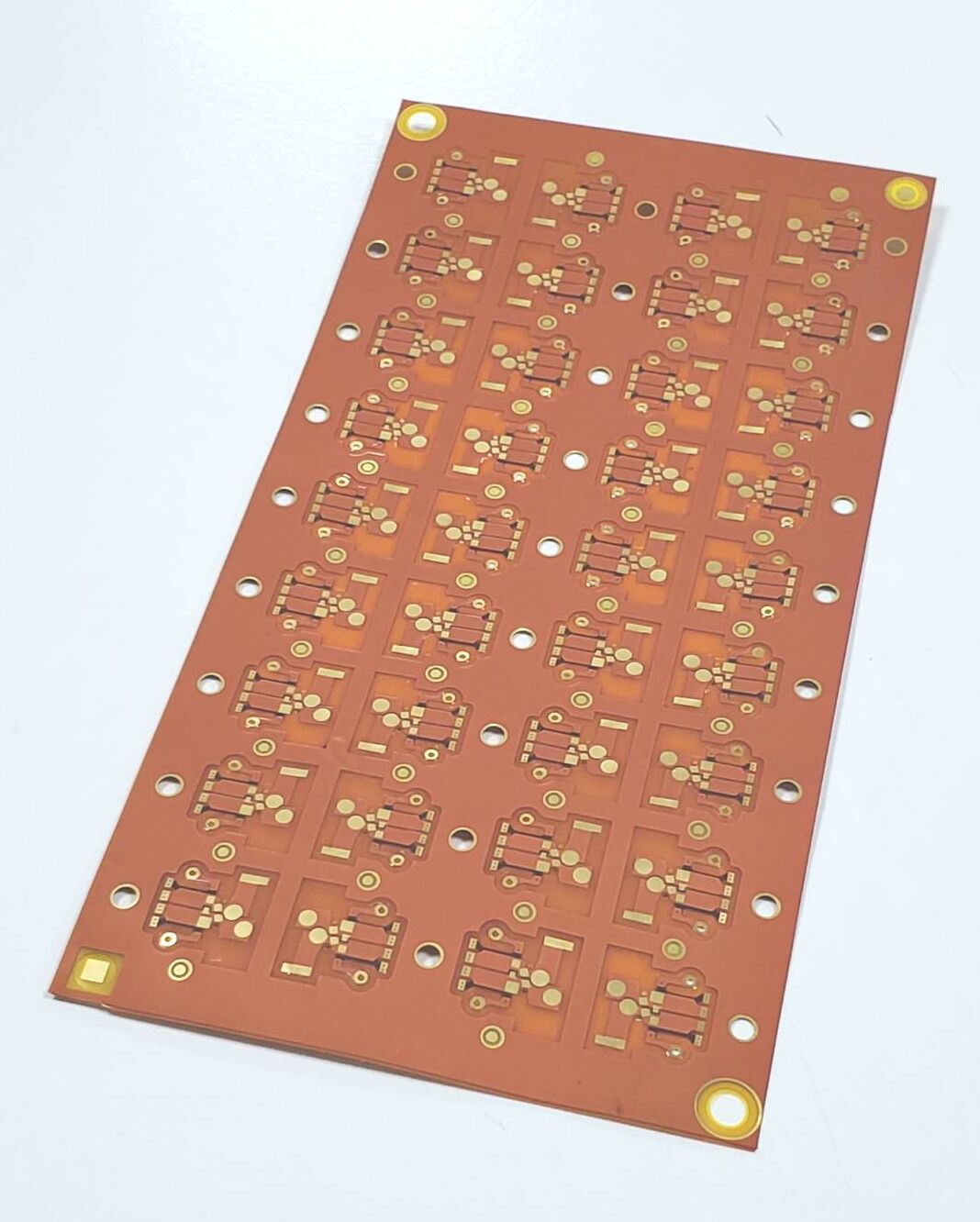

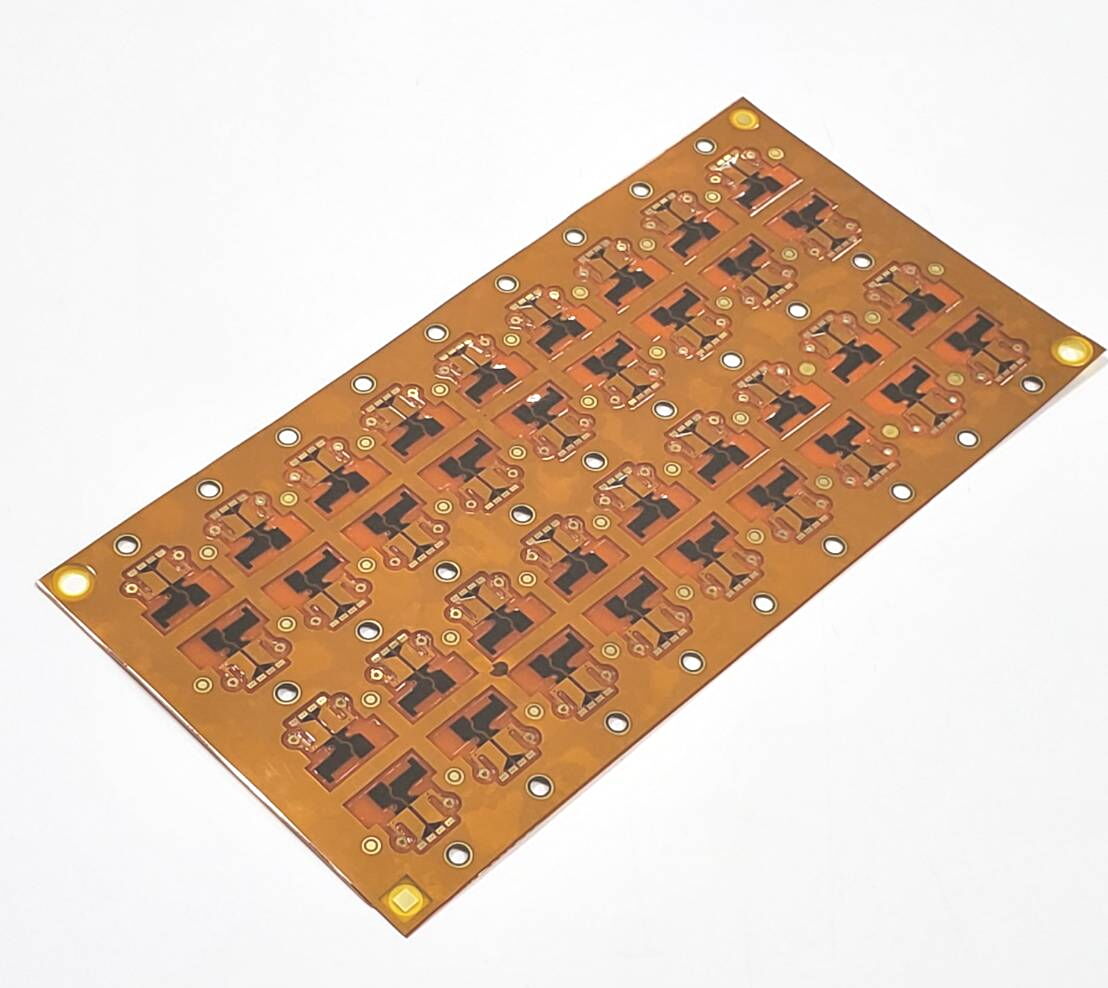

- 2L FPCB, 1mil PI, 0.5oz Cu, size:9x8.94mm, Solder mask+coverlay, Immersion Gold
- Board Material Type: PI
- Number of Layers: 2L
- Board Thickness: 1mil
- Surface Treatment: Immersion Gold(2u")
- Mini. Line Width/Distance:
PRODUCT DETAILS
Key Specifications/ Special Features:
Number of layers: Two layers
• Base material: 1mil PI
•Copper thickness: 0.5oz Cu
•size: 9 x 8.94mm
•36 pcs/PNL/117 x 60mm
•Solder mask(TOP): Yellow
•Coverlay(BOTTOM): Yellow
•Surface finishing: Immersion Gold(2u")
