Home/ Products/ 8L Rigid-Flex PCB, Thinflex W-2005RD+FR4 TU768(TG170),Impedance control, Edge Plating

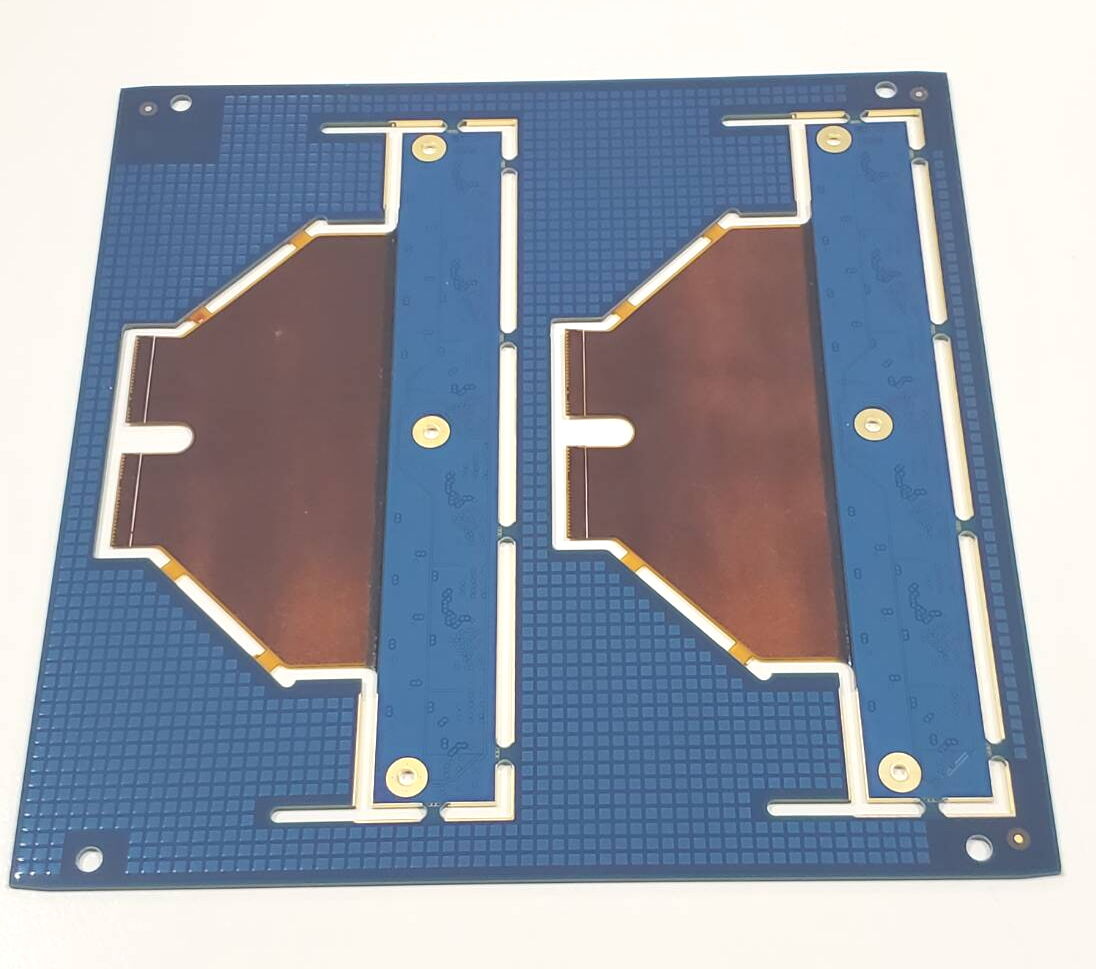

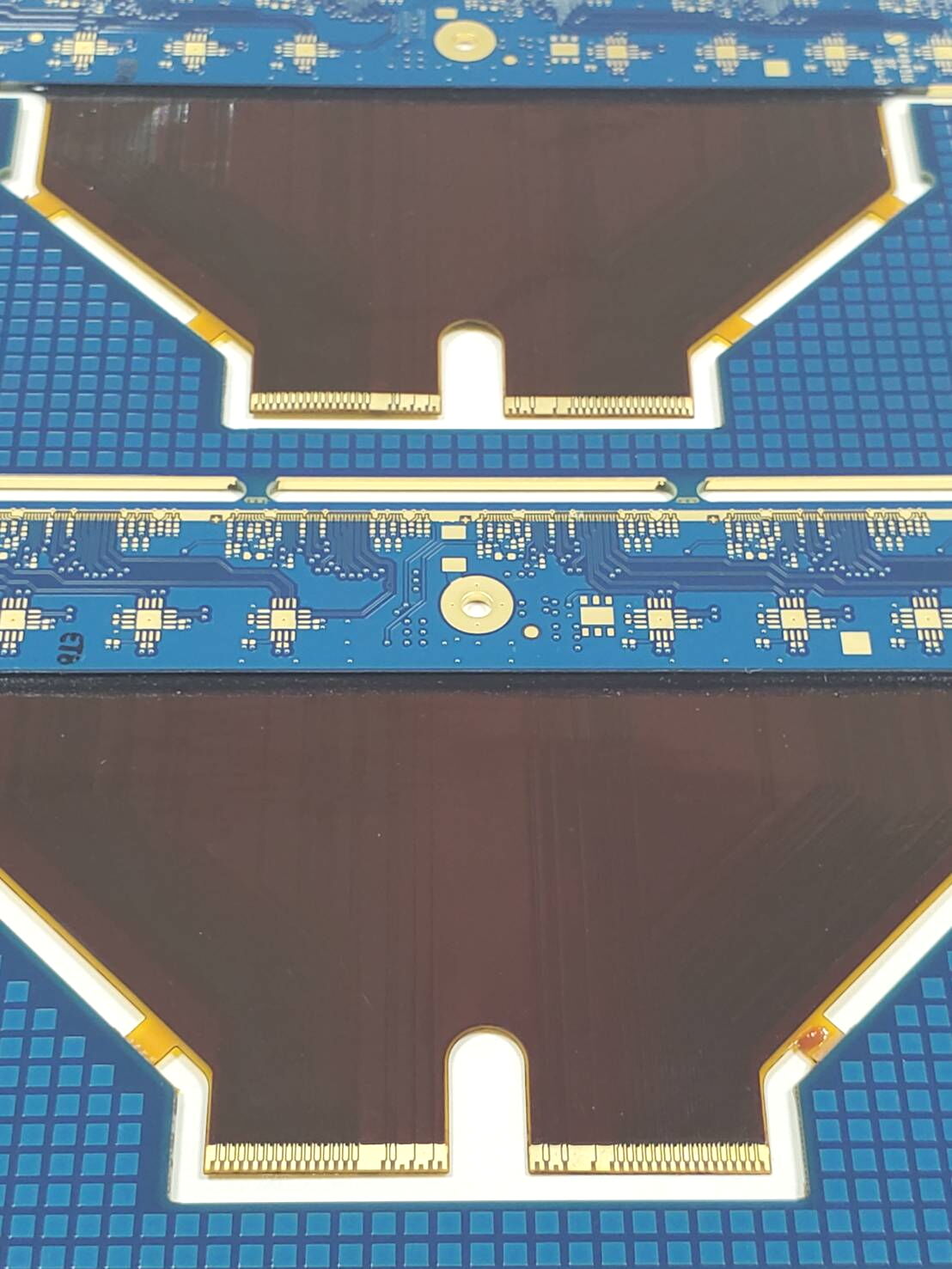

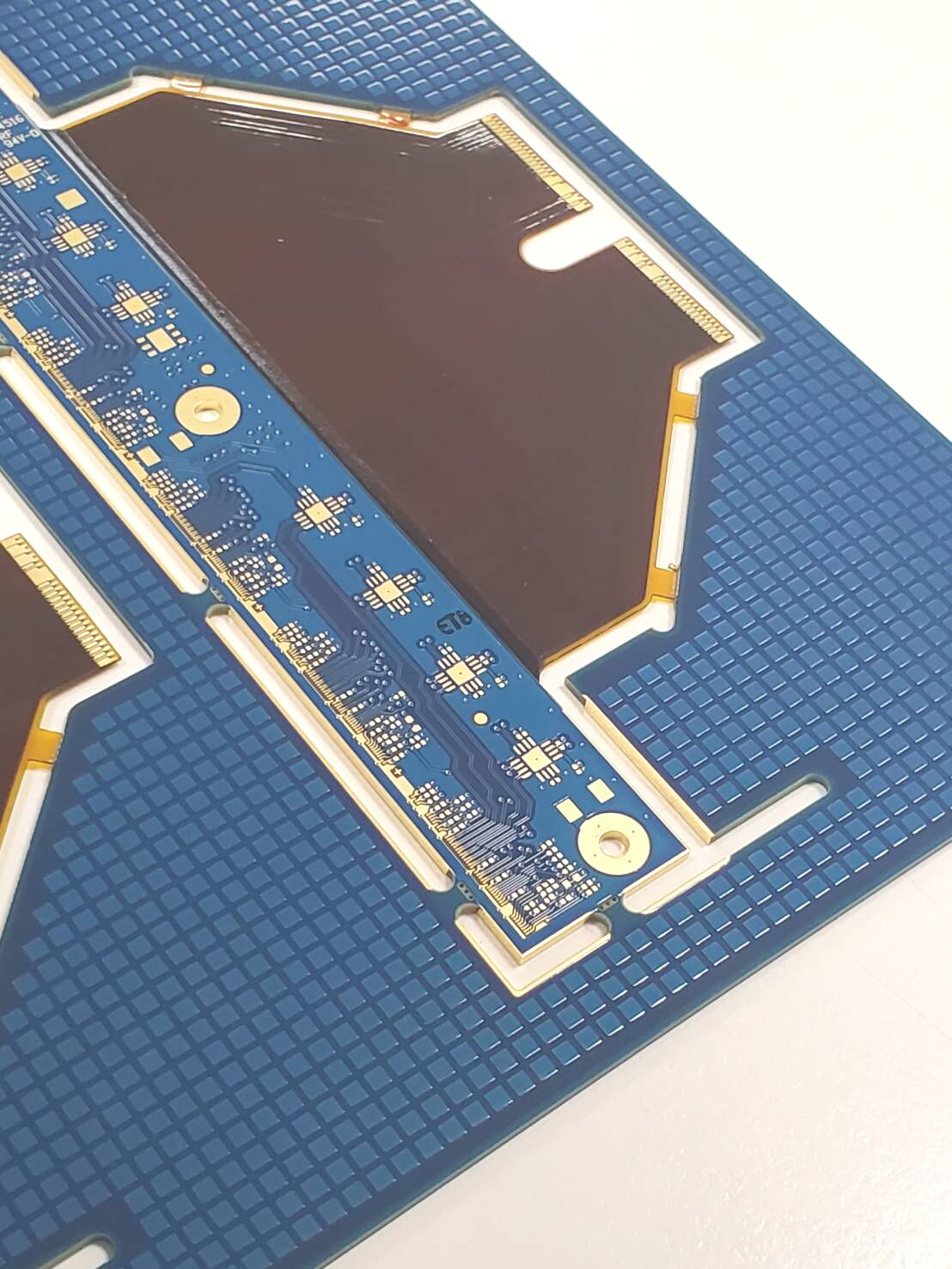

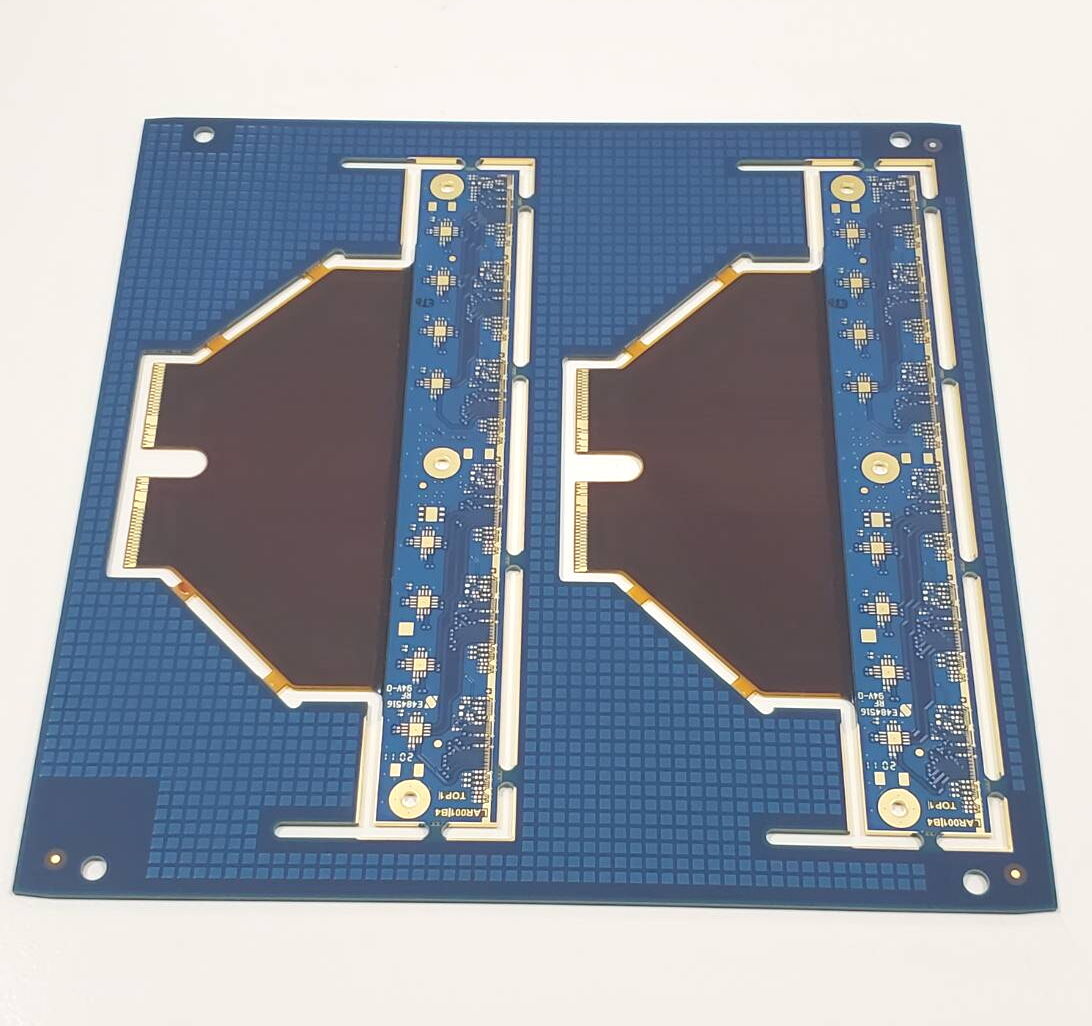

- 8L Rigid-Flex PCB, Thinflex W-2005RD+FR4 TU768(TG170),Impedance control, Edge Plating
- Board Material Type: Thinflex 1005RD + FR4 TU768(TG170)
- Number of Layers: 8L
- Board Thickness: 1.30mm
- Surface Treatment: Immersion Gold(2u")
- Mini. Line Width/Distance:
PRODUCT DETAILS
Key Specifications/ Special Features:
• Number of layers: Eight layers
•Base material: Thinflex 1005RD + FR4 TU768(TG170)
•Finished Board Thickness: 1.30mm
•Copper thickness: 1/1/1/0.5/0.5/1/1/1oz Cu
•Size: 55.10x 116.75mm
•2 pcs/PNL/135 x 136mm
•Soldermask:Blue (for PCB) + coverlay (for FPCB)
•Immersion Gold(2u")
•Impedance control
•Edge Plating
• ROHS
• IPC600 Class 2
<<Please Note>>
Kindly be informed that our production is always accorded to the file (100% provided from the customers).
So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.
Thanks!!
