Home/ Products/ 4L Rigid-Flex PCB, Thinflex Adhesiveless+FR4 TU862(TG170), Immersion Gold

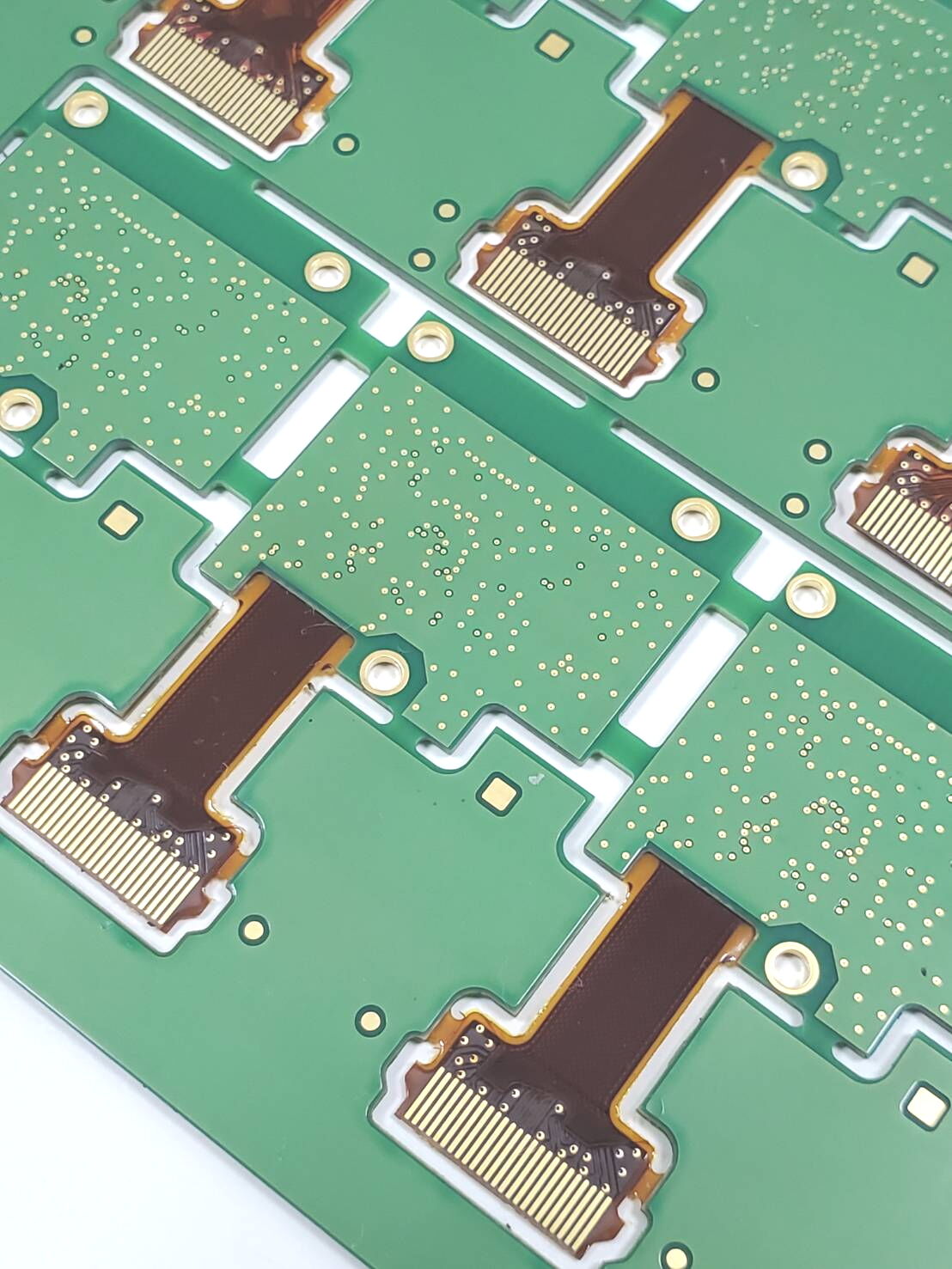

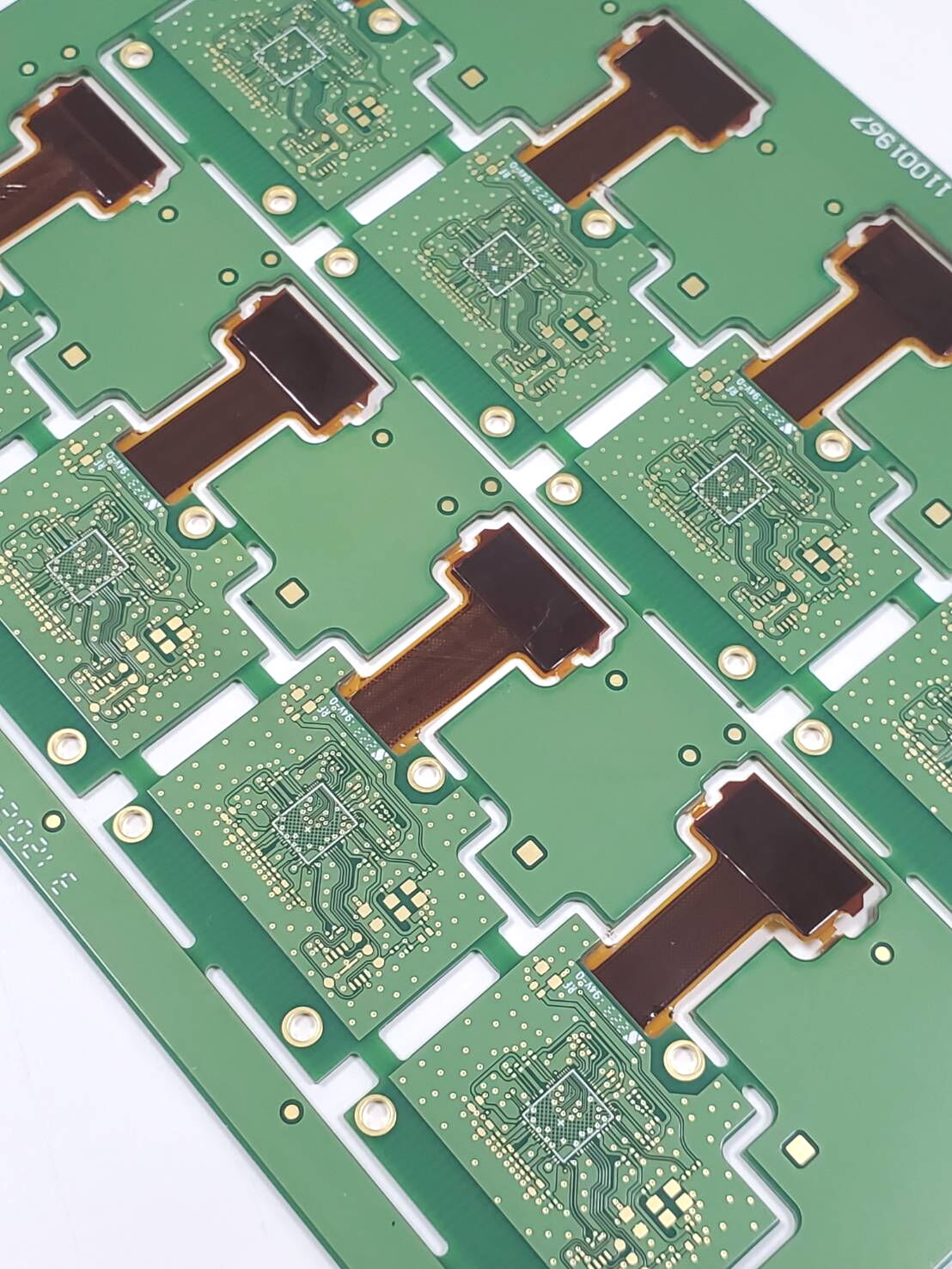

- 4L Rigid-Flex PCB, Thinflex Adhesiveless+FR4 TU862(TG170), Immersion Gold
- Board Material Type: Thinflex Adhesiveless + FR4 TU862(TG170)
- Number of Layers: 4L
- Board Thickness: 1.0mm
- Surface Treatment: Immersion Gold(2u")
- Mini. Line Width/Distance:
PRODUCT DETAILS
Key Specifications/ Special Features:
• Number of layers: Four layers
•Base material: Thinflex Adhesiveless + FR4 TU862(TG170)
•Finished Board Thickness: 1.0mm
•Copper thickness: 1/0.5/0.5/1oz Cu
•Size: 41.70x 26.55mm

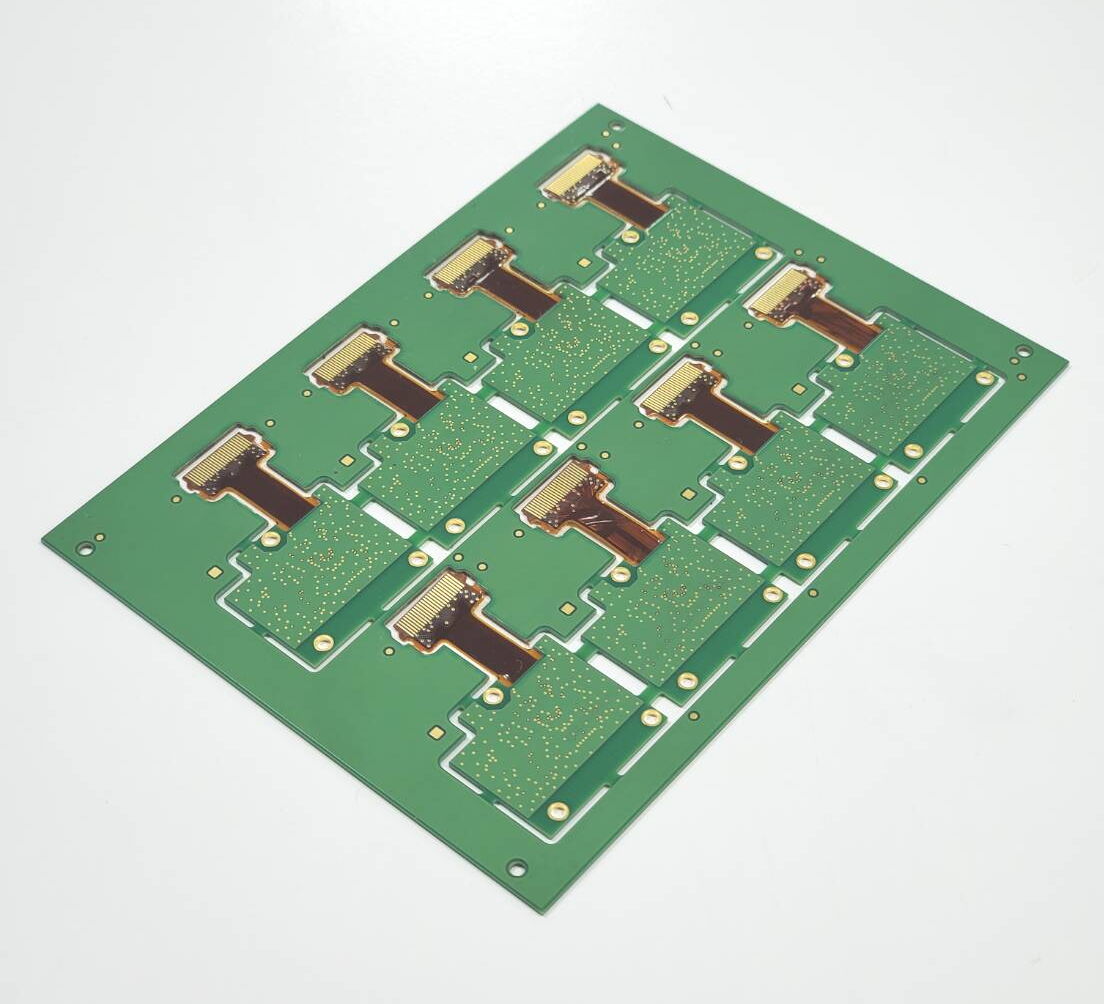

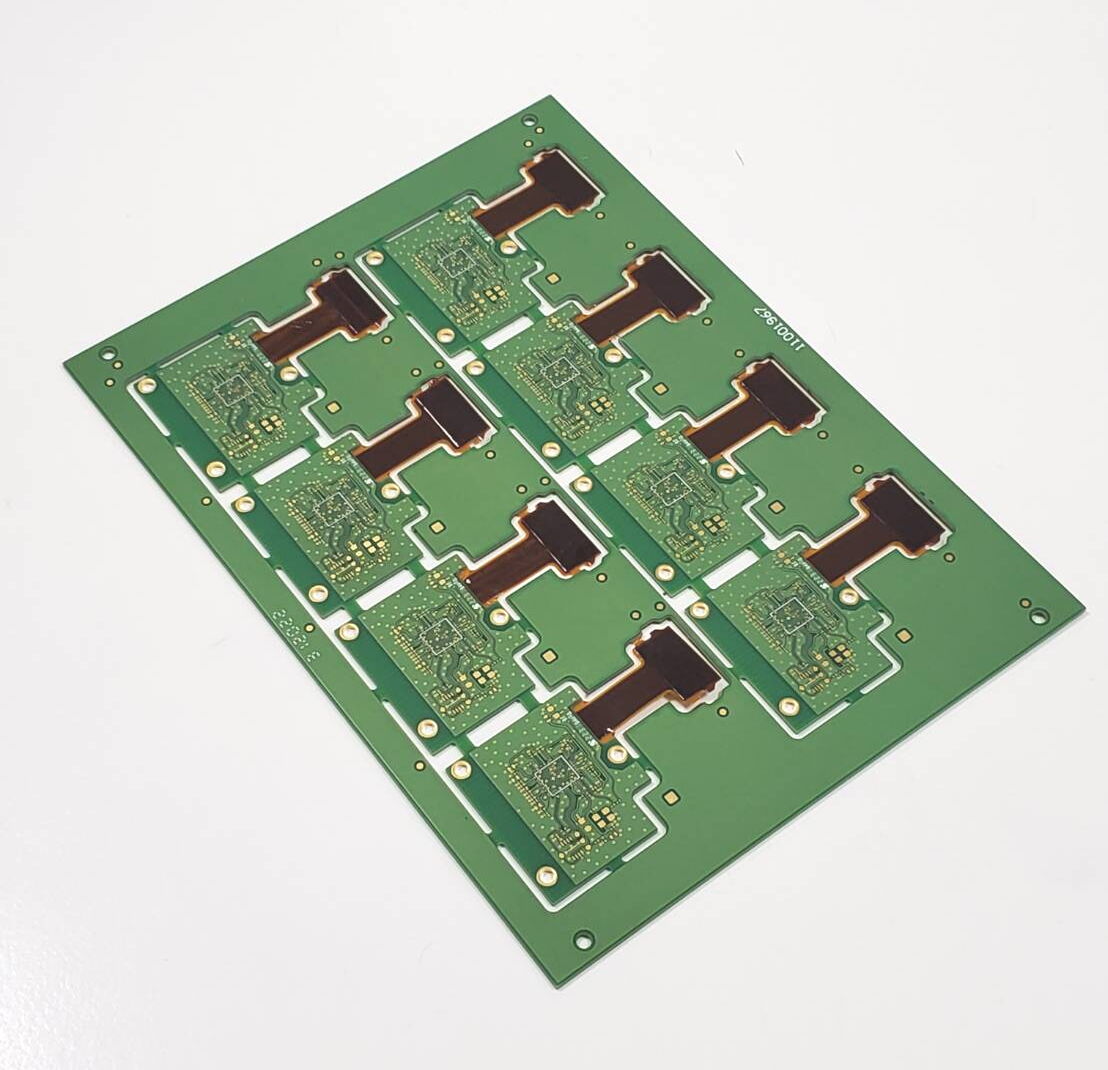

•8 pcs/PNL/101.60 x 136mm
•Soldermask:Green (for PCB) + coverlay (for FPCB)
•Immersion Gold(2u")
• ROHS
• IPC600 Class 2
<<Please Note>>
Kindly be informed that our production is always accorded to the file (100% provided from the customers).
So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.
Thanks!!
