Home/ Products/ 7L Rigid-Flex PCB, Thinflex Adhesiveless+FR4 TU862(TG170), Eccobond 45 Clear Applicable"

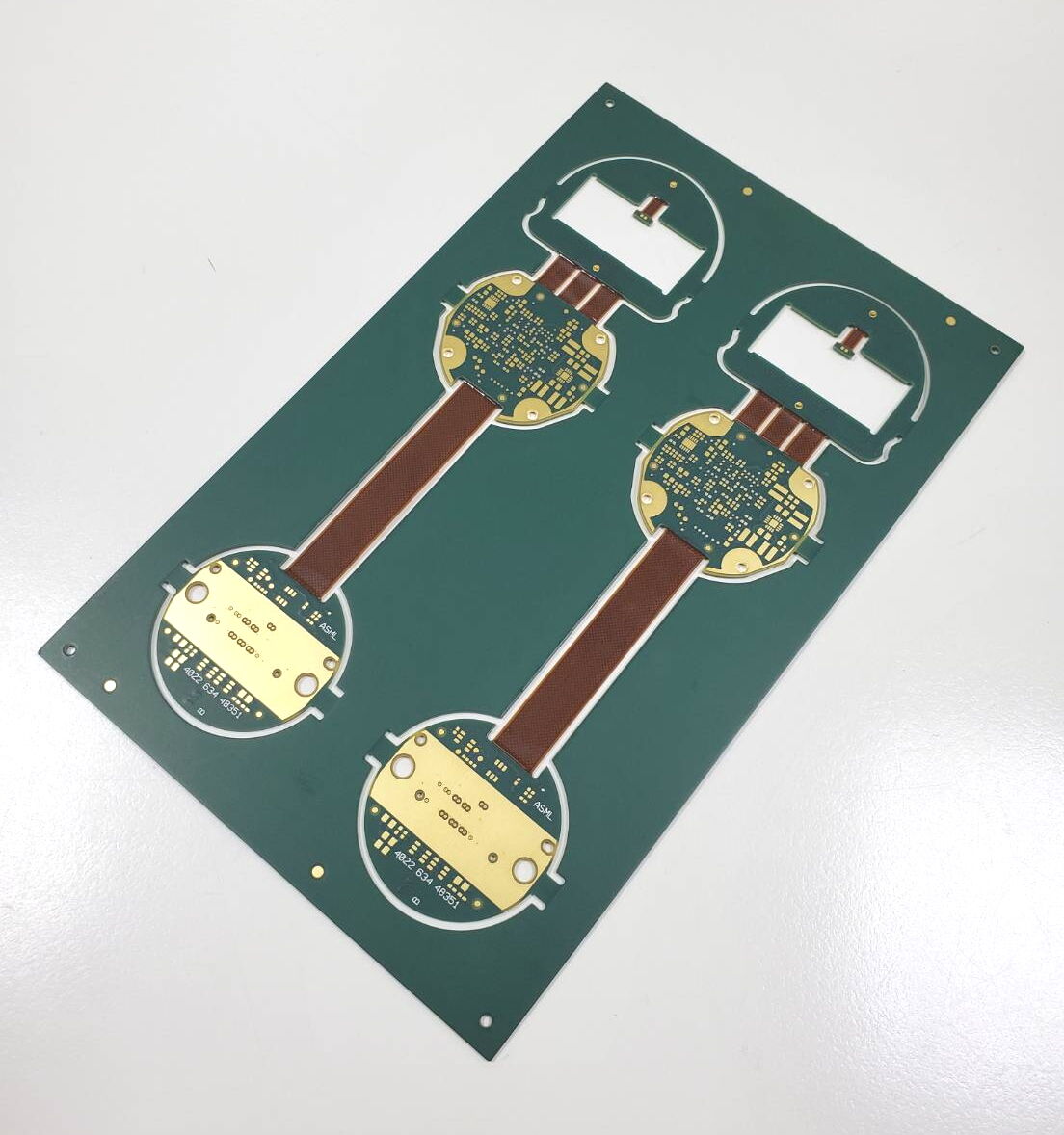

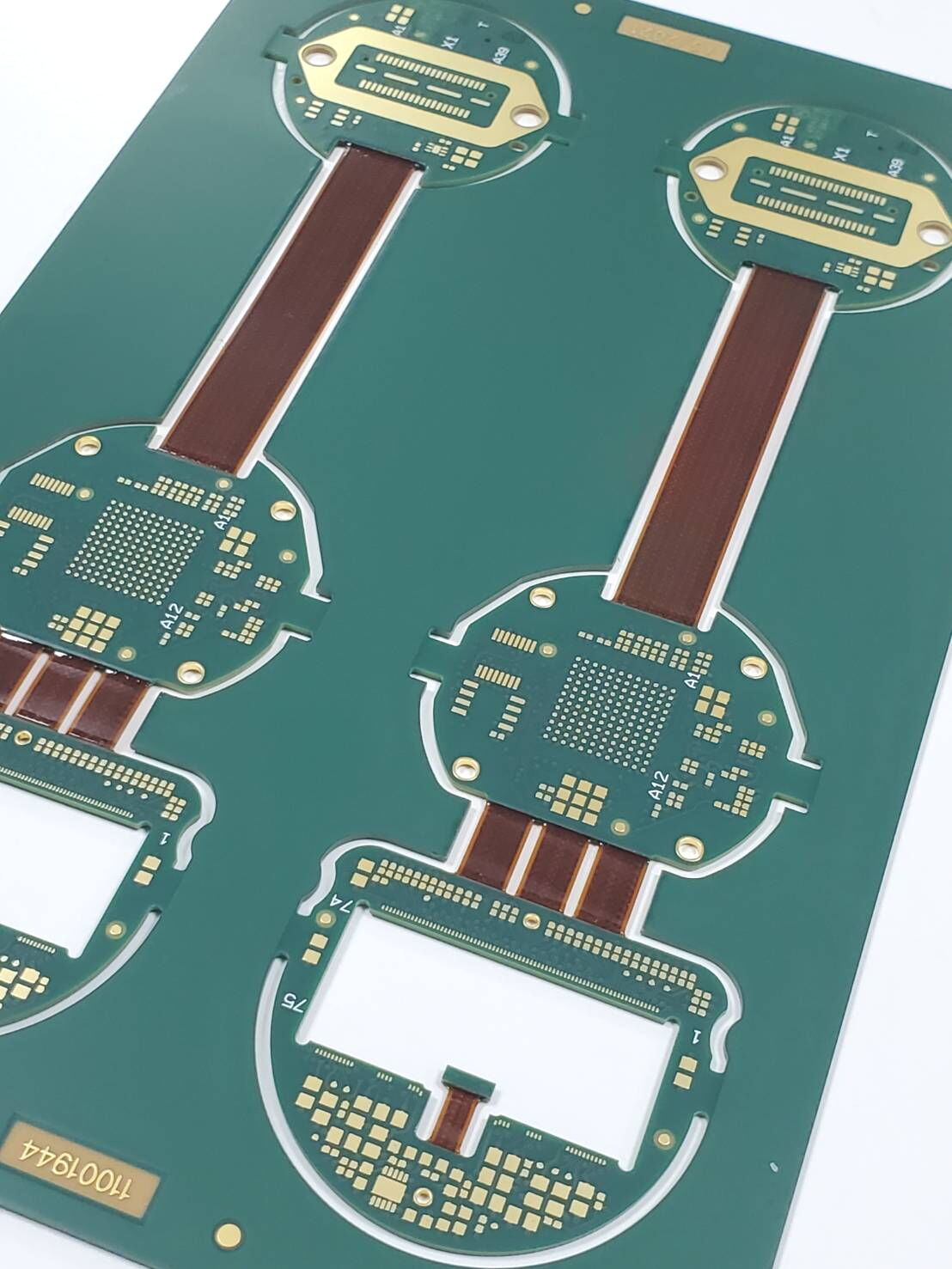

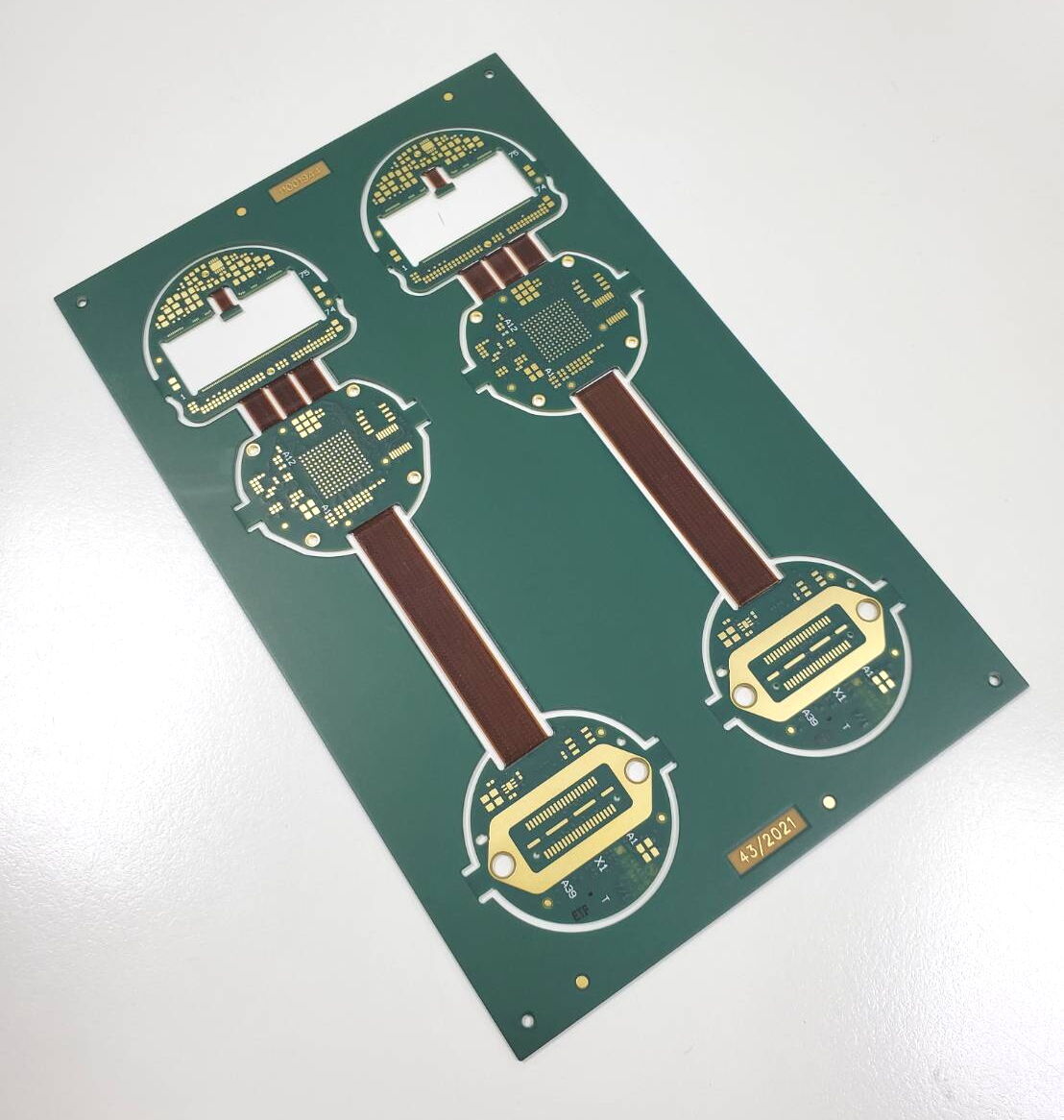

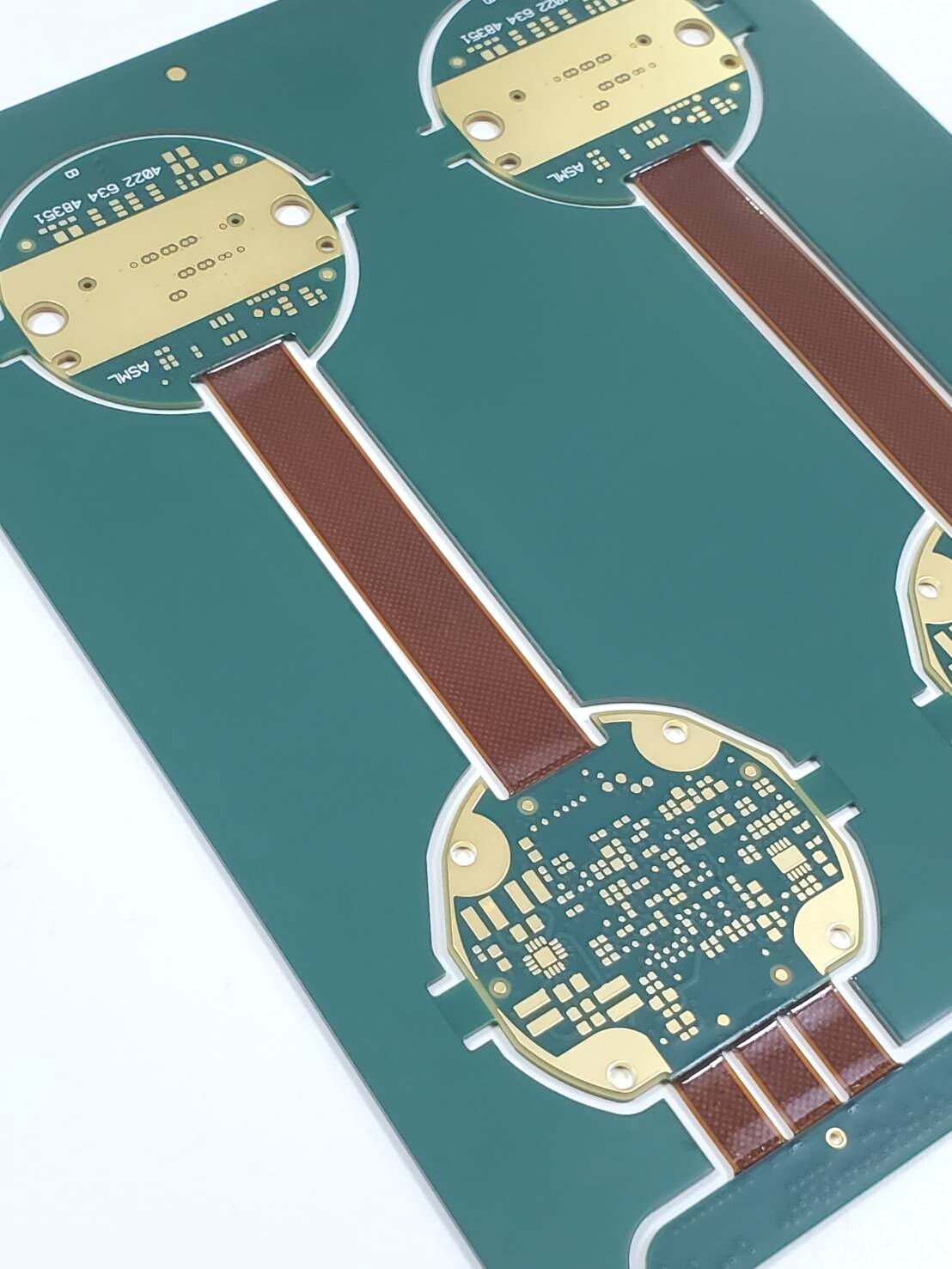

- 7L Rigid-Flex PCB, Thinflex Adhesiveless+FR4 TU862(TG170), Eccobond 45 Clear Applicable"
- Board Material Type: Thinflex Adhesiveless+FR4 TU862(TG170)
- Number of Layers: 7L
- Board Thickness: 1.10mm
- Surface Treatment: Immersion Gold(2u")
- Mini. Line Width/Distance:
PRODUCT DETAILS
Key Specifications/ Special Features:
• Number of layers: Seven layers
• Base material: Thinflex Adhesiveless+FR4 TU862(TG170)
• Finished Board Thickness: 1.10mm
• Copper thickness: 1/0.5/0.5/0.5/0.5/0.5/1oz Cu
• Size: 168.02x 41.70mm
• 2pcs/PNL/190 x 120mm
• Soldermask: Matt Green (for PCB) + coverlay (for FPCB)
• Immersion Gold(2u")
• Impedance control
• Eccobond 45 Clear Applicable
• ROHS
• IPC600 Class 2
<<Please Note>>
Kindly be informed that our production is always accorded to the file (100% provided from the customers).
So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.
Thanks!!
