Home/ Products/ 4L HDI PCB by Panel Array with FR4 Base Material and 1.0mm Thickness, LPI(Green), Blind Vivs L1-L2

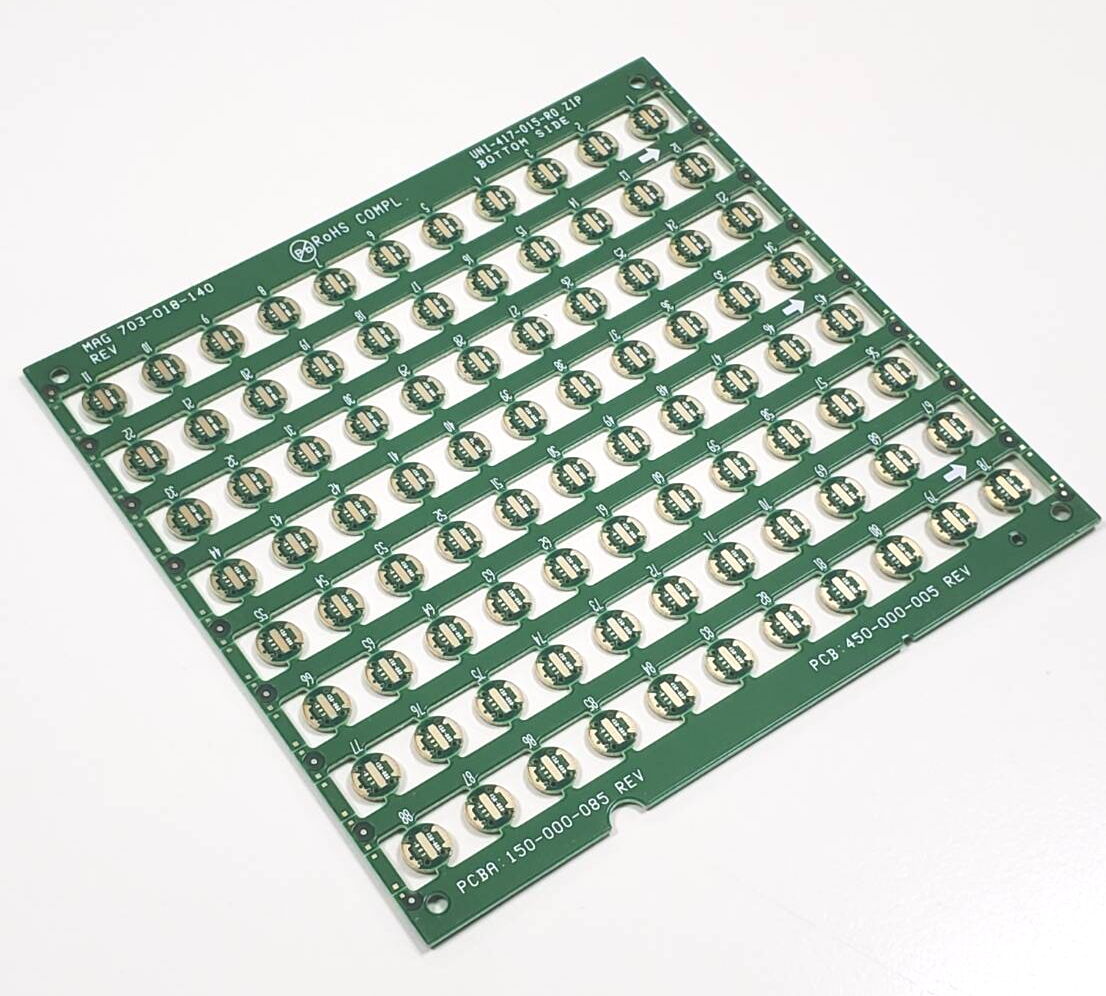

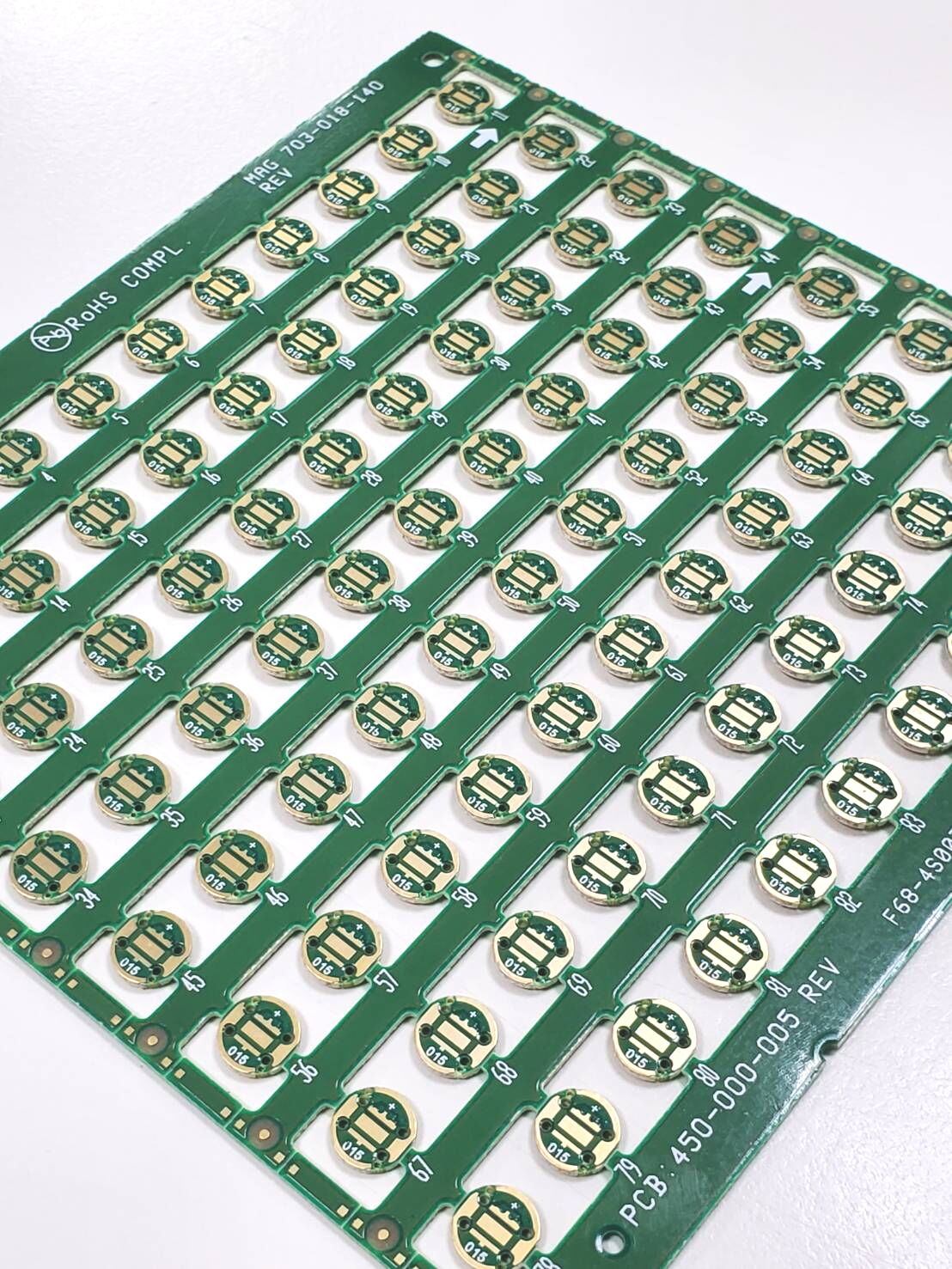

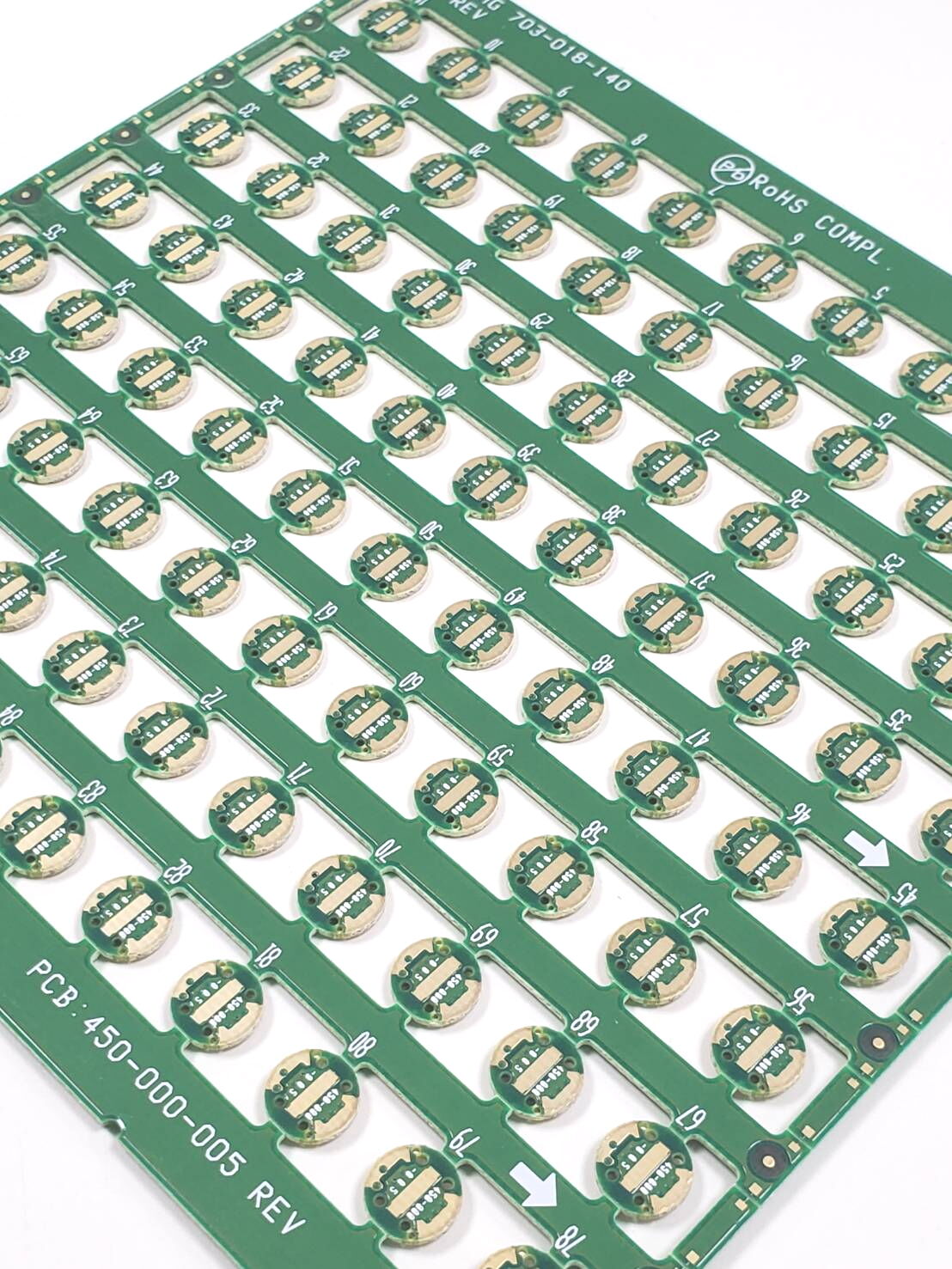

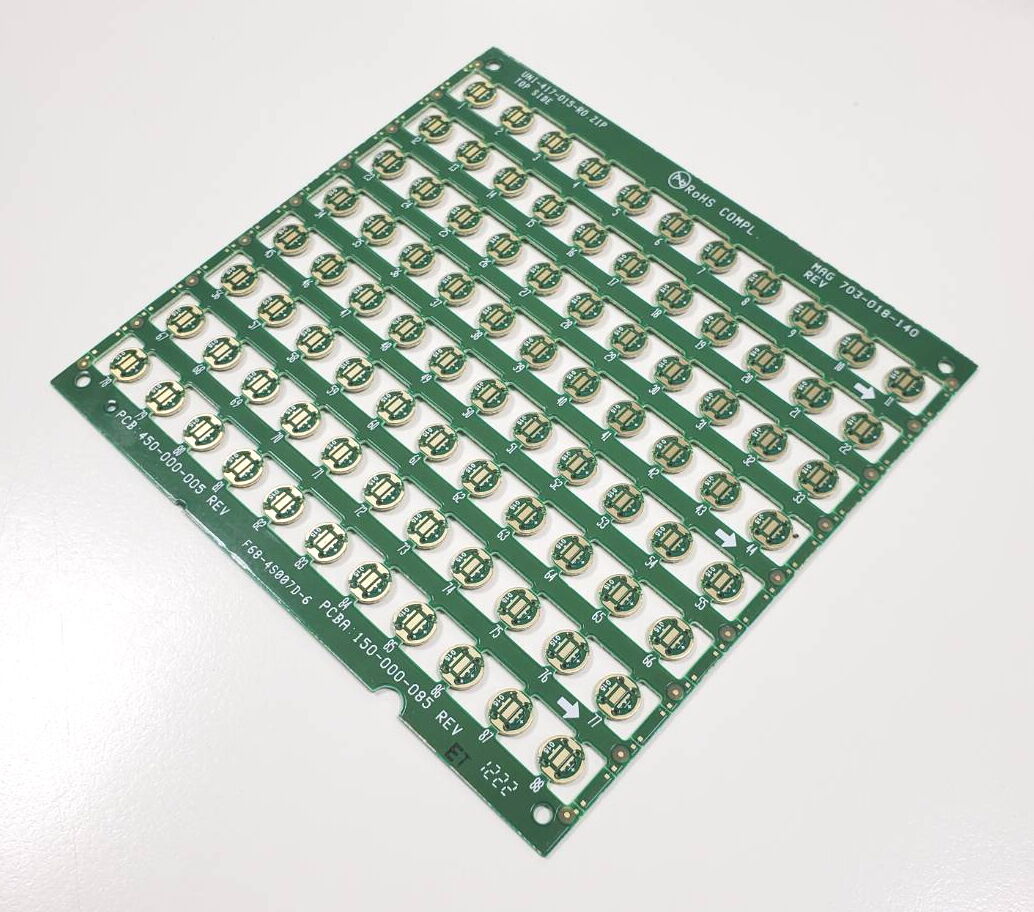

- 4L HDI PCB by Panel Array with FR4 Base Material and 1.0mm Thickness, LPI(Green), Blind Vivs L1-L2
- Board Material Type: FR4(TG170)
- Number of Layers: 4L
- Board Thickness: 0.049 inch
- Surface Treatment: immersion gold(3u")
- Mini. Line Width/Distance:
PRODUCT DETAILS
Key Specifications/ Special Features:
- Number of layers: Four layers
- Base material: FR4(TG170)
- Thickness: 0.049 inch
- Copper thickness: 2oz Cu
- Size: Dia. 0.324 inch
- 88 pcs/PNL/5.20 x 5.425 inch
- Surface finishing: immersion gold(3u")
- Solder mask: Green
- Legend: White
- Blind Vivs L1-L2
- ••Electric test voltage: 150V
- •Compliant with RoHS Directive
<<Please Note>>
Kindly be informed that our production is always accorded to the file (100% provided from the customers).
So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.
Thanks!!
