10L HDI PCB, FR4(TG170), 1oz Cu,LPI, Immersion Gold(2u"), Impedance control

Home/ Products/ 10L HDI PCB, FR4(TG170), 1oz Cu,LPI, Immersion Gold(2u"), Impedance control

10L HDI PCB, FR4(TG170), 1oz Cu,LPI, Immersion Gold(2u"), Impedance control: Board Material Type: FR4(TG150); Number of Layers: 10L; Board Thickness: 1.55mm; Surface Treatment: Immersion Gold(2u"); Mini. Line Width/Distance:

PRODUCT DETAILS

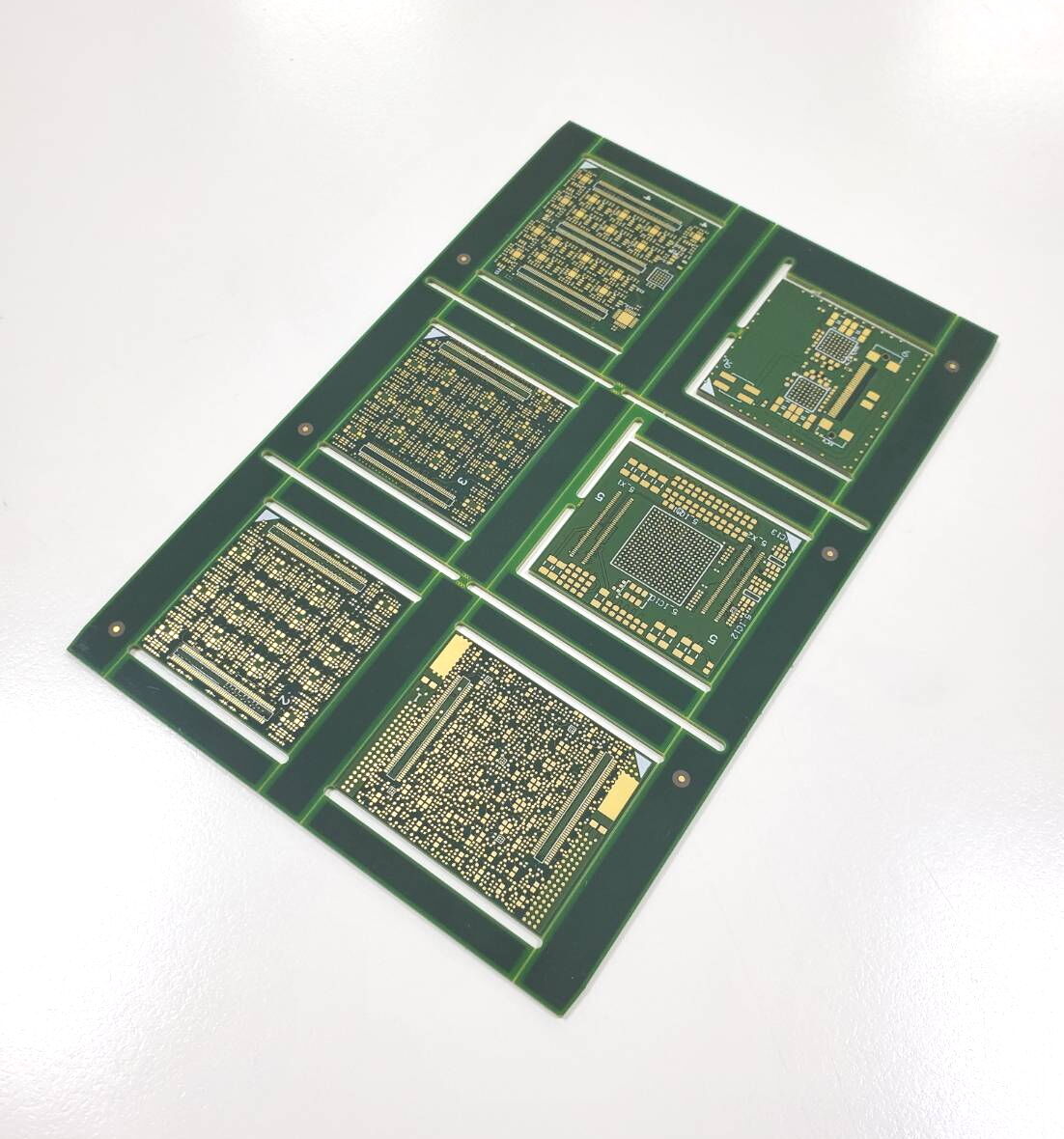

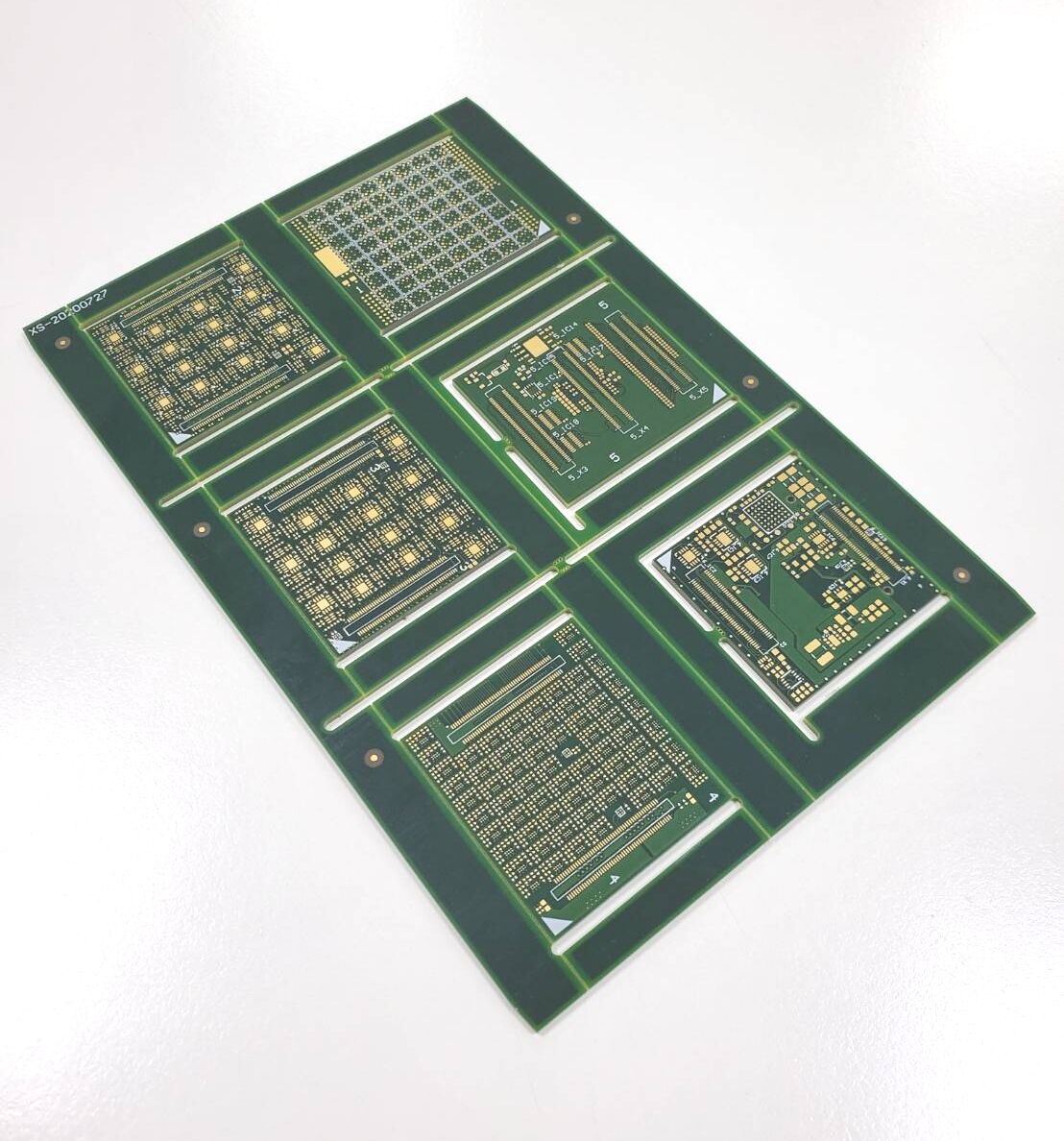

Key Specifications/ Special Features:

Number of layers: Ten layers

• Base material: FR4(TG150)

• Thickness: 1.55mm

• Copper thickness: 1oz Cu

• 6 pcs/PNL/106.40 x 158.40mm

• Solder mask: Green

• Legend: White

• Immersion Gold(2u")

• Blind vias L1-L2/L9-L10(copper Filled)

• Buried via L2-L3/L2-L9/L8-L9(Resin Filled)

• Impedance control(50ohm for L4 & L7/L9 for 85um tracks)

<<Please Note>>

Kindly be informed that our production is always accorded to the file (100% provided from the customers).

So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.

Thanks!!
