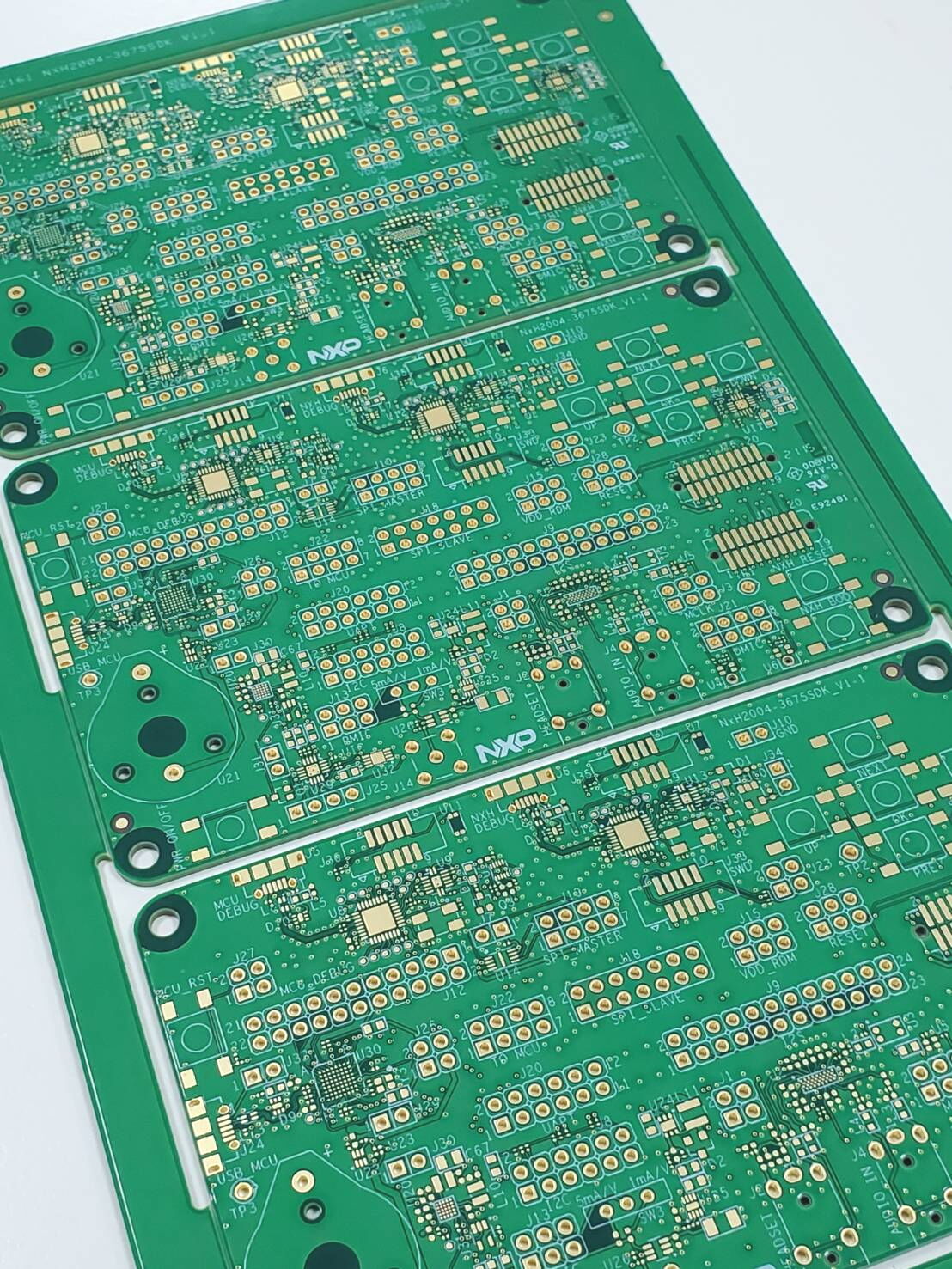

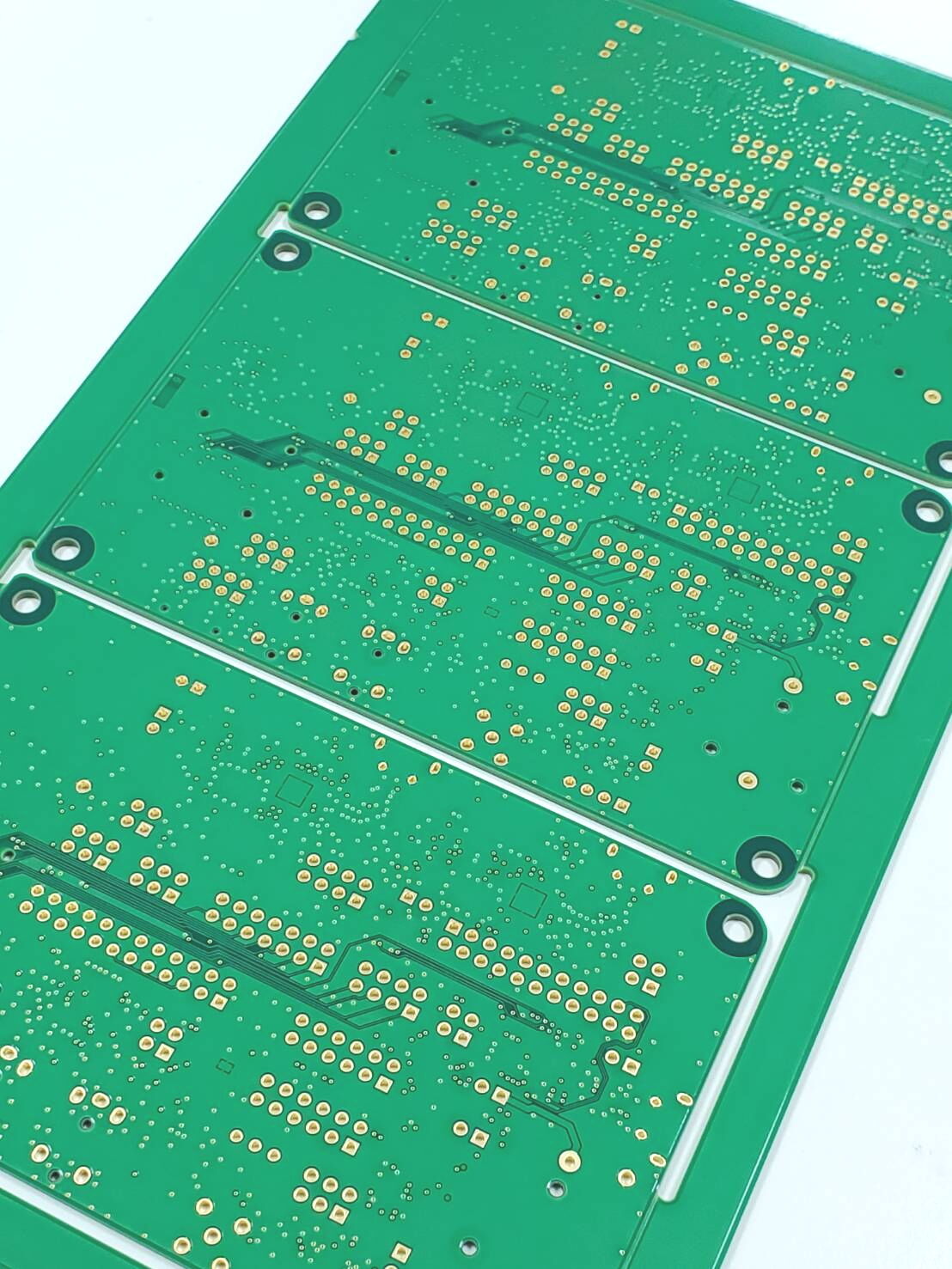

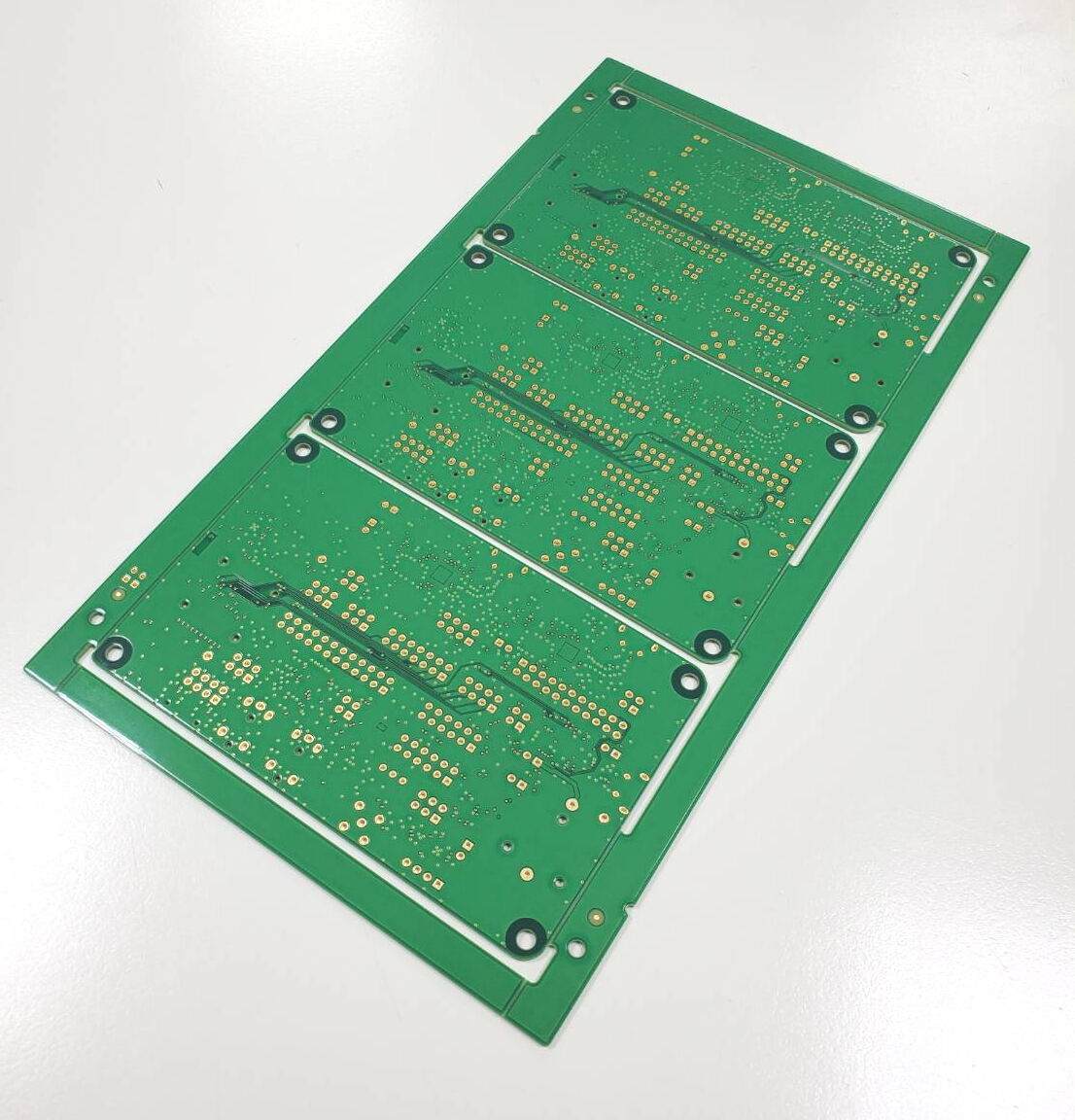

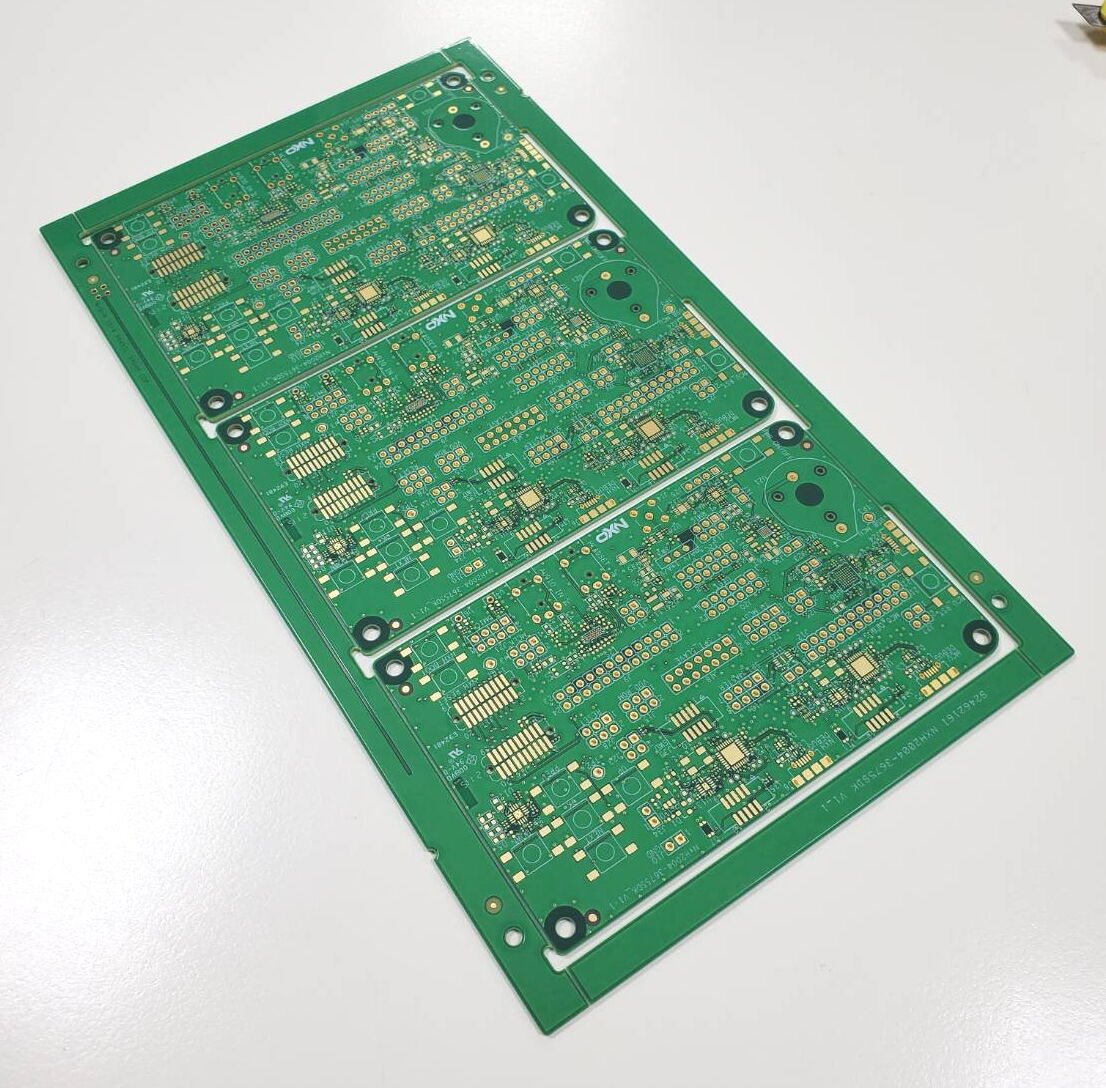

6L HDI PCB, FR4(TG175), 1oz Cu, LPI(Green), Immersion Gold(2u"),Impedance control

Home/ Products/ 6L HDI PCB, FR4(TG175), 1oz Cu, LPI(Green), Immersion Gold(2u"),Impedance control

6L HDI PCB, FR4(TG175), 1oz Cu, LPI(Green), Immersion Gold(2u"),Impedance control: Board Material Type: FR4(TG175); Number of Layers: 6L; Board Thickness: 1.6mm; Surface Treatment: Immersion Gold(2u"); Mini. Line Width/Distance:

PRODUCT DETAILS

Key Specifications/ Special Features:

Number of layers: Six layers

• Base material: FR4(TG175)

• Thickness: 1.60mm

• Copper thickness: 1oz Cu

• size: 115 x 72mm

• 3 pcs/PNL/135 x 240mm

• Solder mask: Green

• Legend: White

• Immersion Gold(2u")

• Blind vias L1-L2

• Buried via L2-L3

• Resin Filled

• Impedance control

<<Please Note>>

Kindly be informed that our production is always accorded to the file (100% provided from the customers).

So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.

Thanks!!
