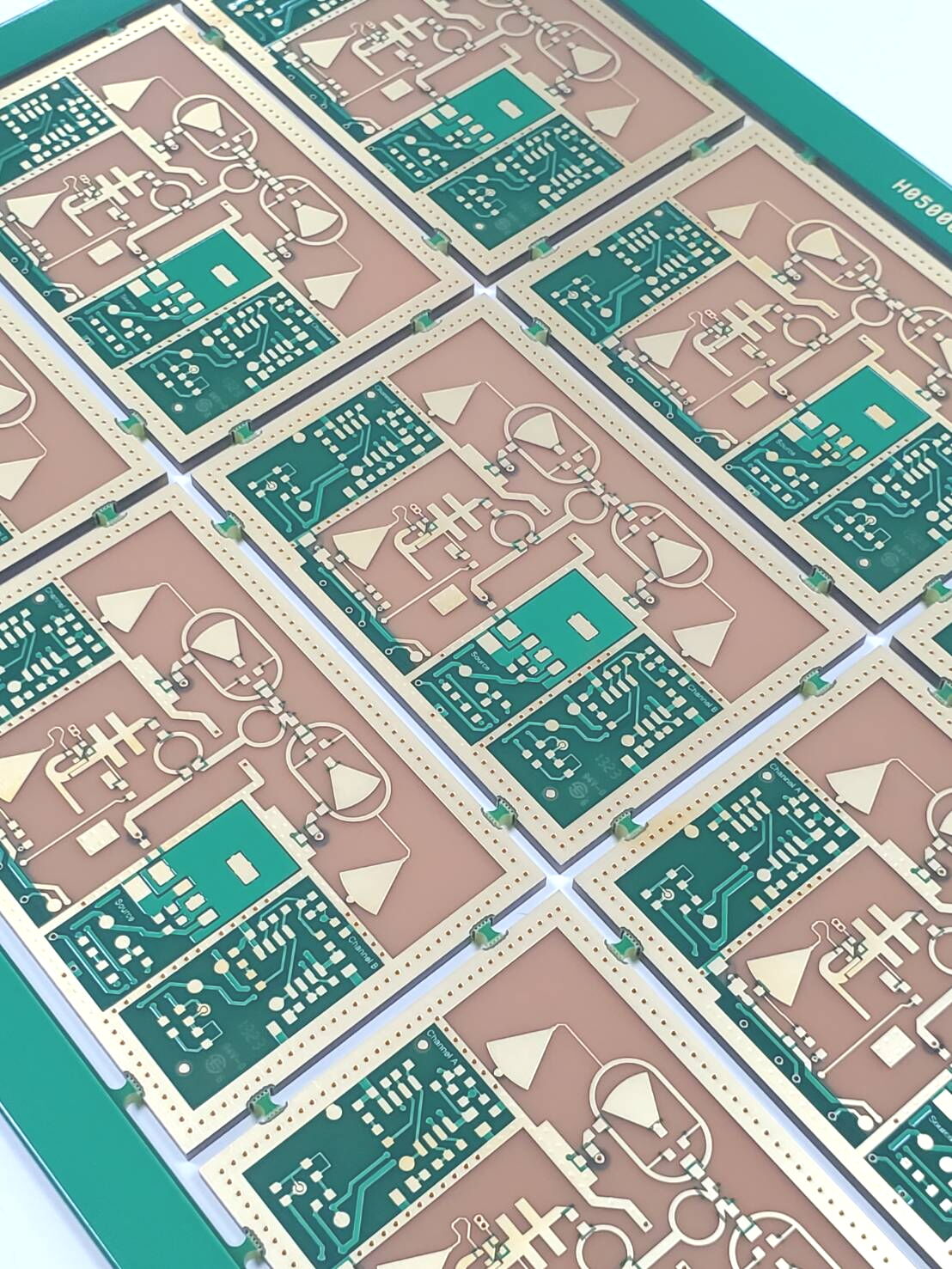

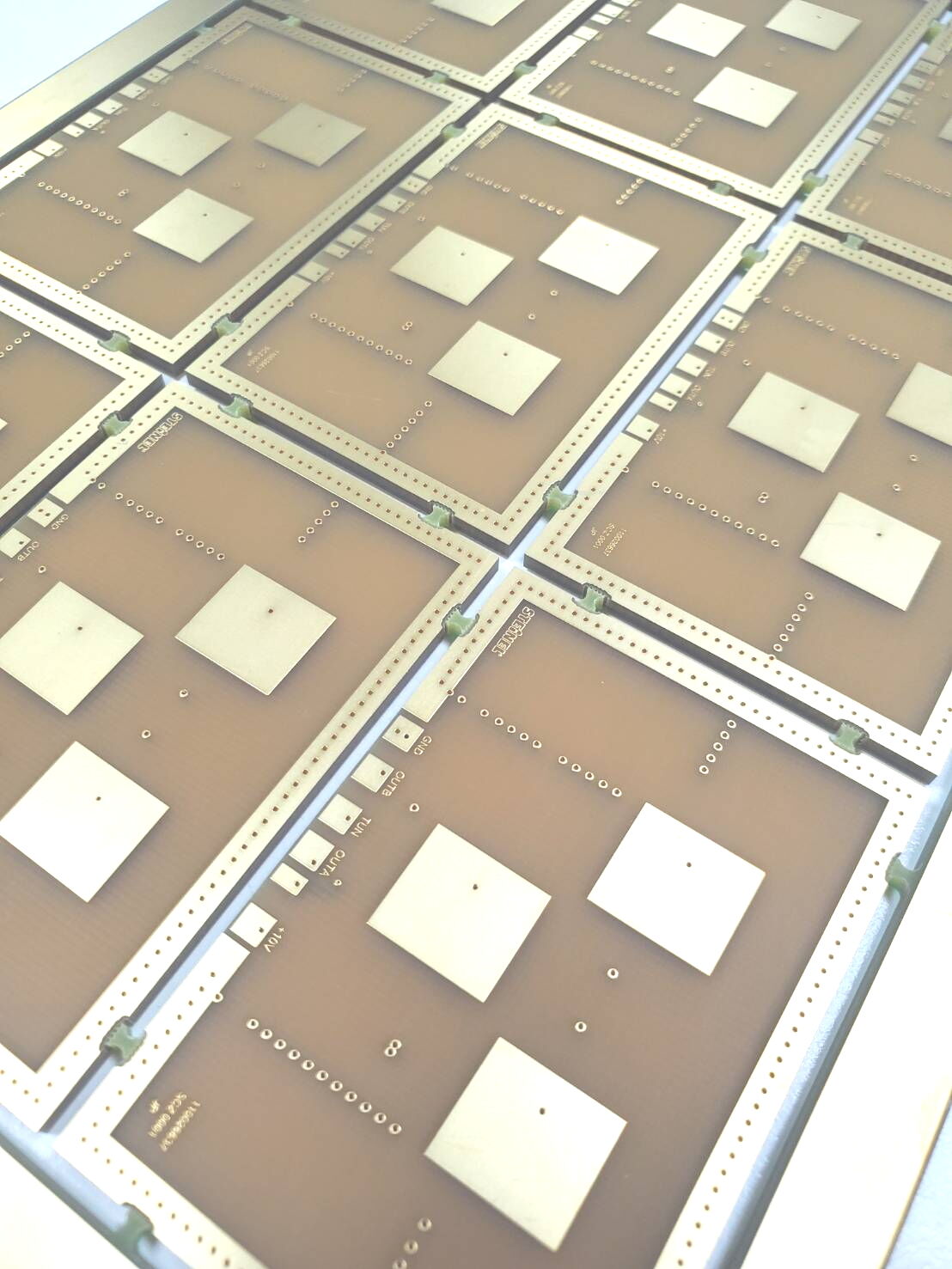

4L HDI PCB, Isola DE104 material, 2.3mm Thickness, 1/0.5/1/1oz Cu, LPI, Immersion Gold(2u")

Home/ Products/ 4L HDI PCB, Isola DE104 material, 2.3mm Thickness, 1/0.5/1/1oz Cu, LPI, Immersion Gold(2u")

4L HDI PCB, Isola DE104 material, 2.3mm Thickness, 1/0.5/1/1oz Cu, LPI, Immersion Gold(2u"): Board Material Type: Isola DE104; Number of Layers: Four layers; Board Thickness: 2.3mm; Surface Treatment: Immersion gold(2u"); Mini. Line Width/Distance:

PRODUCT DETAILS

Key Specifications/ Special Features:

Number of layers: Four layers

•Base material: Isola DE104

•Thickness: 2.3mm

•Copper thickness: 1/0.5/1/1oz Cu

•Size: 70x48mm

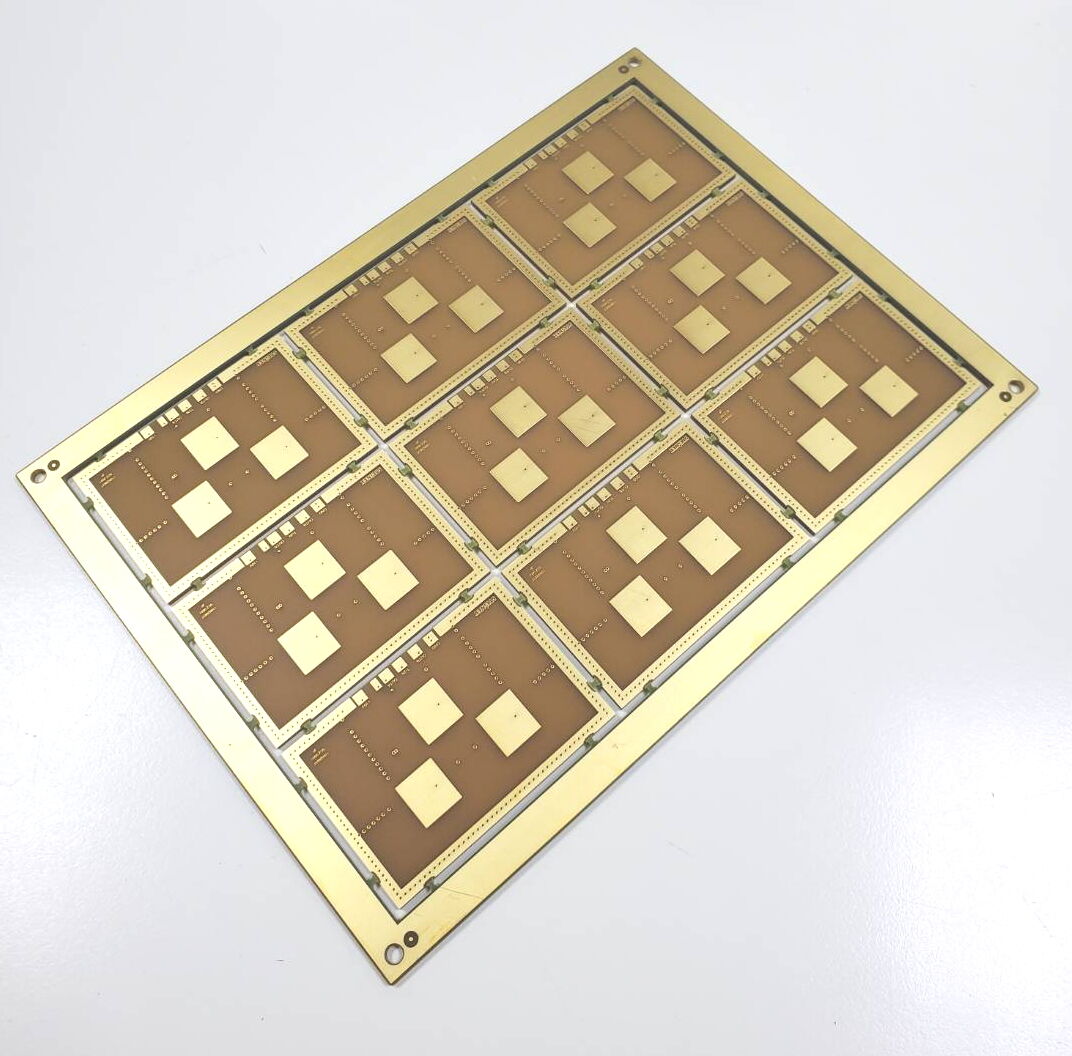

•9pcs/PNL/238x172mm

•Solder mask: Green(TOP)

•Surface finishing: Immersion gold(2u")

•Blind vias: L1-L2

•Compliant with RoHS Directive

<<Please Note>>

Kindly be informed that our production is always accorded to the file (100% provided from the customers).

So, if you have any request of PCB, please provide your completed file & quantity demand for our checking and quotation.

Thanks!!
