Home/ Products/ Thin-Film Capacitive Aluminum Nitride Ceramic Substrate

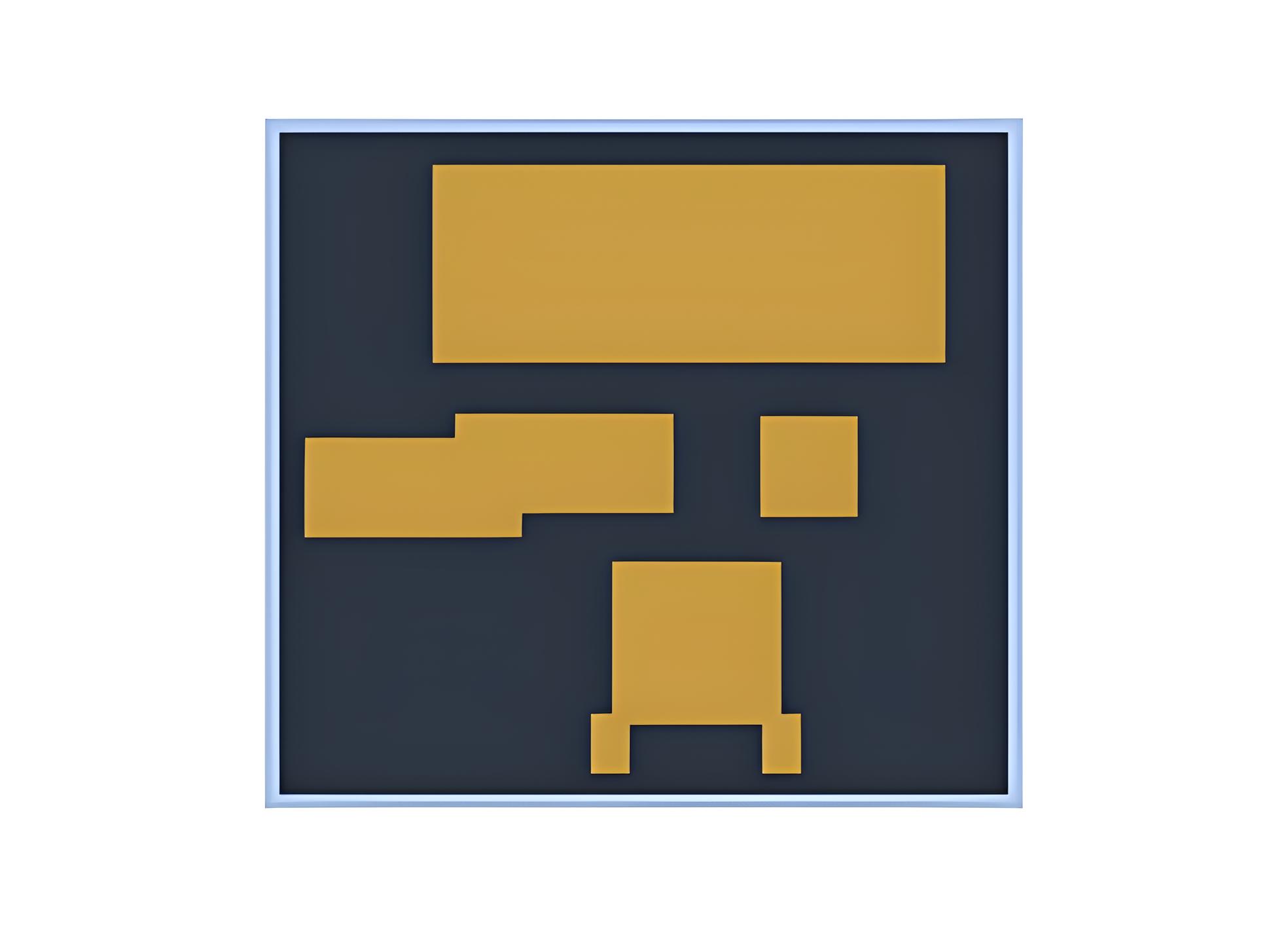

- Thin-Film Capacitive Aluminum Nitride Ceramic Substrate
- Board Material Type: Ceramic Substrate
- Number of Layers: Single-Sided
- Board Thickness: 0.4mm
- Surface Treatment: Immersion Gold
- Mini. Line Width/Distance: 0.15±0.005mm/0.07±0.005mm
PRODUCT DETAILS
Base Material: Aluminum Nitride
Board Thickness: 0.4mm
Min. Line Width/Line Distance: 0.15±0.005mm/0.07±0.005mm
Surface Treatment: Front Side: Au≥1.0μm; Back Side: Au≥0.5μm;
Application: Capacitors
Process: Min. line width 30μm, accurate etching thick gold
